Ultrasound module HC-SR04+ 3.3-5VDC Dist.meas.range: 0.02÷2m
SKU:OKY3261-1
Manufacturer:Okystar
TOP

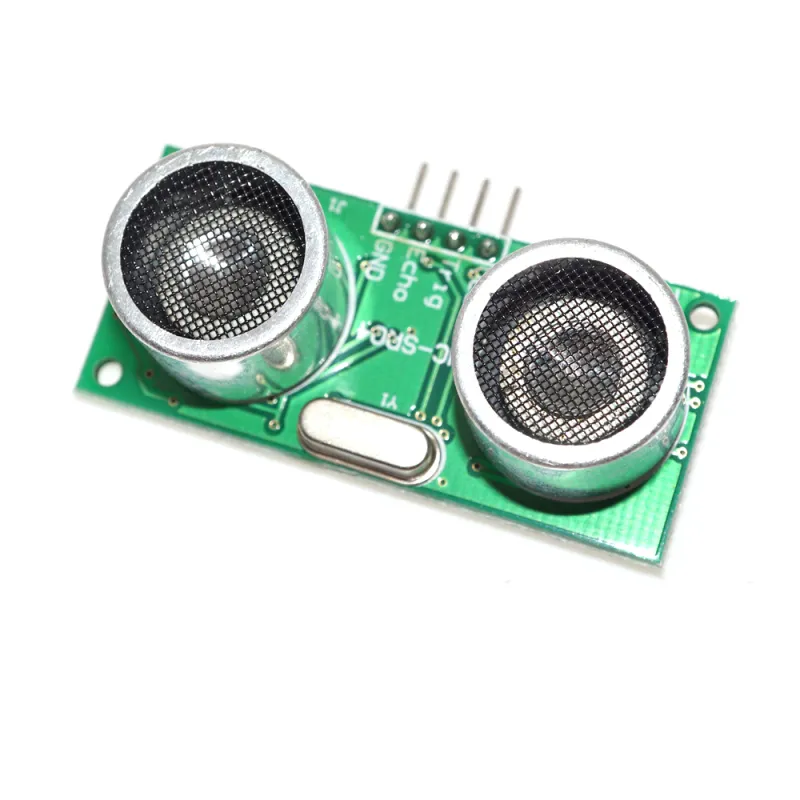

Image is for illustrative purposes only
The OKYSTAR distance sensor provides reliable ultrasonic distance measurements, making it suitable for various integration projects.
General Information
- Manufacturer: OKYSTAR
- Type of sensor: distance
- Kind of sensor: ultrasonic
Electrical Characteristics
- Supply voltage: 3.3...5V DC
Measurement Capabilities
- Distance measurement range: 0.02...2m
- Measurement frequency: 40kHz
Physical Dimensions
- Dimensions: 45x20mm
Important Note
- Product is not a working device, but only a component
General Information
- Manufacturer: OKYSTAR
- Type of sensor: distance
- Kind of sensor: ultrasonic
Electrical Characteristics
- Supply voltage: 3.3...5V DC
Measurement Capabilities
- Distance measurement range: 0.02...2m
- Measurement frequency: 40kHz
Physical Dimensions
- Dimensions: 45x20mm
Important Note
- Product is not a working device, but only a component
Dimensions: 45x20x15 mm
Measurement Resolution: 3 mm
Operating Current: <2 mA
Operating Frequency: 40 kHz
Operating Voltage: 3.3-5 VDC
Output Signal: TTL PWL signal
Ranging Distance at 3.3V: 0.02-4 m
Ranging Distance at 5V: 0.02-4.5 m
Sensor Angle: <= 15 degrees
Static Current: Less than 2mA
Trigger Pulse Width: >= 10 uSec
Weight: 10 g
Working Temperature: -20-80 ℃
Measurement Resolution: 3 mm
Operating Current: <2 mA
Operating Frequency: 40 kHz
Operating Voltage: 3.3-5 VDC
Output Signal: TTL PWL signal
Ranging Distance at 3.3V: 0.02-4 m
Ranging Distance at 5V: 0.02-4.5 m
Sensor Angle: <= 15 degrees
Static Current: Less than 2mA
Trigger Pulse Width: >= 10 uSec
Weight: 10 g
Working Temperature: -20-80 ℃
-
