DC/DC step-up power module 10-32V/12-35V 10A 200W
SKU:OKY3498-3
Manufacturer:Okystar

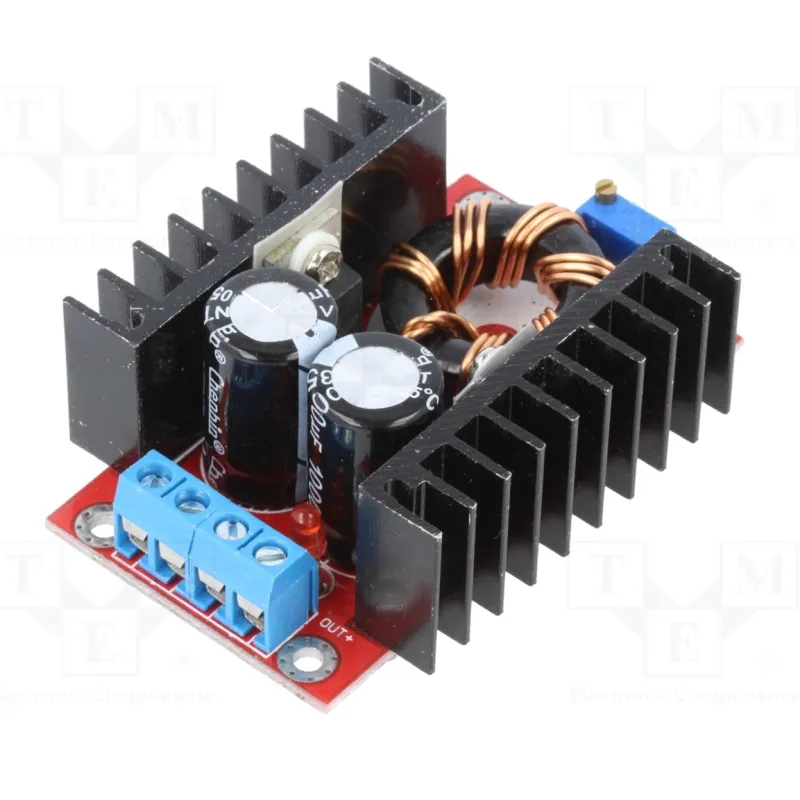

Image is for illustrative purposes only
The OKY3498-3 is a high-performance DC/DC step-up (boost) power module designed to convert a lower DC voltage to a higher DC voltage, providing a reliable and adjustable power source for a wide range of applications. It delivers stable power for your projects, ensuring optimal performance.
General Information
The OKY3498-3 is a versatile step-up power module perfectly suited for diverse DIY projects, electronic applications, and powering devices that demand a higher voltage than your available power source.
It allows you to precisely adjust the output voltage between 12V and 35V from an input voltage between 10V and 32V.
Key Features
- Adjustable Output Voltage: The output voltage can be easily adjusted using a potentiometer, offering exceptional flexibility for various applications.
- High Efficiency: Boasts a conversion efficiency of up to 94%, minimizing power loss and maximizing energy utilization during the voltage conversion process.
- Thermal Management: Engineered to operate effectively within an industrial temperature range; however, for temperatures exceeding 40°C, we recommend additional cooling to ensure continued optimal performance.
- Over Current Protection: Incorporates robust protection mechanisms to safeguard against damage from excessive current draw, ensuring the longevity of the module.
Applications and Benefits
- DIY Projects: An excellent choice for hobbyists and electronics enthusiasts seeking to power devices with specific and often higher voltage requirements.
- Mobile Power: Ideal for mobile applications, efficiently boosting voltage from batteries to power devices that require higher voltages, extending operational time.
- LED Lighting: Perfectly suited for driving high-power LEDs that demand a higher voltage than the available power source, enabling brighter and more efficient lighting solutions.
- Powering Electronic Devices: A versatile solution for powering a wide array of electronic devices in situations where increasing the available voltage is necessary, ensuring compatibility and optimal operation.
Important Considerations
When operating the module at high currents (above 10A), enhancing the heatsink is recommended to maintain stable and reliable operation.
This module is designed as a component and is intended for use by specialists with a solid understanding of electronics assembly and usage.
Incorrect use may result in damage and will void the warranty.
General Information
The OKY3498-3 is a versatile step-up power module perfectly suited for diverse DIY projects, electronic applications, and powering devices that demand a higher voltage than your available power source.
It allows you to precisely adjust the output voltage between 12V and 35V from an input voltage between 10V and 32V.
Key Features
- Adjustable Output Voltage: The output voltage can be easily adjusted using a potentiometer, offering exceptional flexibility for various applications.
- High Efficiency: Boasts a conversion efficiency of up to 94%, minimizing power loss and maximizing energy utilization during the voltage conversion process.
- Thermal Management: Engineered to operate effectively within an industrial temperature range; however, for temperatures exceeding 40°C, we recommend additional cooling to ensure continued optimal performance.
- Over Current Protection: Incorporates robust protection mechanisms to safeguard against damage from excessive current draw, ensuring the longevity of the module.
Applications and Benefits
- DIY Projects: An excellent choice for hobbyists and electronics enthusiasts seeking to power devices with specific and often higher voltage requirements.
- Mobile Power: Ideal for mobile applications, efficiently boosting voltage from batteries to power devices that require higher voltages, extending operational time.
- LED Lighting: Perfectly suited for driving high-power LEDs that demand a higher voltage than the available power source, enabling brighter and more efficient lighting solutions.
- Powering Electronic Devices: A versatile solution for powering a wide array of electronic devices in situations where increasing the available voltage is necessary, ensuring compatibility and optimal operation.
Important Considerations
When operating the module at high currents (above 10A), enhancing the heatsink is recommended to maintain stable and reliable operation.
This module is designed as a component and is intended for use by specialists with a solid understanding of electronics assembly and usage.
Incorrect use may result in damage and will void the warranty.
Conversion Efficiency: 80-94%
Full-Load Temperature: 45°C
Input Current: 16A (MAX)
Input Voltage: 10-32V DC
No-Load Current: 25mA typical
Output Current: 10A (MAX)
Output Power: 100W (MAX) natural cooling, 150W (MAX) with strengthened cooling
Output Voltage: 12-35V DC (adjustable)
Switching Frequency: 150 kHz
Voltage Regulation: ± 0.5%
Working Temperature: -40°C to +85°C
Full-Load Temperature: 45°C
Input Current: 16A (MAX)
Input Voltage: 10-32V DC
No-Load Current: 25mA typical
Output Current: 10A (MAX)
Output Power: 100W (MAX) natural cooling, 150W (MAX) with strengthened cooling
Output Voltage: 12-35V DC (adjustable)
Switching Frequency: 150 kHz
Voltage Regulation: ± 0.5%
Working Temperature: -40°C to +85°C
-
