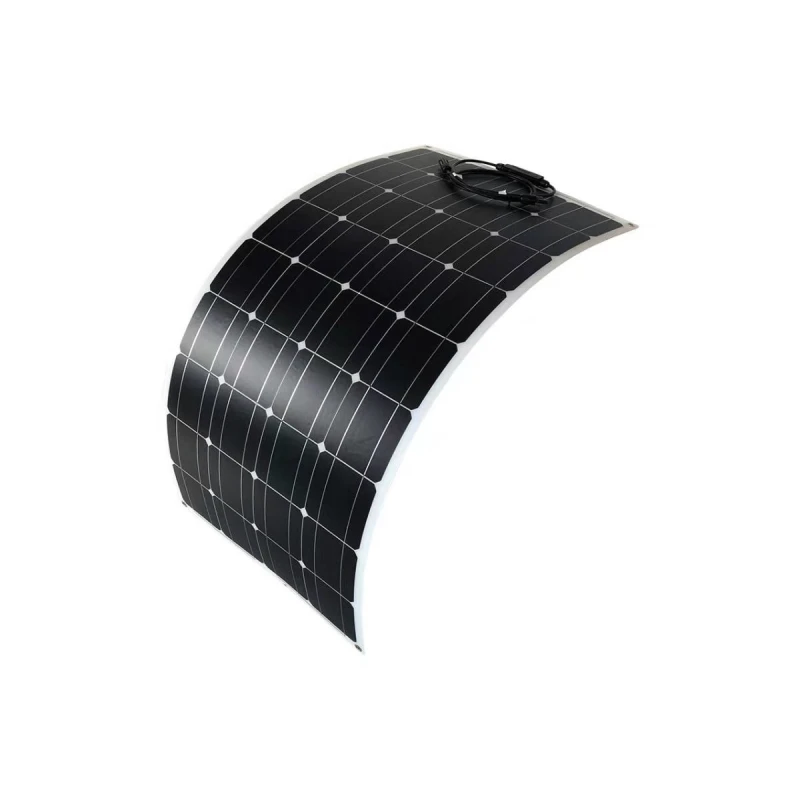

Flexible Monocrystalline Solar Panel 140W 18.72V 7.48A 1090x70mm

Flexible Monocrystalline Solar Panel 140W 18.72V 7.48A 1090x70mm

Technical Specifications:

Maximum Power Pmax (W): 140W

Tolerance (%): ± 3%

Open Circuit Voltage Voc (V): 22.46

Voltage at Maximum Power Vmp (V): 18.72

Current at Maximum Power Imp (A): 7.48

Short Circuit Current Isc (A): 8.08

Module Efficiency (%): 18.3%

Solar Cell Efficiency (%): 22%

Nominal Fuse Current (A): 10

Protection Class: IP65

Maximum System Voltage (V): DC 1000

Operating Temperature Range: -40°C to +85°C

Dimensions: 700 × 1090 × 3 mm

Weight: 3.6 kg
