SKU:53666

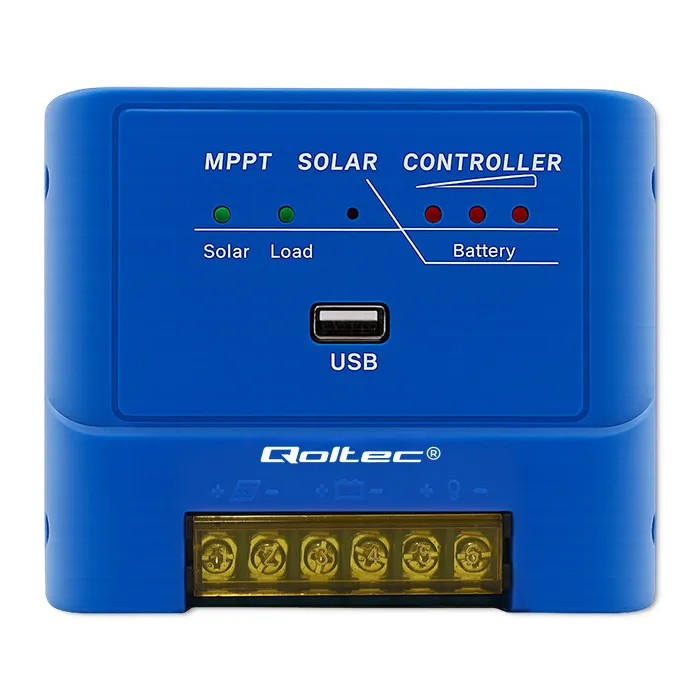

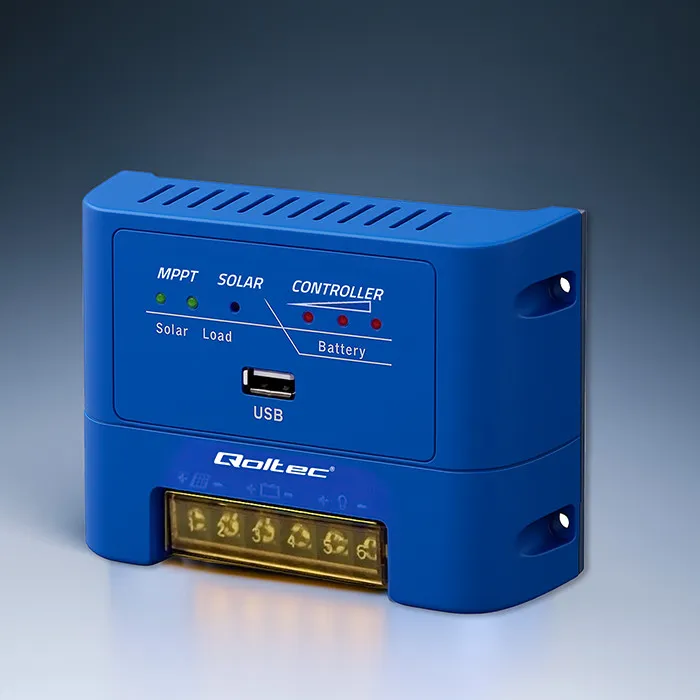

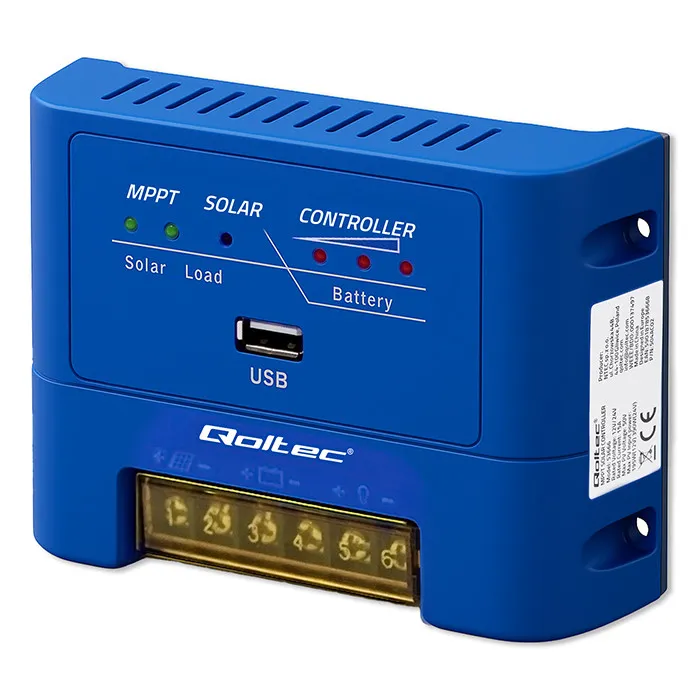

The Qoltec MPPT solar charge controller is a sophisticated device designed to optimize energy harvesting from your photovoltaic panels. Utilizing Maximum Power Point Tracking (MPPT) technology, it continuously monitors and adjusts voltage and current levels to ensure the highest possible power output, even during challenging conditions like partial shading or changing sunlight intensity. This makes it an ideal solution for those looking to maximize the efficiency of their solar installation.

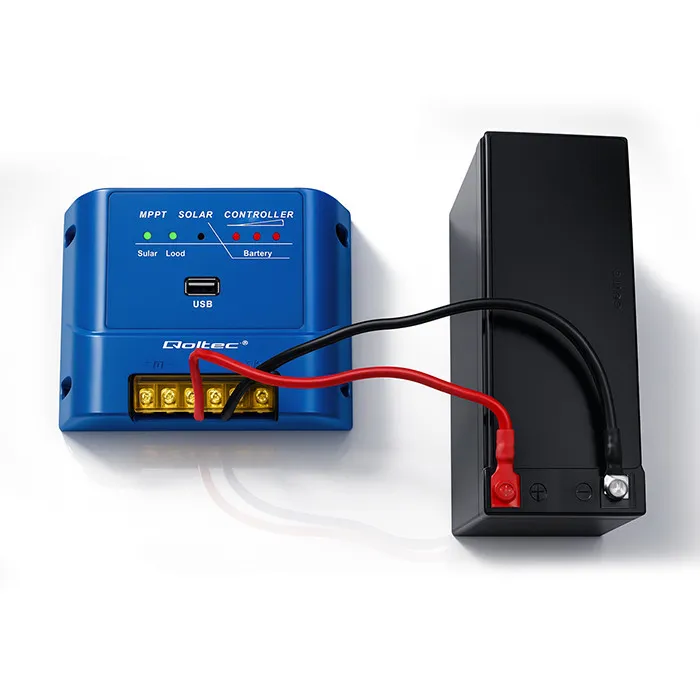

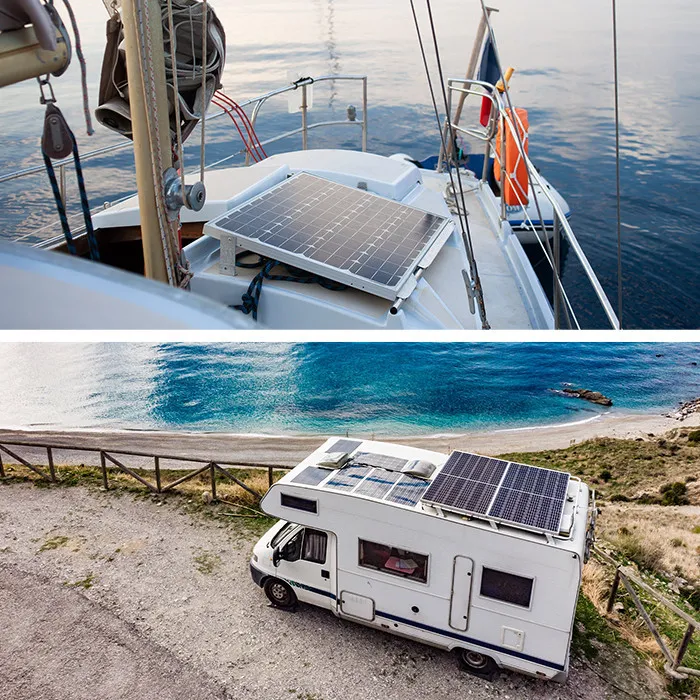

Whether you are on a boat, in an RV, or managing a remote off-grid system, this controller provides complete independence from the stationary power grid. It is fully compatible with AGM, GEL, and LiFePO4 batteries, ensuring safe and precise charging that extends battery life. The device features automatic voltage recognition for 12V and 24V systems, allowing for a seamless setup that adapts to your specific needs.

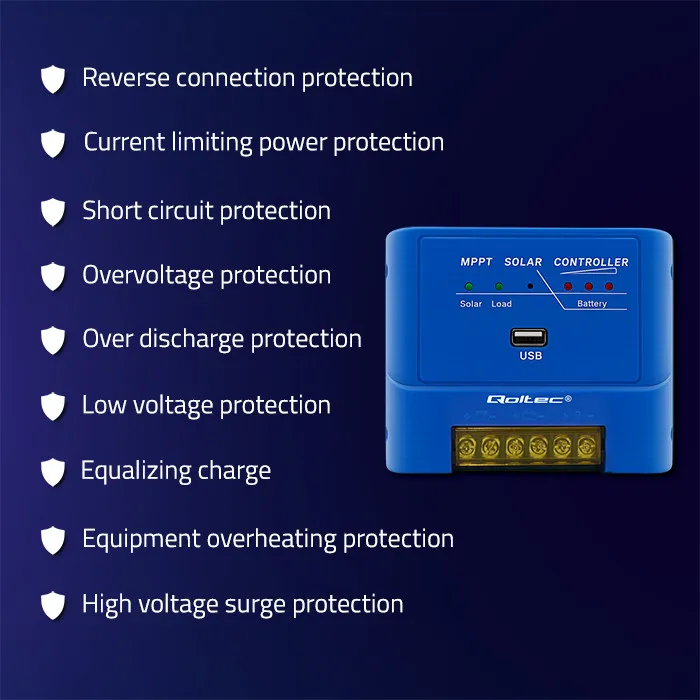

Safety is integrated into every aspect of the design. The controller is equipped with advanced protection mechanisms against short-circuits, overheating, overloading, and reverse polarity. Additionally, a built-in USB port allows for convenient charging of mobile devices, while the robust construction ensures reliable performance in temperatures ranging from -35°C up to +55°C.
Whether you are on a boat, in an RV, or managing a remote off-grid system, this controller provides complete independence from the stationary power grid. It is fully compatible with AGM, GEL, and LiFePO4 batteries, ensuring safe and precise charging that extends battery life. The device features automatic voltage recognition for 12V and 24V systems, allowing for a seamless setup that adapts to your specific needs.
Safety is integrated into every aspect of the design. The controller is equipped with advanced protection mechanisms against short-circuits, overheating, overloading, and reverse polarity. Additionally, a built-in USB port allows for convenient charging of mobile devices, while the robust construction ensures reliable performance in temperatures ranging from -35°C up to +55°C.
Producer: Qoltec

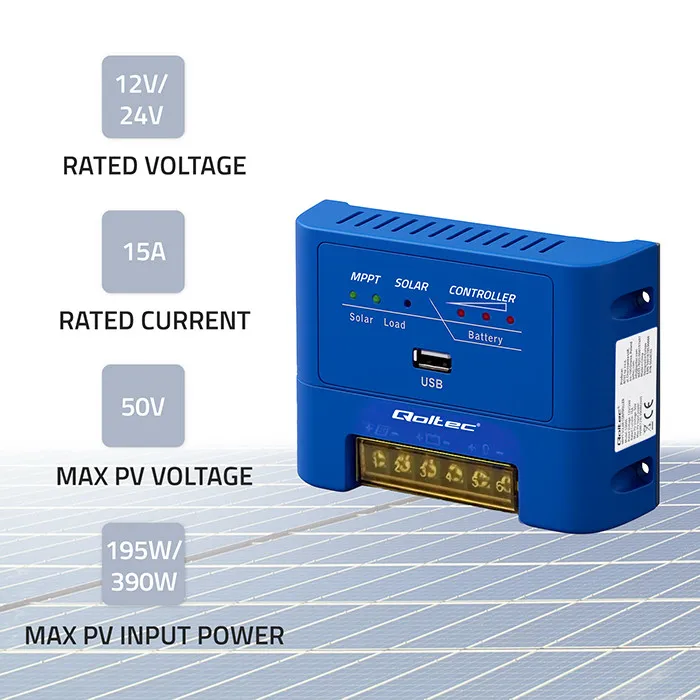

Maximum power: 195W for PV 12V | 390W for PV 24V
Rated voltage: 12/24V
Rated current: 15A
Maximum PV array open circuit voltage: <100V
MPPT efficiency: 99%
Battery type: Compatible with AGM, GEL, LiFePO4
Safety: Short-circuit protection, Overheating protection, Overload protection, Overcharge protection
Usage: Home photovoltaic systems, Portable solar kits, Solar systems in RVs and caravans, Solar installations on boats and yachts
Additional information: USB output (5V/1A), Connectors 12AWG/4mm²
IP rating: IP30
Operating temperature: -35˚C ~ +55˚C
Storage temperature: -30˚C to +80˚C
Colour: Blue

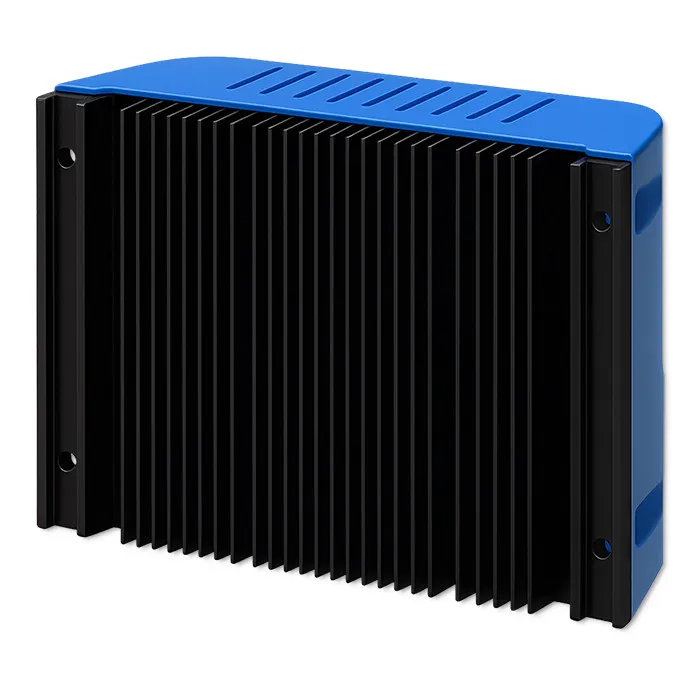

Material: ABS, metal
Dimensions: 130 x 100 x 33mm
Net weight: 0.287 kg
Gross weight: 0.326 kg
Certificate: CE
Maximum power: 195W for PV 12V | 390W for PV 24V
Rated voltage: 12/24V
Rated current: 15A
Maximum PV array open circuit voltage: <100V
MPPT efficiency: 99%
Battery type: Compatible with AGM, GEL, LiFePO4
Safety: Short-circuit protection, Overheating protection, Overload protection, Overcharge protection
Usage: Home photovoltaic systems, Portable solar kits, Solar systems in RVs and caravans, Solar installations on boats and yachts
Additional information: USB output (5V/1A), Connectors 12AWG/4mm²
IP rating: IP30
Operating temperature: -35˚C ~ +55˚C
Storage temperature: -30˚C to +80˚C
Colour: Blue
Material: ABS, metal
Dimensions: 130 x 100 x 33mm
Net weight: 0.287 kg
Gross weight: 0.326 kg
Certificate: CE
