CAT 6A Patch Cable, S/FTP (PiMF), red, 0.5 m
SKU:93663-GBY
Manufacturer:Goobay
New
Image is for illustrative purposes only
Product Overview

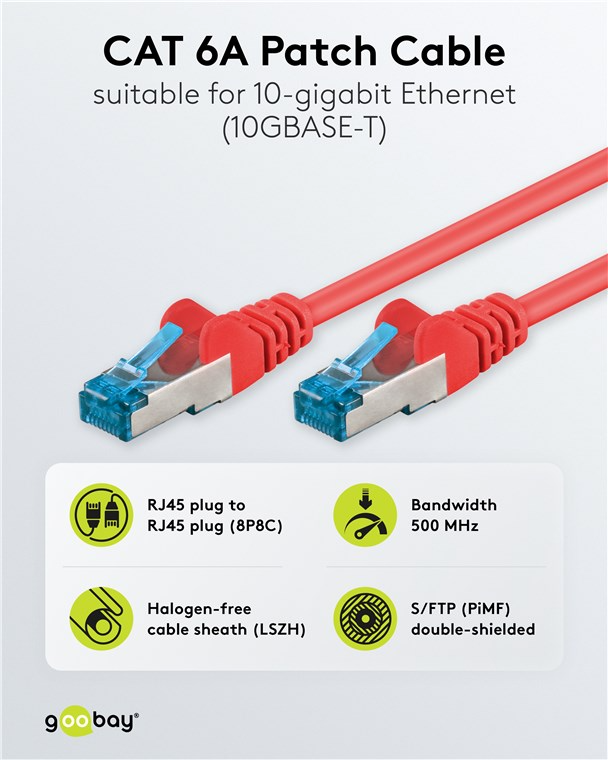

This high-quality Goobay CAT 6A patch cord is engineered for high-performance 10 Gigabit Ethernet networks, delivering reliable data transmission with a bandwidth of up to 500 MHz.
Key Features
- S/FTP double shielding (PiMF) combines individual foil-screened pairs and an overall copper braid for superior protection against electromagnetic interference and crosstalk.
- Low Smoke Zero Halogen (LSZH) outer jacket ensures compliance with fire safety standards for residential and office installations.

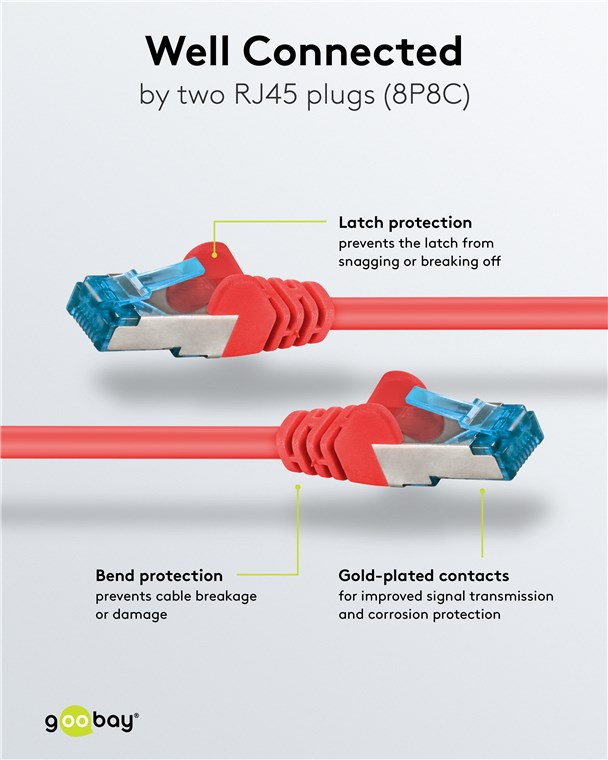

- RJ45 connectors feature gold-plated contacts to maintain consistent signal integrity and prevent corrosion.
- Integrated latch protection prevents damage to the connector clip during installation and cable routing.
- Fully compatible with Power over Ethernet (PoE and PoE+) for powering connected network devices.
Applications
With its high-speed capabilities and fire-safe LSZH construction, this cable is ideal for modern office infrastructures and residential networks requiring stable 10GbE connectivity and compliance with safety regulations.
This high-quality Goobay CAT 6A patch cord is engineered for high-performance 10 Gigabit Ethernet networks, delivering reliable data transmission with a bandwidth of up to 500 MHz.
Key Features
- S/FTP double shielding (PiMF) combines individual foil-screened pairs and an overall copper braid for superior protection against electromagnetic interference and crosstalk.
- Low Smoke Zero Halogen (LSZH) outer jacket ensures compliance with fire safety standards for residential and office installations.
- RJ45 connectors feature gold-plated contacts to maintain consistent signal integrity and prevent corrosion.
- Integrated latch protection prevents damage to the connector clip during installation and cable routing.
- Fully compatible with Power over Ethernet (PoE and PoE+) for powering connected network devices.
Applications
With its high-speed capabilities and fire-safe LSZH construction, this cable is ideal for modern office infrastructures and residential networks requiring stable 10GbE connectivity and compliance with safety regulations.

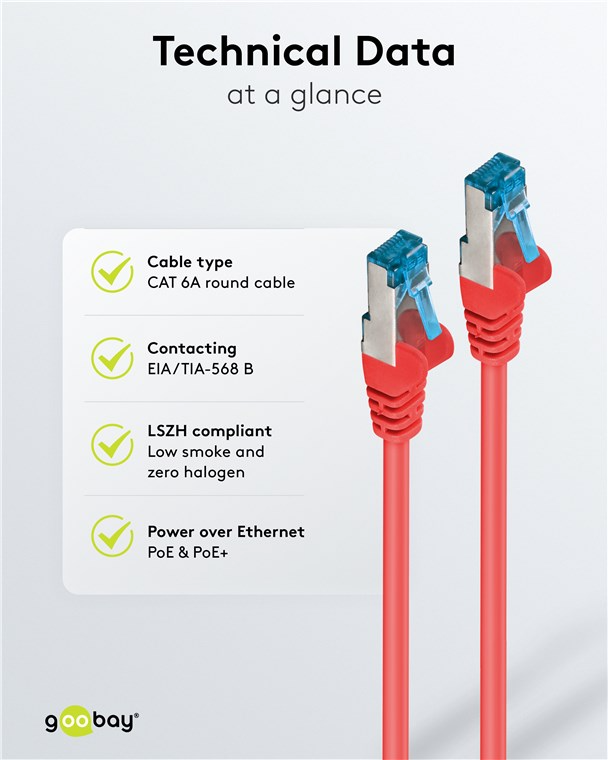

Brand: Goobay
SKU: 93663
Cable type: S/FTP (PiMF)
Category: CAT 6A
Length: 0.5 m
Color: Red
Inner conductor material: Copper (CU)
Conductor cross-section: AWG 27/7 (stranded)
Sheath material: LSZH (Low Smoke Zero Halogen)
Bandwidth: 500 MHz
Data transfer rate: 10 Gbit/s
Connection type: 2x RJ45 (8P8C)
Shielding: Individual pair shielding with foil (PiMF) + overall copper braiding
Cable sheath diameter: 5.9 mm
Features: Gold-plated contacts (3μ), latch protection (snagless), PoE/PoE+ support
Operating temperature: -20 °C ... 65 °C
SKU: 93663
Cable type: S/FTP (PiMF)
Category: CAT 6A
Length: 0.5 m
Color: Red
Inner conductor material: Copper (CU)
Conductor cross-section: AWG 27/7 (stranded)
Sheath material: LSZH (Low Smoke Zero Halogen)
Bandwidth: 500 MHz
Data transfer rate: 10 Gbit/s
Connection type: 2x RJ45 (8P8C)
Shielding: Individual pair shielding with foil (PiMF) + overall copper braiding
Cable sheath diameter: 5.9 mm
Features: Gold-plated contacts (3μ), latch protection (snagless), PoE/PoE+ support
Operating temperature: -20 °C ... 65 °C
-
