SKU:93658-GBY
Manufacturer:
Goobay
New
Image is for illustrative purposes only

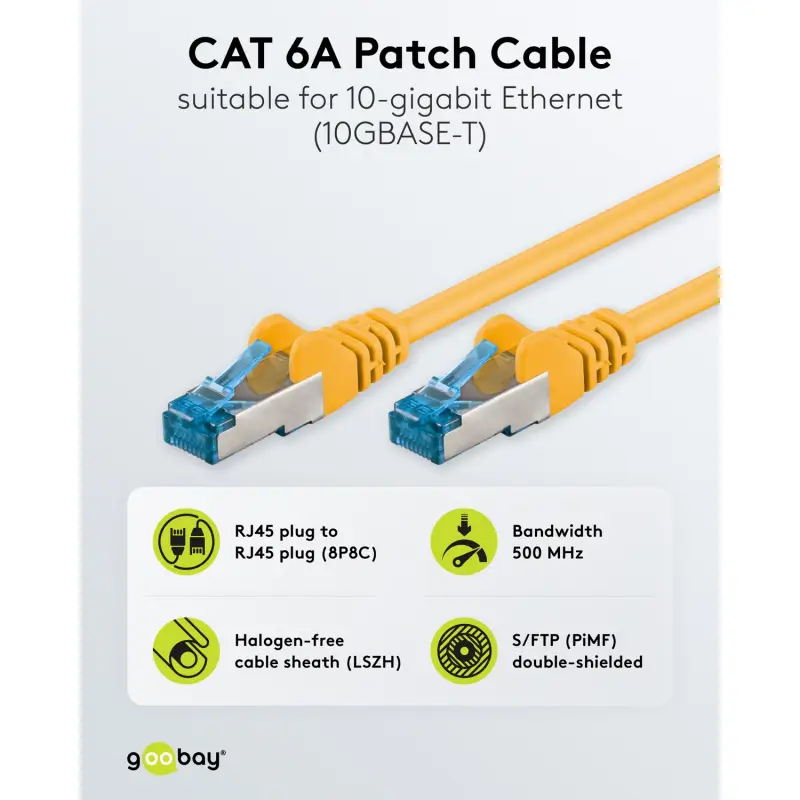

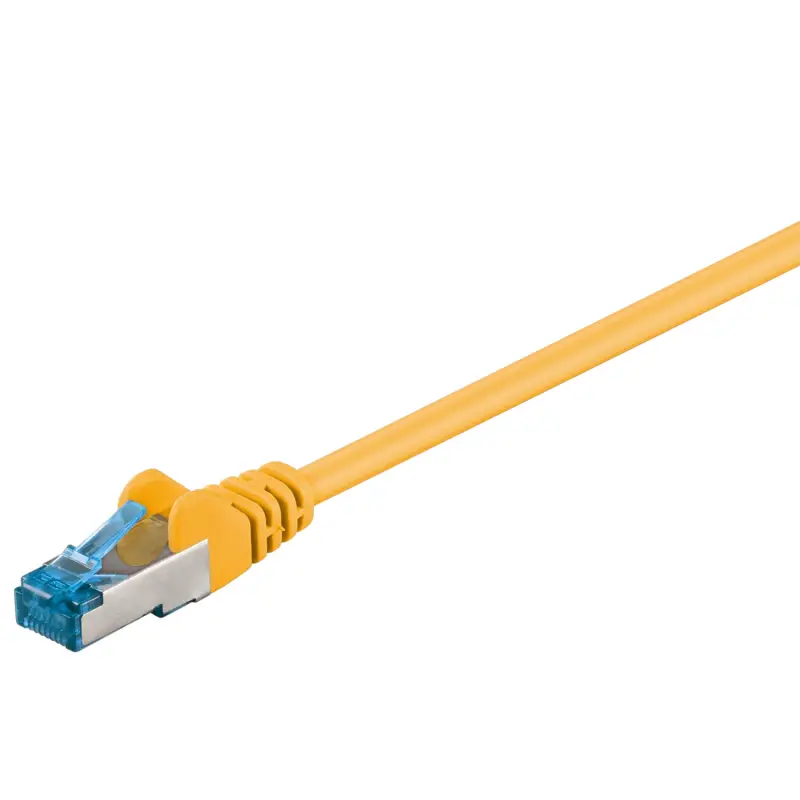

Goobay CAT 6A S/FTP patch cable designed for connecting network devices including PCs, laptops, routers, switches, smart TVs, gaming consoles, and NAS systems.

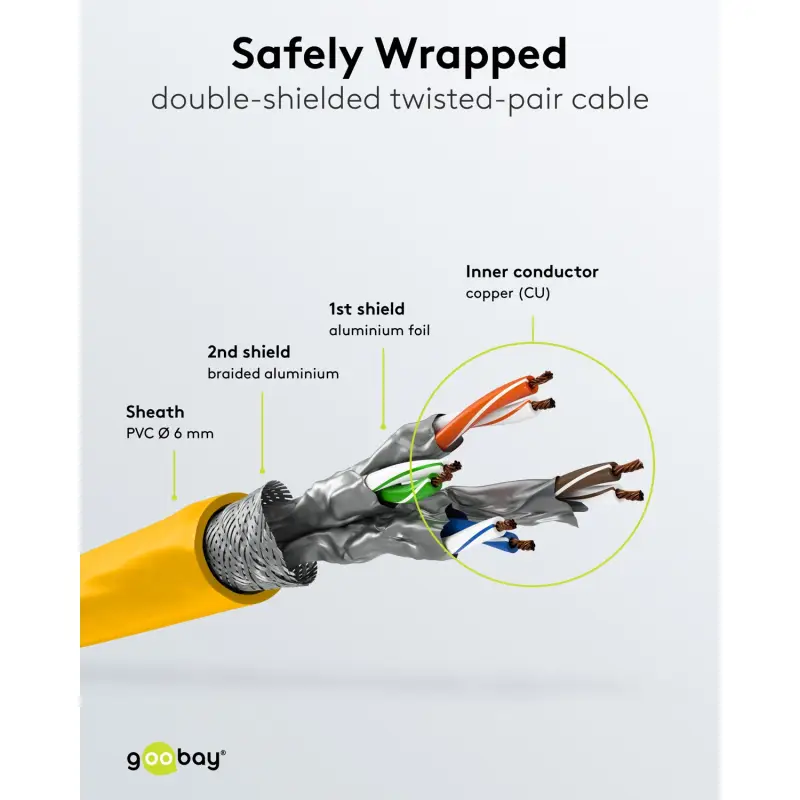

Features double shielding (S/FTP PiMF) consisting of aluminium foil shielding around individual wire pairs and an overall aluminium braid shield. Pure copper (CU) conductors and 3 µm gold-plated contacts ensure corrosion resistance and clear signal transmission.

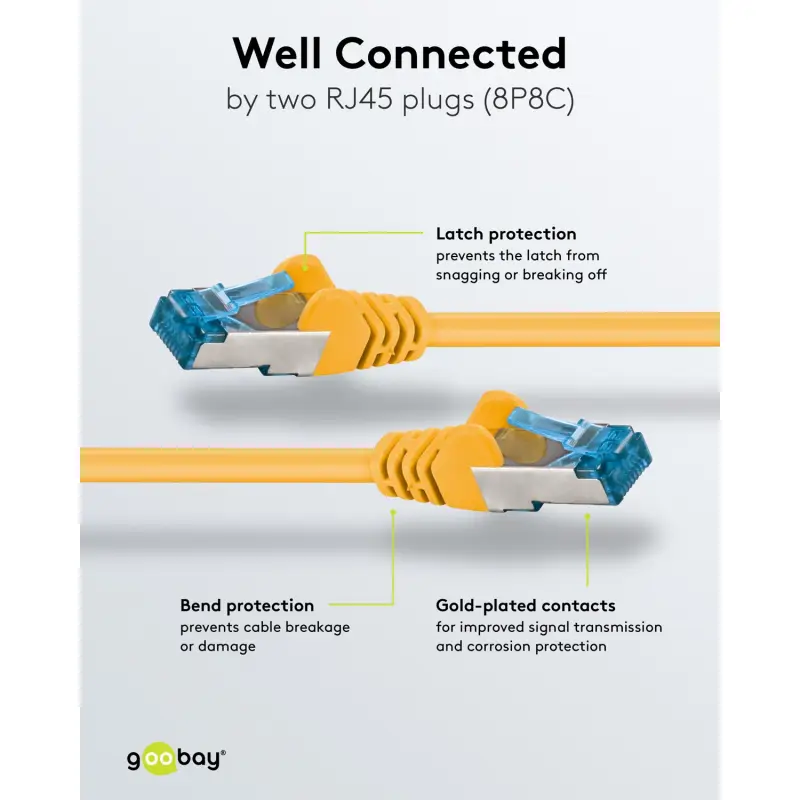

Supports 10 Gigabit Ethernet speeds up to 10 Gbit/s with a maximum bandwidth of 500 MHz and is compatible with Power over Ethernet (PoE, PoE+). Both RJ45 connectors feature integrated kink protection and latch protection to prevent damage. The cable sheath is made of halogen-free LSZH material.
Features double shielding (S/FTP PiMF) consisting of aluminium foil shielding around individual wire pairs and an overall aluminium braid shield. Pure copper (CU) conductors and 3 µm gold-plated contacts ensure corrosion resistance and clear signal transmission.
Supports 10 Gigabit Ethernet speeds up to 10 Gbit/s with a maximum bandwidth of 500 MHz and is compatible with Power over Ethernet (PoE, PoE+). Both RJ45 connectors feature integrated kink protection and latch protection to prevent damage. The cable sheath is made of halogen-free LSZH material.

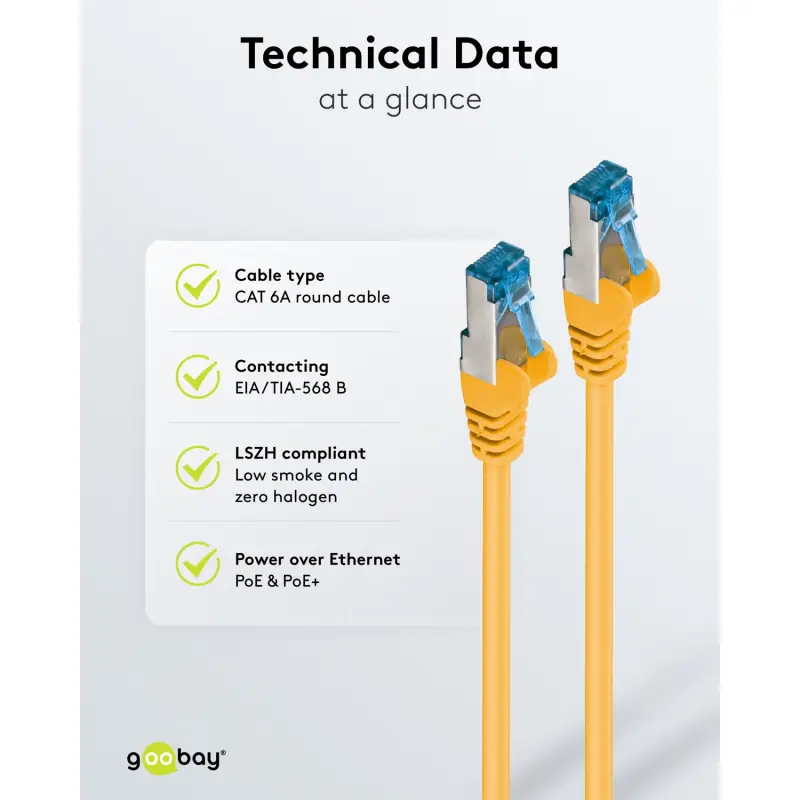

Specification: CAT 6A
Shielding class: S/FTP (PiMF)
Number of shieldings: 2x
Type 1 shielding: Foil (alu) PiMF
Type 2 shielding: Braid (alu) overall shield
Cable length: 0.5 m
Cable type: Round cable
Cable sheath diameter (approx.): 5.9 mm
Cable sheath material: LSZH
LSZH compliant: Yes
Inner conductor material: CU (copper)
AWG: 27/7 (stranded)
Bending radius: > 59 mm
Connection, type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Contact material: Gold-plated 3 µm
Latch protection: Both sides
Kink protection: Both sides
Connection shielding: Yes
Contacting: EIA/TIA-568 B
Max. transmission rate: 10 Gbit/s
Max. bandwidth: 500 MHz
PoE suitability: PoE, PoE+
Color: Yellow
Special feature: Length indication on connector
Operating temperature: -20 °C to 65 °C
Markings: CE, WEEE
Shielding class: S/FTP (PiMF)
Number of shieldings: 2x
Type 1 shielding: Foil (alu) PiMF
Type 2 shielding: Braid (alu) overall shield
Cable length: 0.5 m
Cable type: Round cable
Cable sheath diameter (approx.): 5.9 mm
Cable sheath material: LSZH
LSZH compliant: Yes
Inner conductor material: CU (copper)
AWG: 27/7 (stranded)
Bending radius: > 59 mm
Connection, type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Contact material: Gold-plated 3 µm
Latch protection: Both sides
Kink protection: Both sides
Connection shielding: Yes
Contacting: EIA/TIA-568 B
Max. transmission rate: 10 Gbit/s
Max. bandwidth: 500 MHz
PoE suitability: PoE, PoE+
Color: Yellow
Special feature: Length indication on connector
Operating temperature: -20 °C to 65 °C
Markings: CE, WEEE
-
