SKU:93688-GBY
Manufacturer:
Goobay
New
Image is for illustrative purposes only

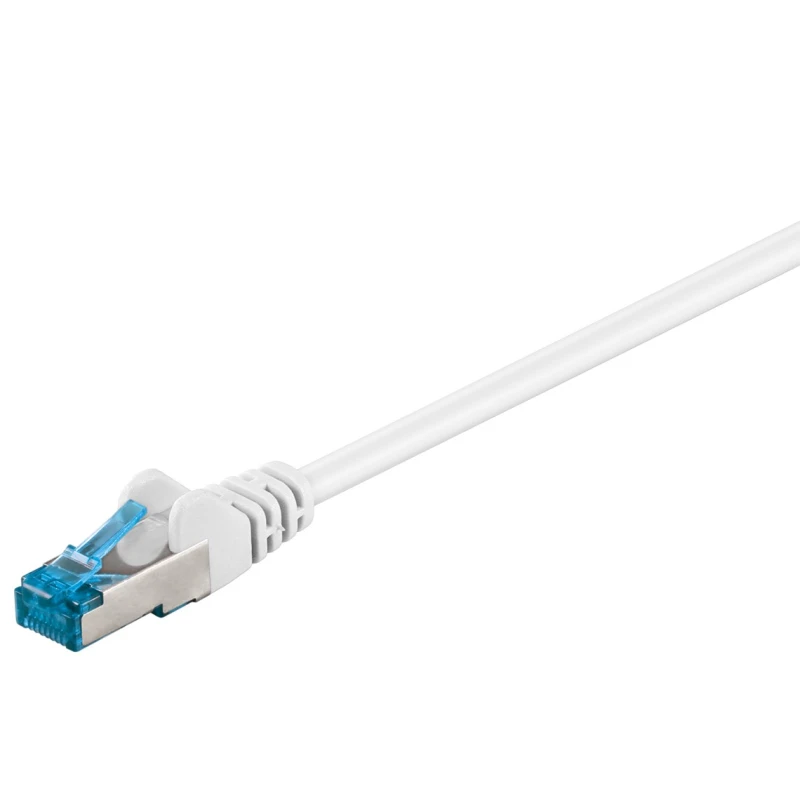

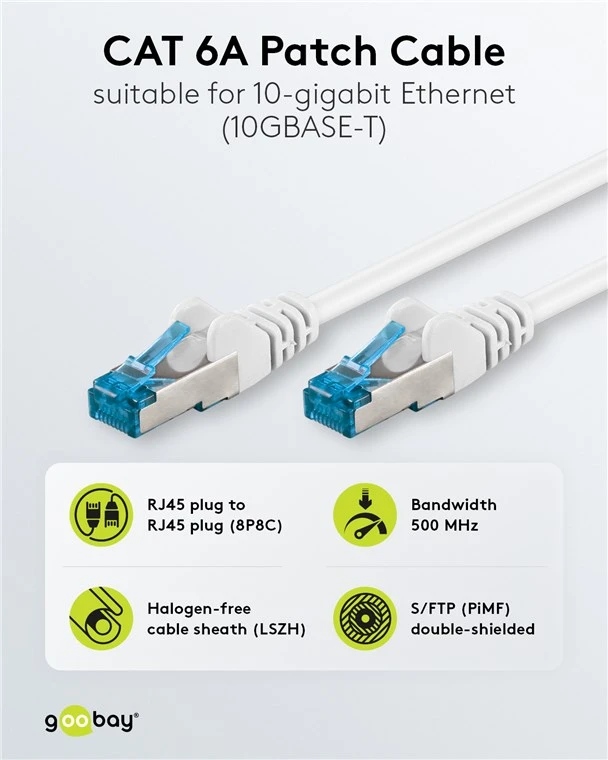

This professional-grade CAT 6A patch cable is engineered for high-speed networking, supporting transfer rates of up to 10 Gigabit Ethernet. Featuring a double-shielded S/FTP design with both aluminum foil for individual pairs and an overall braid, it provides exceptional protection against electromagnetic interference. The high-quality copper conductor (CU) and 3µ gold-plated contacts ensure a powerful and stable connection for all your network components.

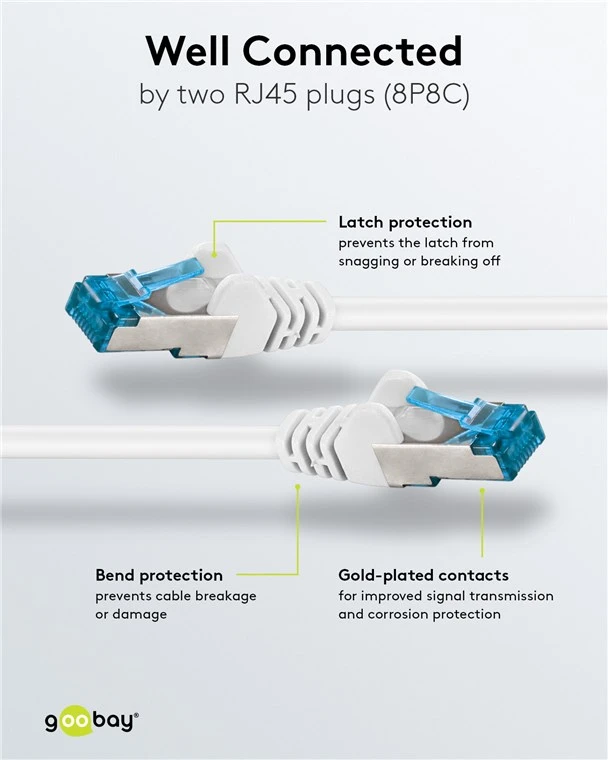

Built for durability and ease of use, the cable includes integrated bend protection and a latch protector on both RJ45 plugs, preventing snags and accidental breakages. Its halogen-free LSZH outer sheath makes it a safer choice for indoor installations by reducing toxic emissions in case of fire. This cable is CAT 6A tested and fully supports Power over Ethernet (PoE and PoE+) applications.
Built for durability and ease of use, the cable includes integrated bend protection and a latch protector on both RJ45 plugs, preventing snags and accidental breakages. Its halogen-free LSZH outer sheath makes it a safer choice for indoor installations by reducing toxic emissions in case of fire. This cable is CAT 6A tested and fully supports Power over Ethernet (PoE and PoE+) applications.
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Connection, type: RJ45 male (8P8C)
Specification: CAT 6A
Cable type: round cable

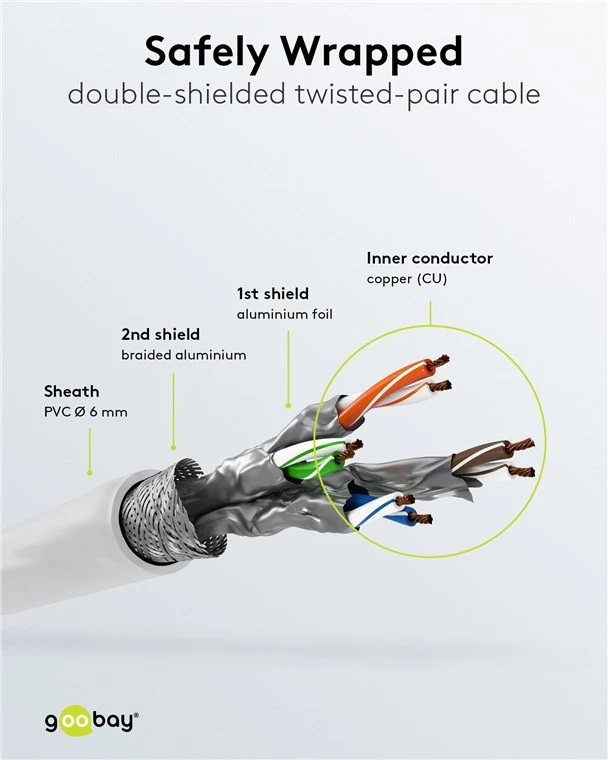

Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 1 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: white
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Connection, type: RJ45 male (8P8C)
Specification: CAT 6A
Cable type: round cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 1 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: white
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
-
