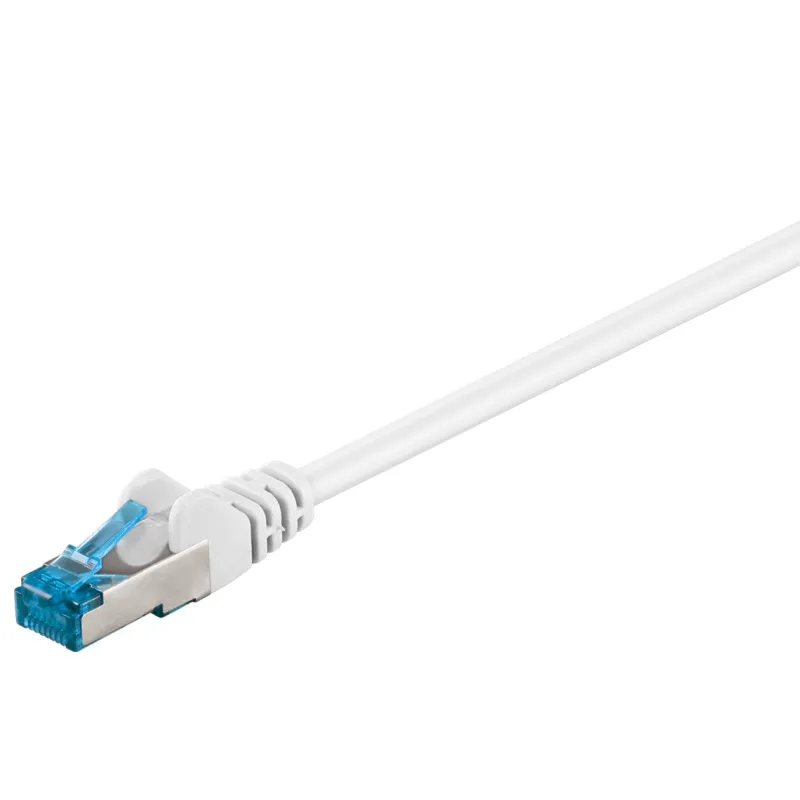

Ultra-Flexible CAT 6A Patch Cable S/FTP (PiMF), white

SKU:79320-GBY
Manufacturer:Goobay
New Ultra-Flexible CAT 6A Patch Cable S/FTP (PiMF), white
Image is for illustrative purposes only
This 2-meter Goobay CAT 6A S/FTP patch cord provides high-speed data transmission in a highly flexible design, ideal for demanding networking environments where space is limited.

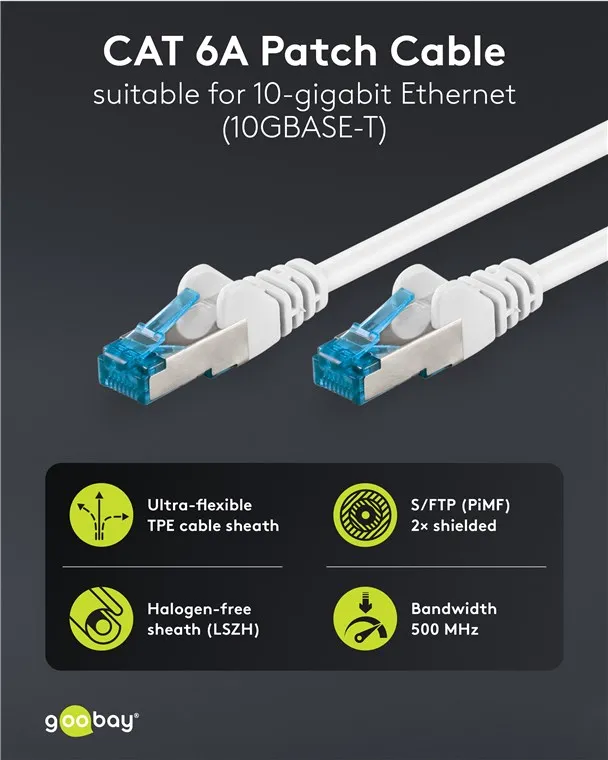

Key Features


- Ultra-flexible LSZH-TPE jacket: Offers significantly better maneuverability than standard PVC cables, simplifying installation in tight spaces.

- S/FTP Double Shielding: Combines individual foil-screened pairs (PiMF) with an overall braided shield for superior protection against electromagnetic interference.

- High-Speed Performance: Supports data transfer rates up to 10 Gbps with a 500 MHz bandwidth for stable network connectivity.

- Premium Build Quality: Features high-quality copper (CU) conductors and 3µm gold-plated contacts to ensure optimal signal integrity.

- PoE Compatibility: Fully supports Power over Ethernet (PoE and PoE+) for powering connected devices.

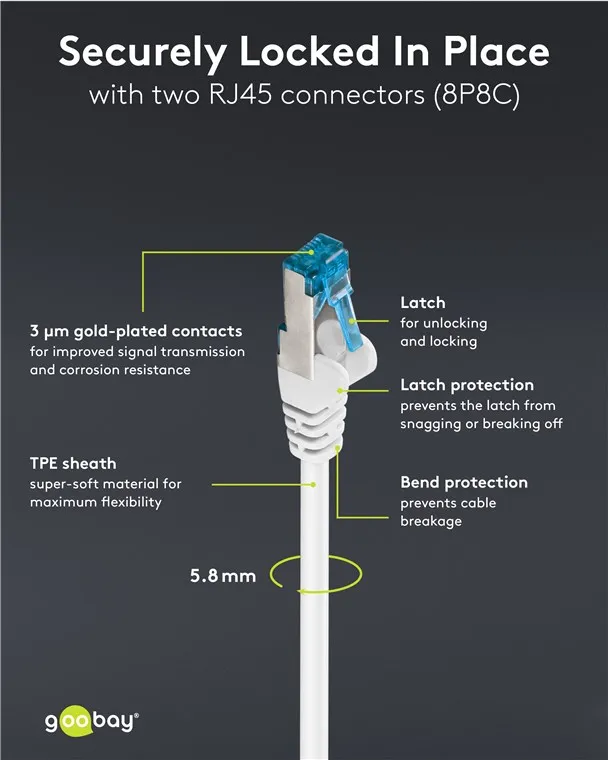

- Enhanced Durability: Equipped with latch protection and integrated strain relief (kink protection) on both RJ45 connectors to prevent mechanical damage.

Applications


The cable's exceptional flexibility and robust shielding make it particularly suitable for professional server racks, high-density network cabinets, and home office setups. Its design ensures easy cable management in confined areas without compromising signal performance.
Cable Type: Patch cable
Specification: CAT 6A
Shielding: S/FTP (PiMF)
Jacket Material: LSZH-TPE (halogen-free, ultra-flexible)
Conductor Material: CU (copper)
Conductor Gauge (AWG): 27/7 (stranded)
Cable Length: 2.0 m
Color: White
Max. Bandwidth: 500 MHz
Data Transfer Rate: 10 Gbit/s
Connectors: 2x RJ45 male (8P8C)
Contacts: Gold-plated 3µm
Features: Latch protection, kink protection, PoE/PoE+ support
Jacket Diameter: 5.8 mm

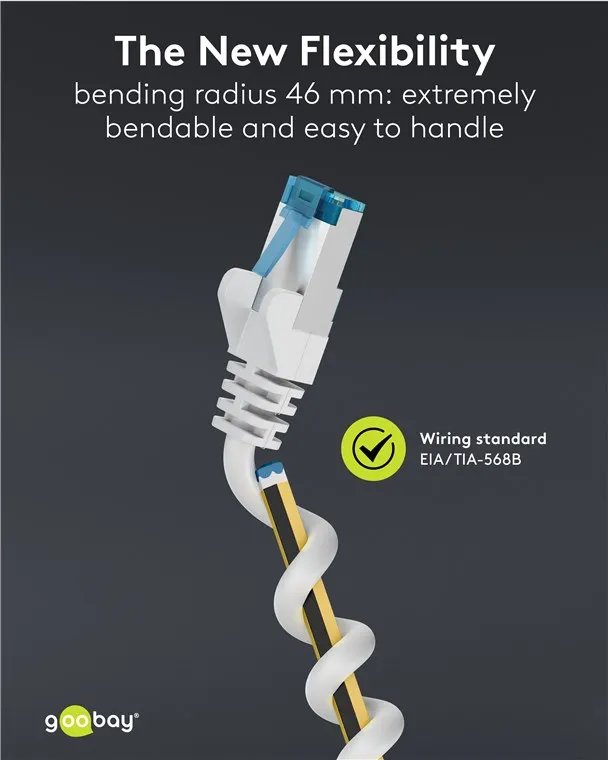

Bending Radius: >46 mm
Operating Temperature: 0 °C ... 50 °C
EAN: 4040849793202
79320-GBY Datasheet EN1.21MB
