SKU:93746-GBY
Manufacturer:
Goobay
New
Image is for illustrative purposes only
This premium double-shielded LAN cable is engineered to deliver superior network performance for high-speed data environments. Supporting 10 Gigabit Ethernet, it is fully compatible with 10BASE-T, 100BASE-TX, 1000BASE-T, and 10000 Mbit/s networks, ensuring seamless connectivity for all your components.
The cable features high-quality copper conductors and 3µ gold-plated contacts for unmatched signal integrity. Its S/FTP shielding combines individual pair foil protection with an overall braid shield to minimize interference. Designed for durability, the cable includes bend protection and a snagless latch protector, while the LSZH outer jacket ensures safety in sensitive environments. It is also fully PoE and PoE+ compatible.
The cable features high-quality copper conductors and 3µ gold-plated contacts for unmatched signal integrity. Its S/FTP shielding combines individual pair foil protection with an overall braid shield to minimize interference. Designed for durability, the cable includes bend protection and a snagless latch protector, while the LSZH outer jacket ensures safety in sensitive environments. It is also fully PoE and PoE+ compatible.
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides

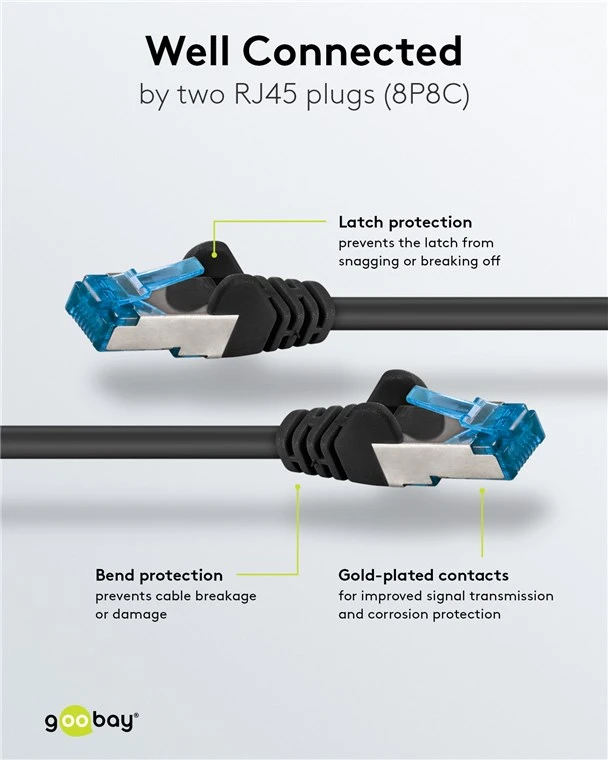

Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Connection, type: RJ45 male (8P8C)

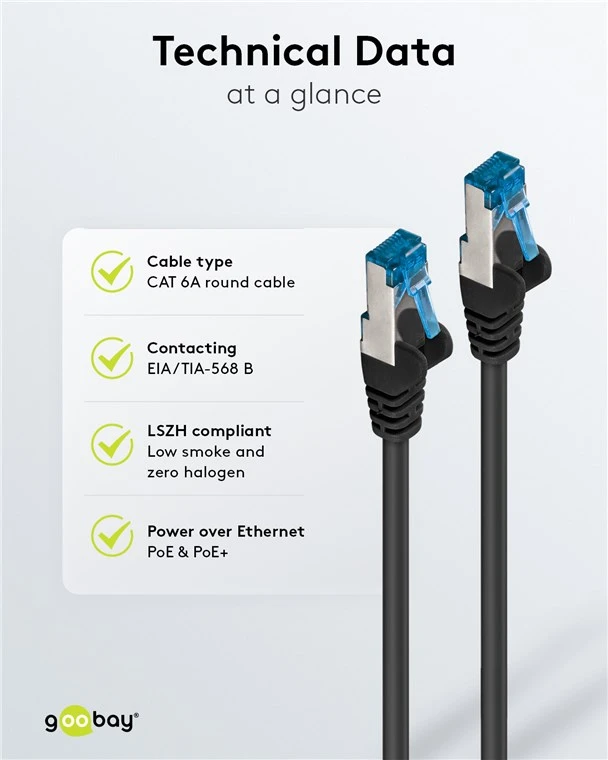

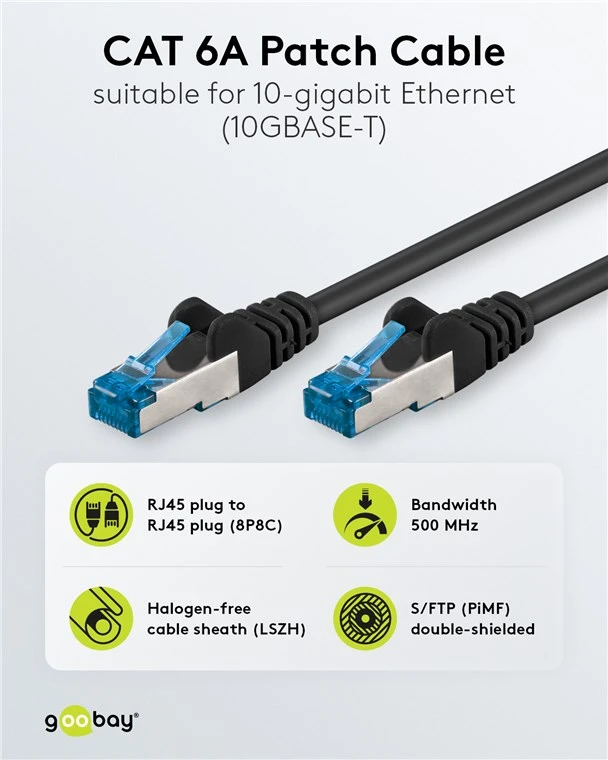

Specification: CAT 6A
Cable type: round cable

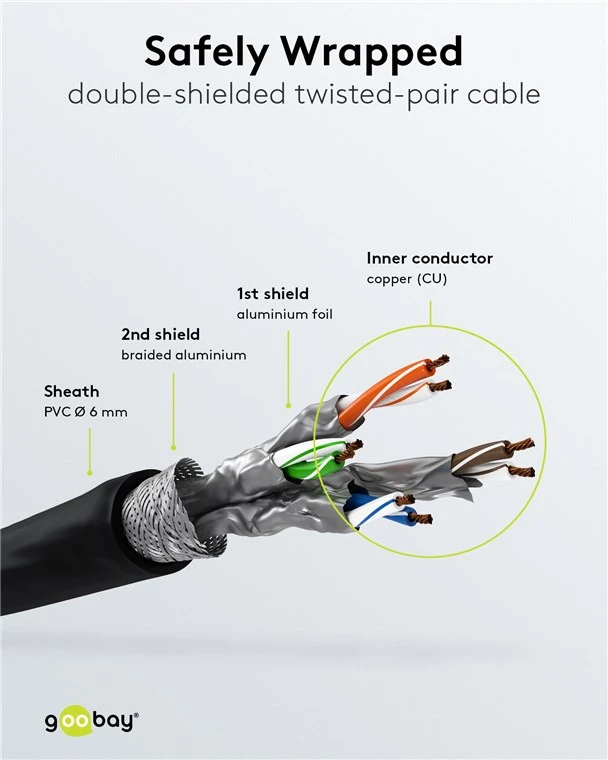

Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 2 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: black
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature: -20 °C to 65 °C
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Connection, type: RJ45 male (8P8C)
Specification: CAT 6A
Cable type: round cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 2 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: black
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature: -20 °C to 65 °C
-
