SKU:93782-GBY
Manufacturer:
Goobay
New
Image is for illustrative purposes only

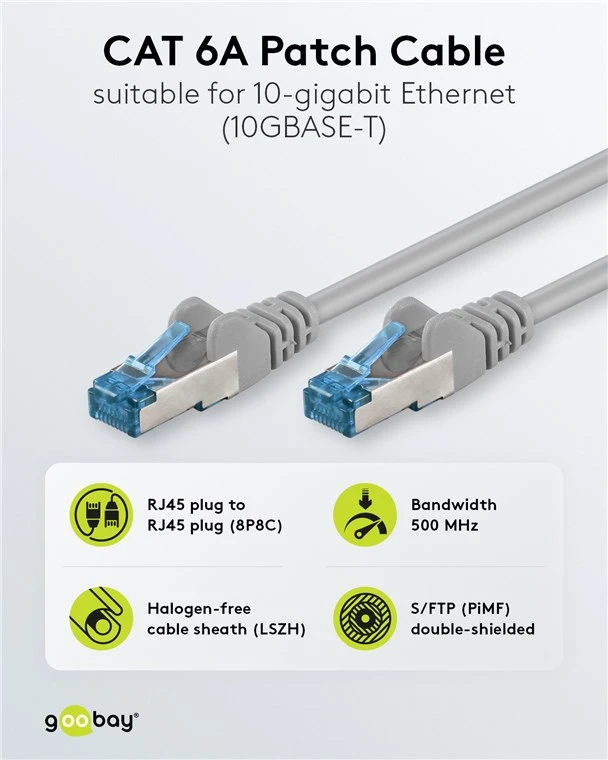

This high-performance 3-meter network cable is engineered to deliver reliable 10 Gigabit Ethernet connectivity with a massive 500MHz bandwidth. Featuring double shielding (S/FTP) with both individual pair foil and overall aluminum braiding, it ensures maximum protection against electromagnetic interference in dense network environments.

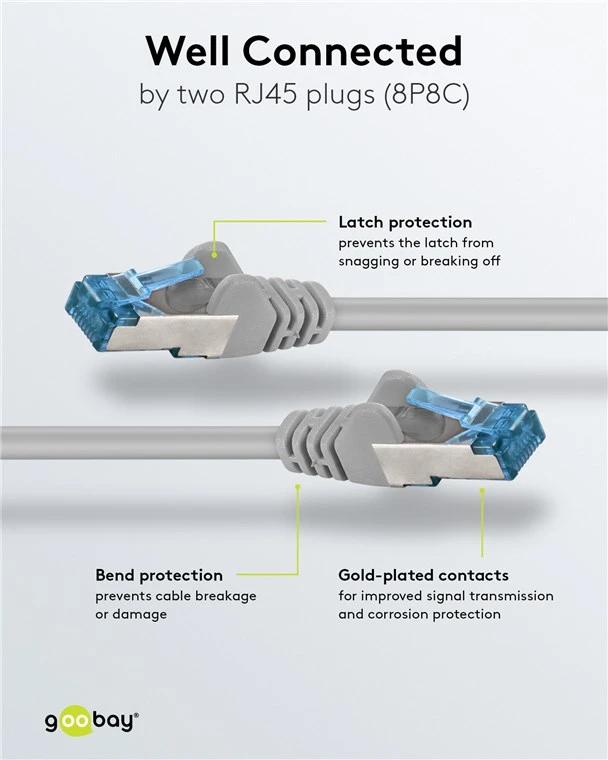

The use of pure copper conductors (CU) and 3µ gold-plated contacts guarantees a powerful and stable data link for professional requirements. For added durability, the cable includes integrated latch and kink protection on both ends, preventing connector damage and signal loss during installation or use. Its halogen-free (LSZH) jacket makes it a safe choice for indoor installations, while its PoE+ compatibility allows for versatile power delivery to network devices. Each cable is CAT 6A tested to ensure it meets the highest performance standards.
The use of pure copper conductors (CU) and 3µ gold-plated contacts guarantees a powerful and stable data link for professional requirements. For added durability, the cable includes integrated latch and kink protection on both ends, preventing connector damage and signal loss during installation or use. Its halogen-free (LSZH) jacket makes it a safe choice for indoor installations, while its PoE+ compatibility allows for versatile power delivery to network devices. Each cable is CAT 6A tested to ensure it meets the highest performance standards.
Connection 1, type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B

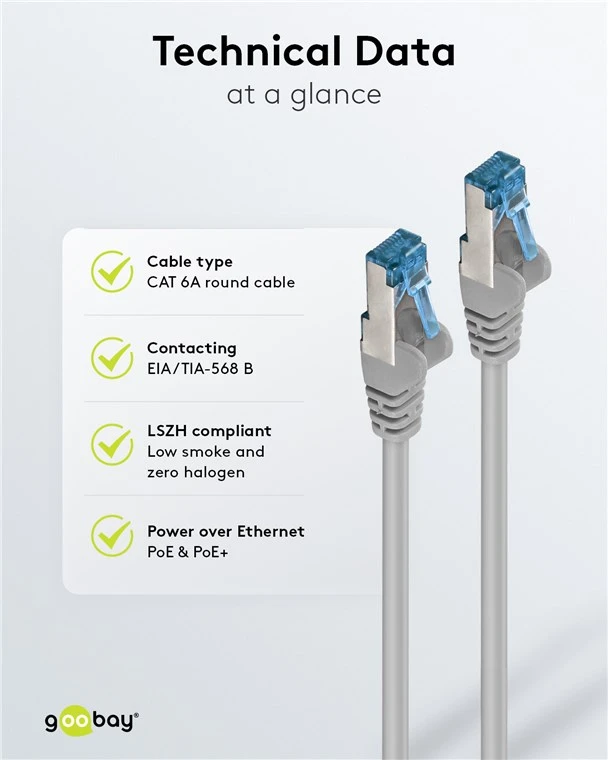

Specification: CAT 6A
Cable type: round cable

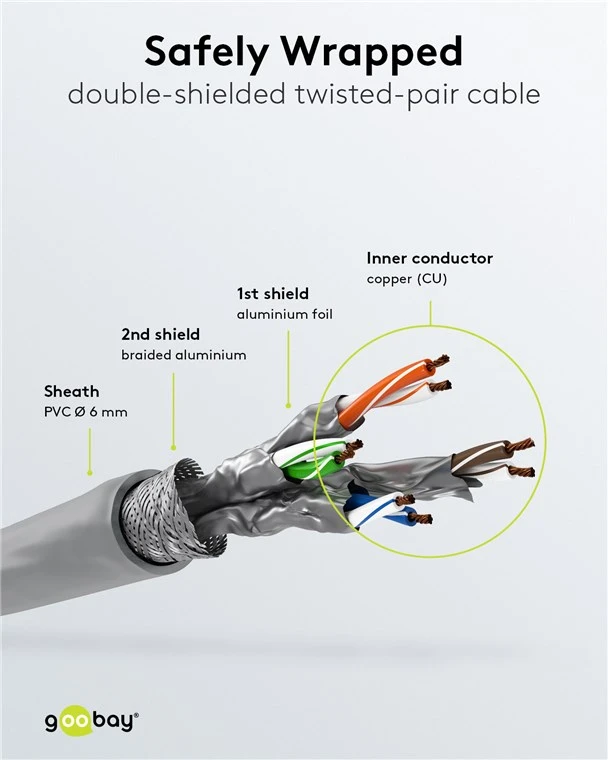

Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 3 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: grey
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Specification: CAT 6A
Cable type: round cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 3 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: grey
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
-
