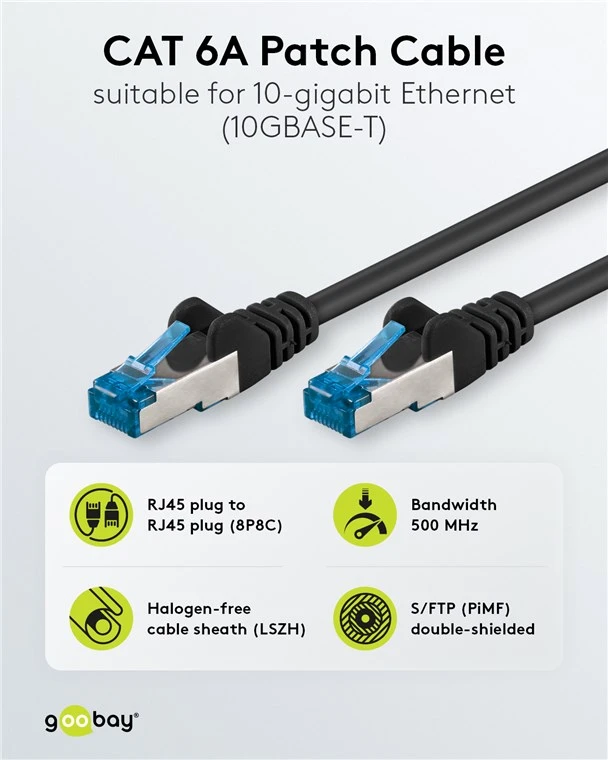

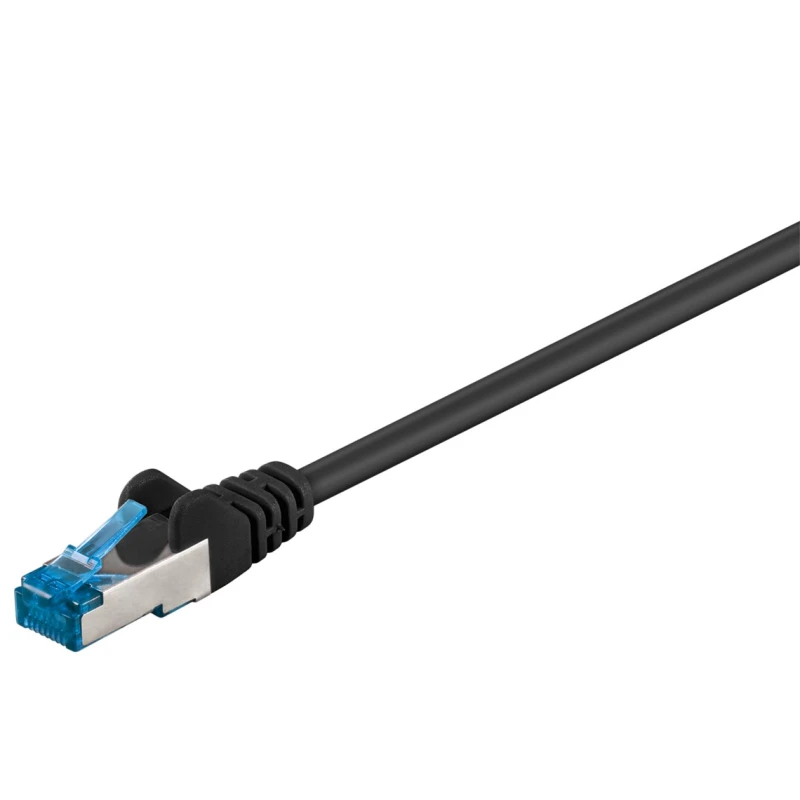

CAT 6A Patch Cable, S/FTP (PiMF), black
SKU:93787-GBY
Manufacturer:Goobay
New
Image is for illustrative purposes only
This high-quality Goobay Category 6A patch cord is engineered for high-performance networking, supporting data transfer speeds of up to 10 Gbps. It provides a reliable solution for building robust gigabit infrastructures in both professional and residential environments.
Key Features
- Supports high-speed data transmission up to 10 Gbps for demanding network applications.
- Features S/FTP double shielding, utilizing individually foil-screened pairs (PiMF) and an overall braid to ensure maximum protection against crosstalk and electromagnetic interference (EMI).
- Built with pure copper (CU) internal conductors to provide superior signal stability and full support for Power over Ethernet (PoE).
- Encased in an LSZH (Low Smoke Zero Halogen) outer jacket, which complies with modern fire safety standards by preventing the release of toxic gases during combustion.
Applications
The cable's advanced shielding and safety-rated materials make it ideal for reliable network installations in office spaces and residential buildings where high-speed connectivity and fire safety are essential.
Key Features
- Supports high-speed data transmission up to 10 Gbps for demanding network applications.
- Features S/FTP double shielding, utilizing individually foil-screened pairs (PiMF) and an overall braid to ensure maximum protection against crosstalk and electromagnetic interference (EMI).
- Built with pure copper (CU) internal conductors to provide superior signal stability and full support for Power over Ethernet (PoE).
- Encased in an LSZH (Low Smoke Zero Halogen) outer jacket, which complies with modern fire safety standards by preventing the release of toxic gases during combustion.
Applications
The cable's advanced shielding and safety-rated materials make it ideal for reliable network installations in office spaces and residential buildings where high-speed connectivity and fire safety are essential.

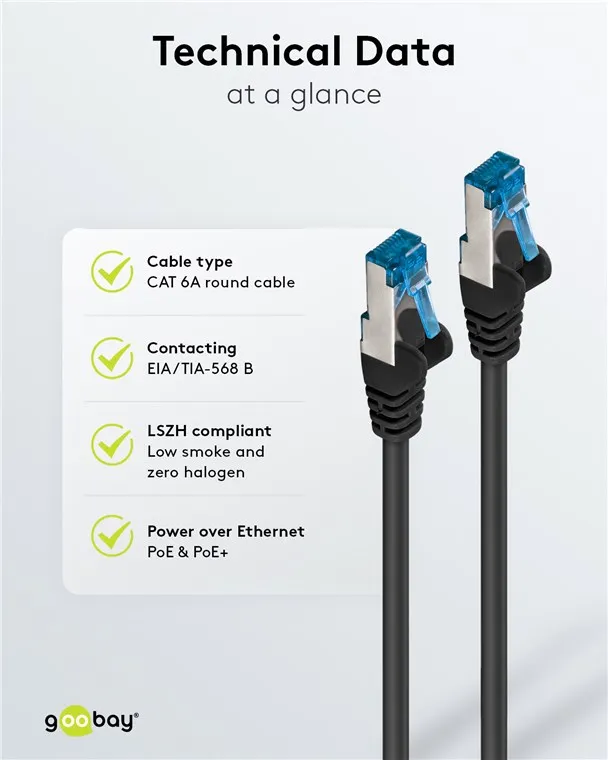

Cable Type: Patch cord
Category: CAT 6A
Color: Black
Conductor Cross-section: AWG 27/7 (stranded)
Conductor Material: Copper (CU)
Configuration: 1:1 (EIA/TIA-568B)

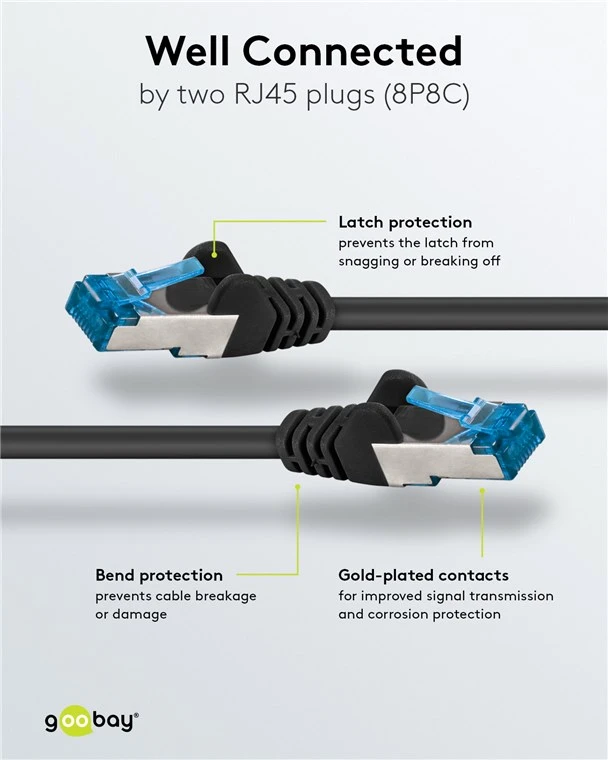

Connectors: 2x RJ45 (8P8C) male
Features: PoE/PoE+ support, snagless protection (latch protection), gold-plated contacts (3 µm)
Length: 3.0 m
Max. Bandwidth: 500 MHz
Outer Diameter: 5.9 mm
Sheath Material: LSZH (Low Smoke Zero Halogen)
Shielding: S/FTP (PiMF)
Category: CAT 6A
Color: Black
Conductor Cross-section: AWG 27/7 (stranded)
Conductor Material: Copper (CU)
Configuration: 1:1 (EIA/TIA-568B)
Connectors: 2x RJ45 (8P8C) male
Features: PoE/PoE+ support, snagless protection (latch protection), gold-plated contacts (3 µm)
Length: 3.0 m
Max. Bandwidth: 500 MHz
Outer Diameter: 5.9 mm
Sheath Material: LSZH (Low Smoke Zero Halogen)
Shielding: S/FTP (PiMF)
-
