SKU:93815-GBY
Manufacturer:
Goobay
New
Image is for illustrative purposes only

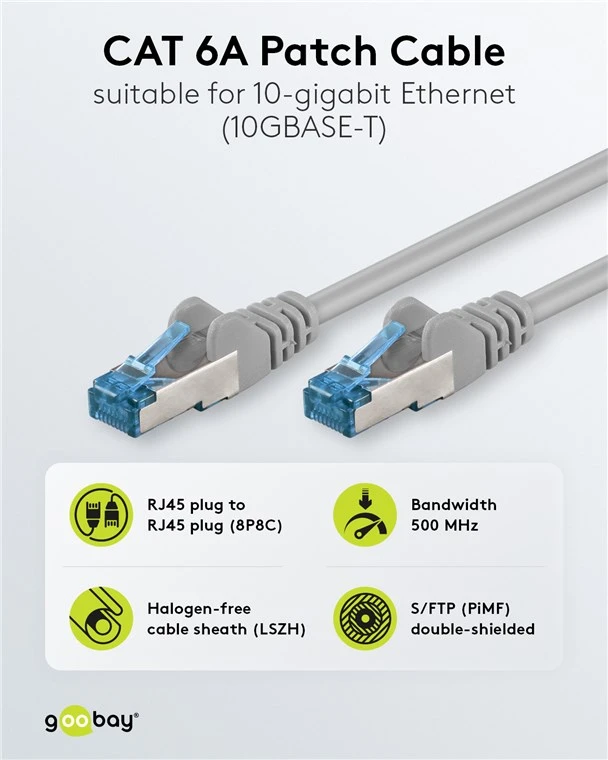

This premium double-shielded network cable is engineered to deliver peak performance for 10-Gigabit Ethernet applications. Featuring high-quality copper conductors and 3µ gold-plated contacts, it ensures a powerful and reliable network connection without signal degradation even in demanding environments.

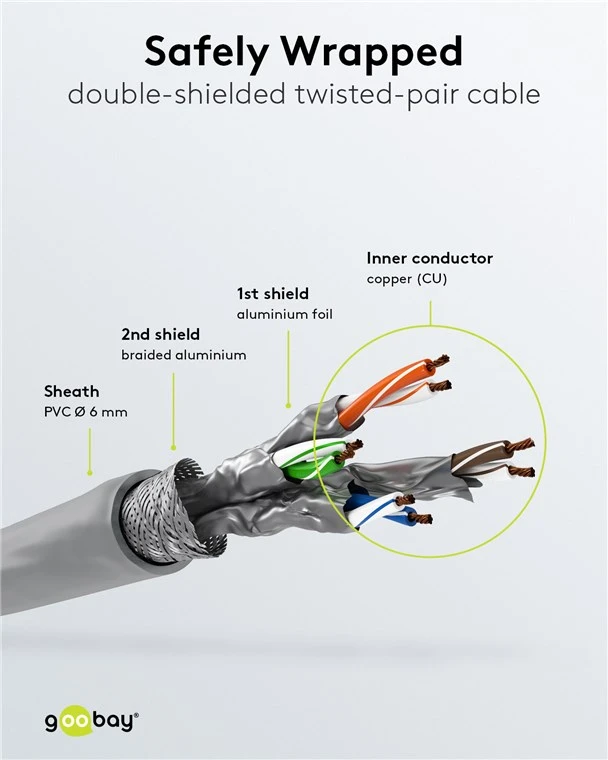

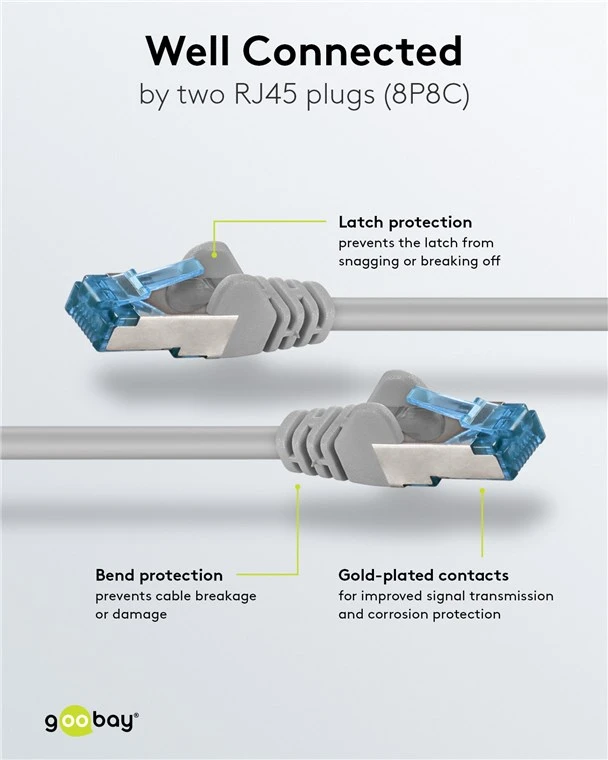

The cable utilizes advanced S/FTP shielding, combining individual foil pairs with an overall aluminum braid to effectively eliminate electromagnetic interference. Integrated bend protection and a robust halogen-free jacket safeguard the cable against physical damage and breakage, while the snagless latch protection on the RJ45 plugs prevents accidental breakage or snagging during installation or cable routing.
Rigorous CAT 6A testing and full support for Power over Ethernet (PoE and PoE+) make this cable a versatile and dependable solution for professional high-speed networking, whether for office infrastructure or home media setups.
The cable utilizes advanced S/FTP shielding, combining individual foil pairs with an overall aluminum braid to effectively eliminate electromagnetic interference. Integrated bend protection and a robust halogen-free jacket safeguard the cable against physical damage and breakage, while the snagless latch protection on the RJ45 plugs prevents accidental breakage or snagging during installation or cable routing.
Rigorous CAT 6A testing and full support for Power over Ethernet (PoE and PoE+) make this cable a versatile and dependable solution for professional high-speed networking, whether for office infrastructure or home media setups.

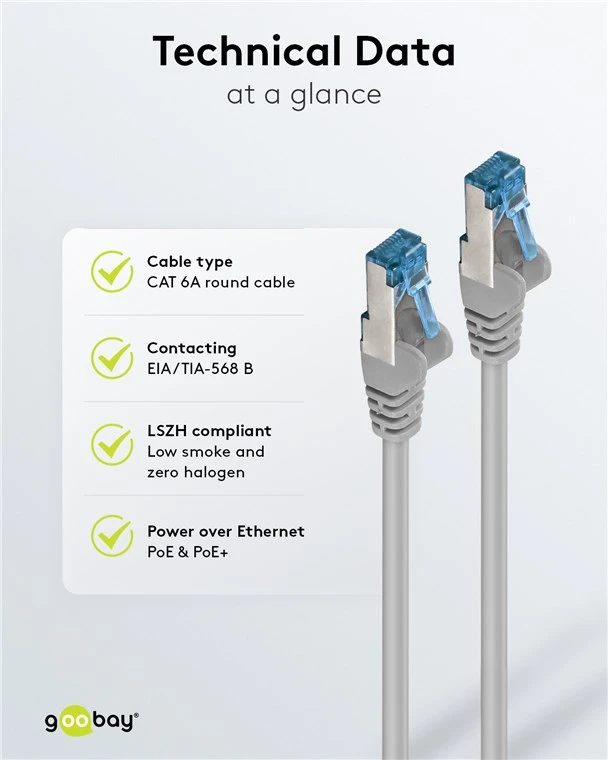

Connection, type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Specification: CAT 6A
Cable type: round cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 5 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: grey
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Specification: CAT 6A
Cable type: round cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 5 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: grey
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
-
