SKU:93820-GBY
Manufacturer:
Goobay
New
Image is for illustrative purposes only

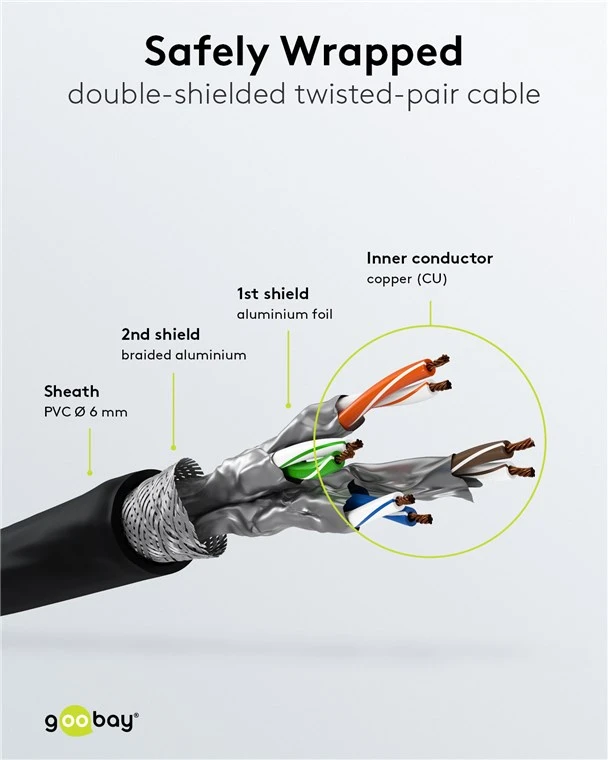

This high-performance 10 Gigabit network cable is engineered to deliver stable and ultra-fast connectivity for modern network infrastructures. Featuring advanced double shielding (S/FTP) with individual foil pairs and an overall braid, it effectively eliminates electromagnetic interference to ensure impeccable signal integrity.

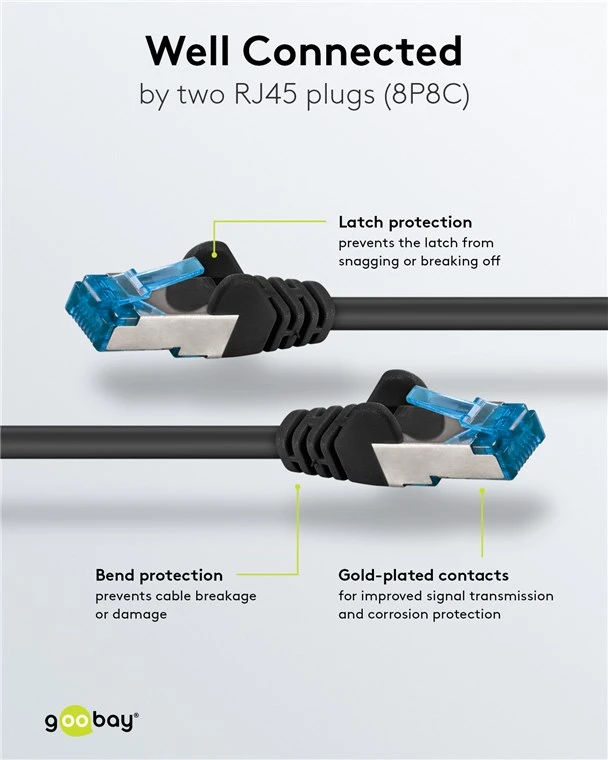

Constructed with high-quality pure copper conductors and 3µ gold-plated contacts, the cable guarantees a powerful and reliable connection. Its halogen-free LSZH sheath provides enhanced safety, while the integrated latch protection and dual-sided bend protection prevent physical damage even during intensive use. This CAT 6A tested cable is also fully compatible with PoE and PoE+ applications, making it a versatile choice for professional setups.
Constructed with high-quality pure copper conductors and 3µ gold-plated contacts, the cable guarantees a powerful and reliable connection. Its halogen-free LSZH sheath provides enhanced safety, while the integrated latch protection and dual-sided bend protection prevent physical damage even during intensive use. This CAT 6A tested cable is also fully compatible with PoE and PoE+ applications, making it a versatile choice for professional setups.
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Connection, type: RJ45 male (8P8C)

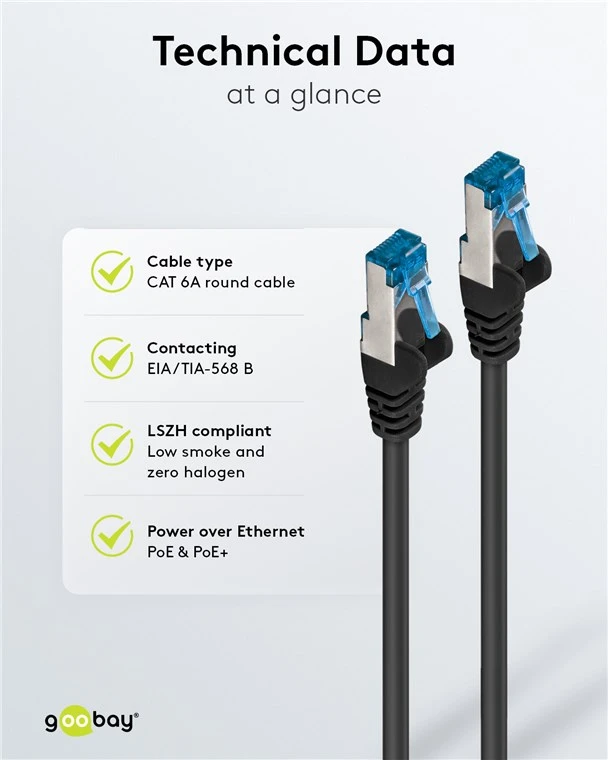

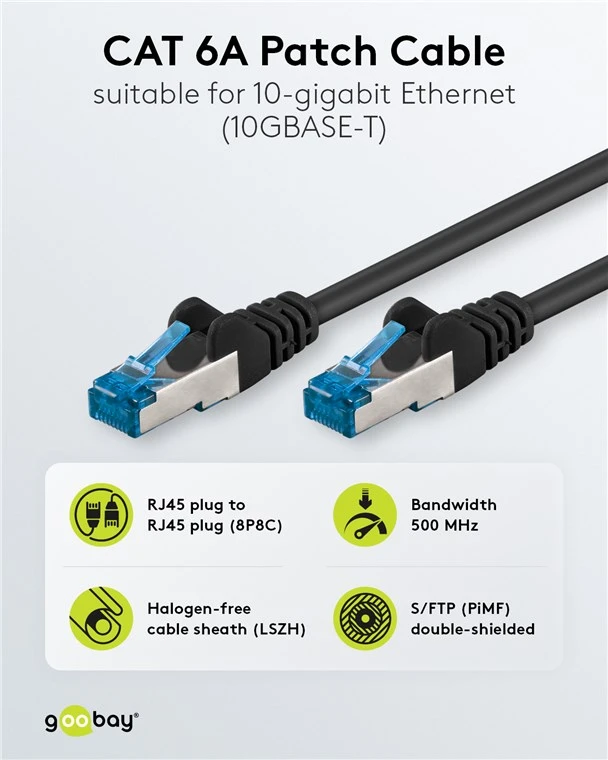

Specification: CAT 6A
Cable type: round cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 5 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: black
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
Kink protection: both sides
Latch protection: both sides
Connection, shielding: yes
Connection, contact material: gold-plated 3µm
Contacting: EIA/TIA-568 B
Connection, type: RJ45 male (8P8C)
Specification: CAT 6A
Cable type: round cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 27/7 (stranded)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 5.9 mm
Bending radius: > 59 mm
Cable length: 5 m
LSZH compliant: yes
Max. bandwidth: 500 MHz
Max. transmission rate: 10 Gbit/s
Color: black
Markings: CE, WEEE
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 65 °C
-
