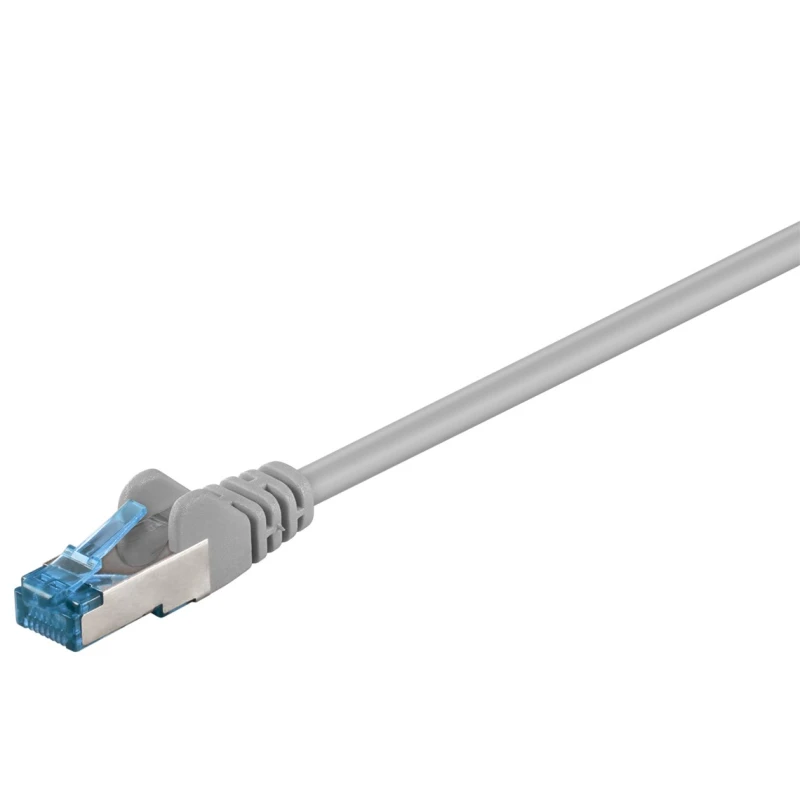

CAT 6A Patch Cable, S/FTP (PiMF), grey
SKU:94137-GBY
Manufacturer:Goobay
New
Image is for illustrative purposes only

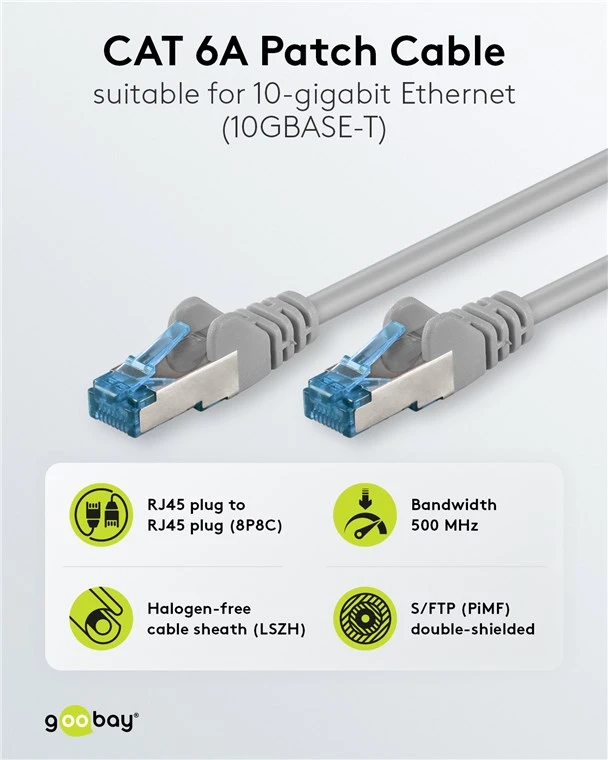

This high-quality Goobay CAT 6A patch cord is engineered for high-speed data transmission, supporting speeds up to 10 Gbps with a 500 MHz bandwidth. It provides a reliable solution for professional networking environments requiring stable and high-performance connectivity.
Key Features
- S/FTP (PiMF) Double Shielding: Features individually foil-screened pairs and an overall braid to ensure maximum protection against electromagnetic interference and crosstalk.
- Pure Copper Conductors: Utilizes high-quality copper (CU) internal wiring for superior signal conductivity and long-term durability.
- LSZH Outer Jacket: The low-smoke zero-halogen, flame-retardant sheath ensures safety for indoor installations by reducing toxic emissions in the event of a fire.

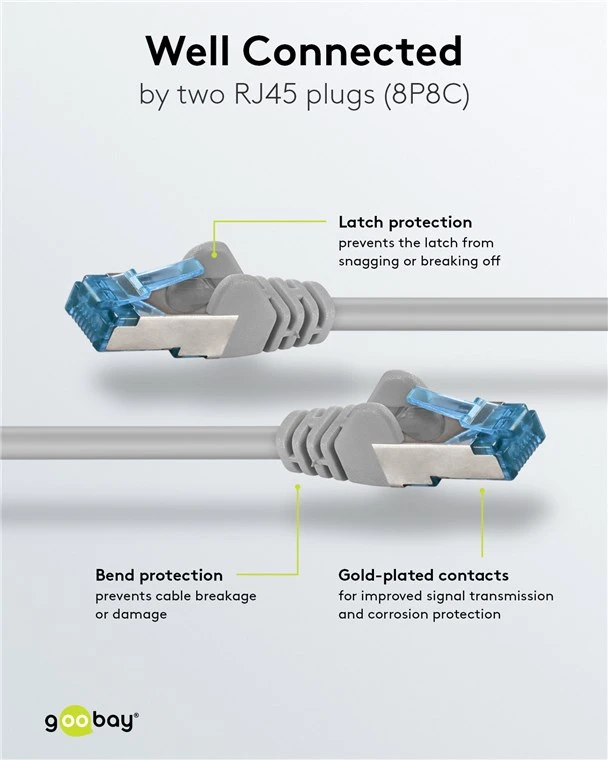

- Protected RJ45 Connectors: Equipped with integrated latch protection and strain relief to prevent mechanical damage and ensure a secure, stable connection.
Applications
With its high bandwidth and robust shielding, this cable is ideal for 10 Gigabit Ethernet applications in server rooms, offices, and residential buildings. The LSZH rating makes it particularly suitable for indoor environments where fire safety standards and low smoke emission are required.
Key Features
- S/FTP (PiMF) Double Shielding: Features individually foil-screened pairs and an overall braid to ensure maximum protection against electromagnetic interference and crosstalk.
- Pure Copper Conductors: Utilizes high-quality copper (CU) internal wiring for superior signal conductivity and long-term durability.
- LSZH Outer Jacket: The low-smoke zero-halogen, flame-retardant sheath ensures safety for indoor installations by reducing toxic emissions in the event of a fire.
- Protected RJ45 Connectors: Equipped with integrated latch protection and strain relief to prevent mechanical damage and ensure a secure, stable connection.
Applications
With its high bandwidth and robust shielding, this cable is ideal for 10 Gigabit Ethernet applications in server rooms, offices, and residential buildings. The LSZH rating makes it particularly suitable for indoor environments where fire safety standards and low smoke emission are required.

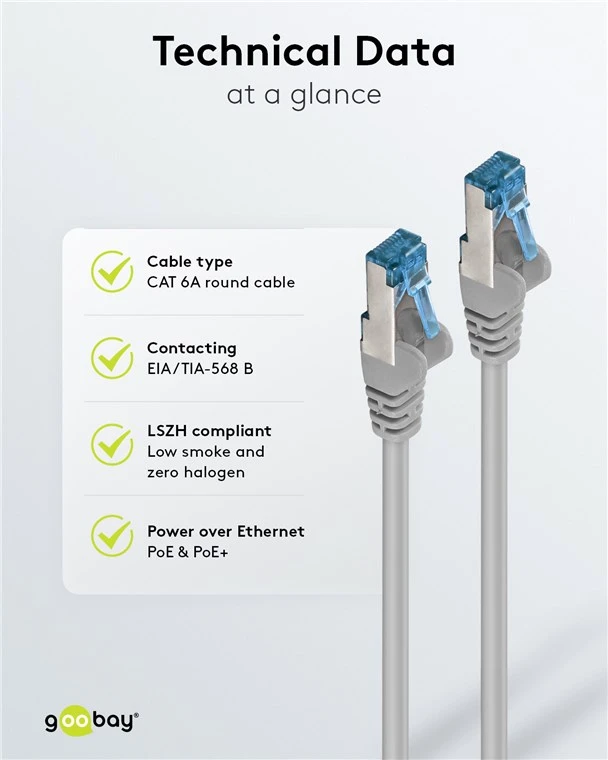

AWG: 27/7 (stranded)
Bandwidth: 500 MHz
Cable Type: Patch cable
Category: CAT 6A
Color: Grey
Connectors: 2x RJ45 male (8P8C)
Contact Plating: 3µm gold-plated
Features: Latch protection, kink protection
Inner Conductor Material: Copper (CU)
Length: 0.25 m
Manufacturer: Goobay (Wentronic GmbH)
Operating Temperature: -20 °C - 65 °C
Outer Diameter: 5.9 mm
SKU: 94137-GBY
Sheath Material: LSZH
Shielding: S/FTP (PiMF)
Standards: CE, WEEE
Wiring: 1:1 (EIA/TIA-568B)
Bandwidth: 500 MHz
Cable Type: Patch cable
Category: CAT 6A
Color: Grey
Connectors: 2x RJ45 male (8P8C)
Contact Plating: 3µm gold-plated
Features: Latch protection, kink protection
Inner Conductor Material: Copper (CU)
Length: 0.25 m
Manufacturer: Goobay (Wentronic GmbH)
Operating Temperature: -20 °C - 65 °C
Outer Diameter: 5.9 mm
SKU: 94137-GBY
Sheath Material: LSZH
Shielding: S/FTP (PiMF)
Standards: CE, WEEE
Wiring: 1:1 (EIA/TIA-568B)
-
