SKU:PIL0405
Manufacturer:
CABLETECH

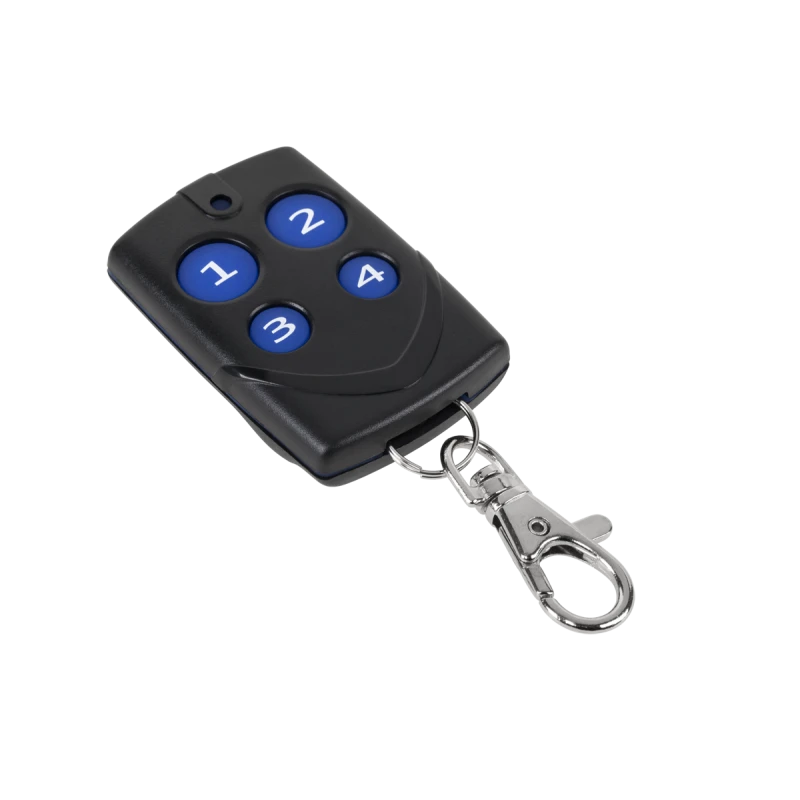

Image is for illustrative purposes only
Suitable for older Beninca systems. Features:
Fast frequency and code copying
Automatic frequency detection
Easy to use
Frequency range (MHz): 300, 306, 310, 315, 315.5, 330, 360, 390, 418, 430.5, 433.2, 433.92, 868.35, 286-361, 384-400
Programming:
1. Press the button 1, the LED starts to glow, then press any button 3 times, the LED blinks 2 times, which confirms that the remote controller is ready for programming, then release the button which was pressed 3 times, but keep button 1 pressed.
2. Place the original remote and the duplicator close to each other for copying, press a button on the original remote and slowly move it towards the duplicator. The code and frequency are copied when the LED blinks 3 times. Then release all buttons.
3. Program the remaining buttons in the same way.
Note:
1. Some universal remotes require a longer time for copying when moving the remotes closer. The duplicator has a self-adapting function that automatically improves sensitivity. Wait until the process is fully completed.
2. If programming was unsuccessful, release the button and repeat the process from the beginning.
