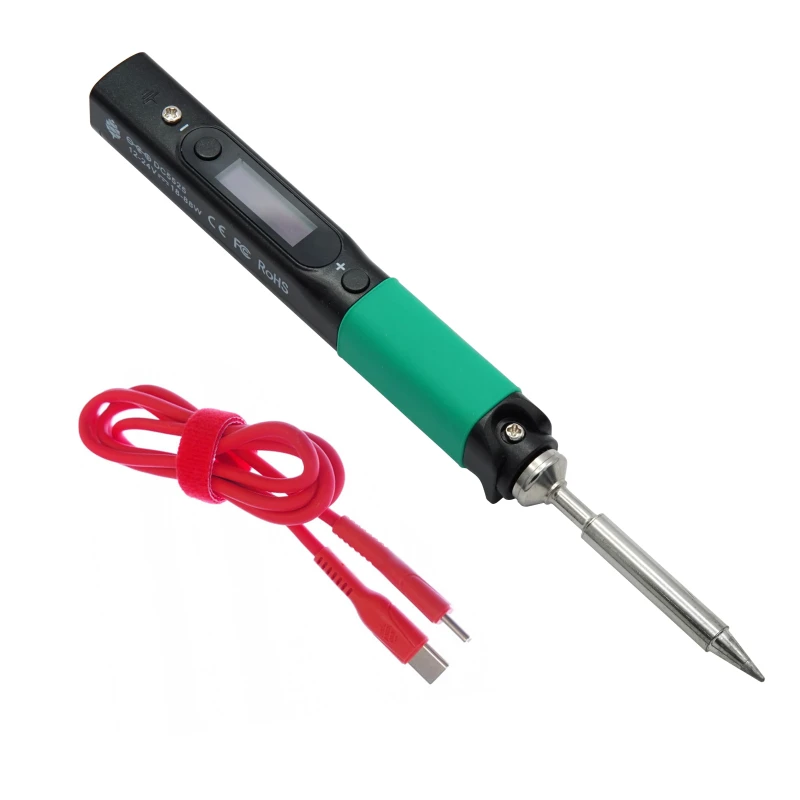

PINECIL V2 USB-C 88W Soldering iron+ 1M USB-C cable

PINECIL V2 USB-C 88W Soldering iron+ 1M USB-C cable

PACKAGING

Dimensions: 15cm x 9cm x 2.2cm

Weight: 80 g

BODY

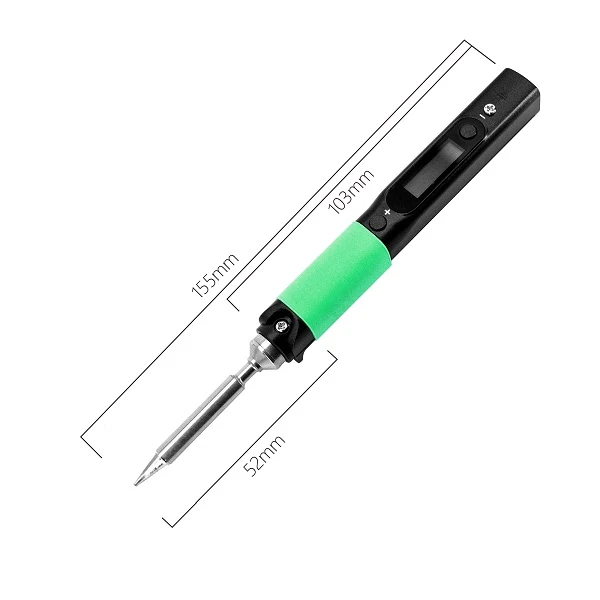

Dimensions: 155mm With piston tip / 103mm Without piston tip x 12.8mm x 16.2mm

Weight: 28g with piston tip / 18g without piston tip

PLATFORM

OS: Ralim's IronOS build

Chipset: Buffalo BL-706

CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz

SCREEN

OLED Monochrome screen with white letters

Size: 0.69 inches

Resolution: 96x16pixels

MEMORY

Enter Flash memory: 192KB

System memory: 132KB SRAM

Power sockets

USB C: PD and QC 3.0 12V-20V 3A

DC socket: DC5.5/2.5, 12V-24V DC 3A

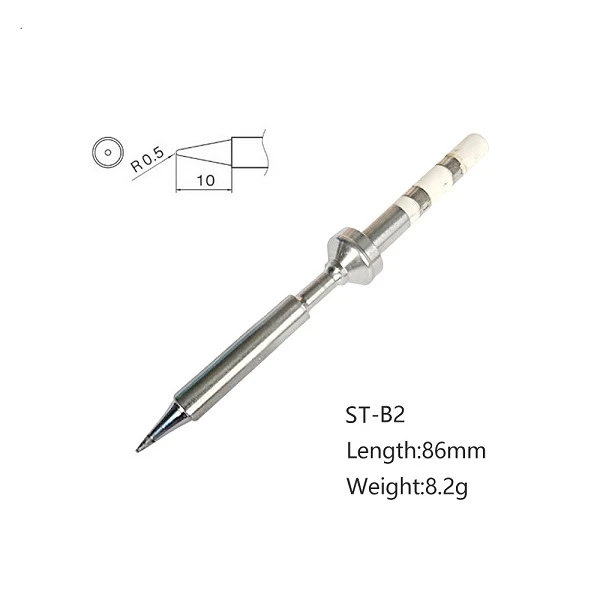

PISTON TIP

Type B2

Length: 86mm

Weight: 8.2g

CERTIFICATES

FCC

CE RED

ROHS

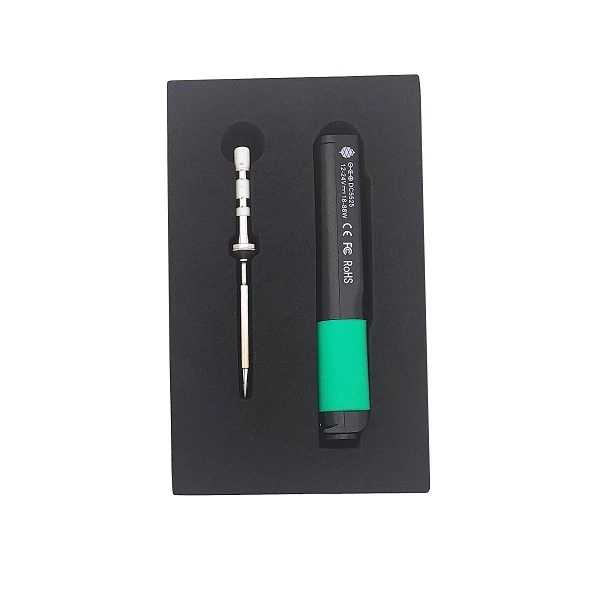

PACKAGE CONTENTS

Pinecil V2 Soldering iron

ST (Short)-B2 Soldering iron tip

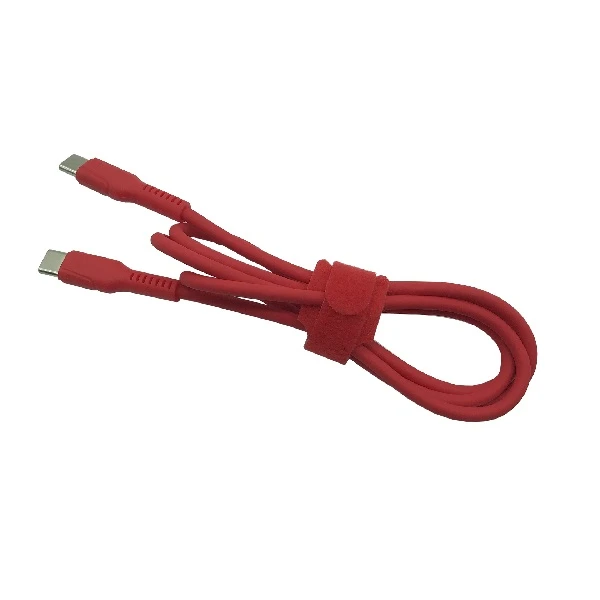

1m Silicone USB-C cable
