SKU:OKYN220512-73
Manufacturer:
Okystar

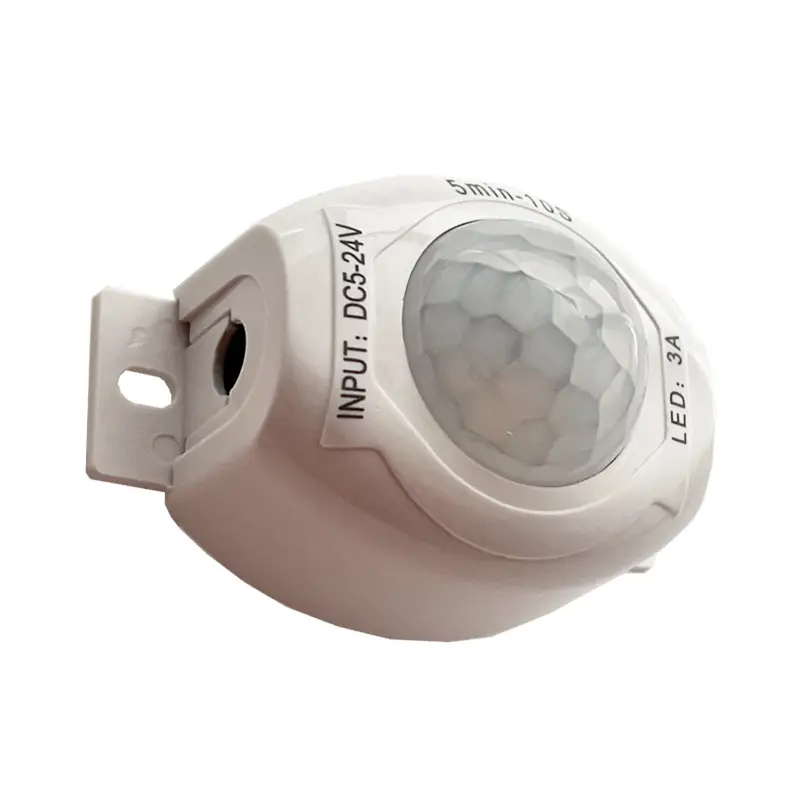

Image is for illustrative purposes only
The Okystar OKYN220512-73 is a compact PIR motion sensor designed for the automatic control of low-voltage LED lighting systems. It activates lights upon detecting motion and deactivates them after a set delay, providing an efficient, hands-free lighting solution.
Key Features
- Automatic Motion Sensing: Reliably detects motion to turn lights on and automatically turns them off after a preset time with no activity.
- Adjustable Controls: Features user-adjustable settings for both the time delay and ambient light sensitivity, allowing for customized operation.
- Wide Voltage Range: Compatible with DC power sources from 5V to 24V, making it suitable for a variety of LED strips and modules.
- Easy Installation: Equipped with standard 5.5mm x 2.1mm DC barrel jack connectors for simple, plug-and-play integration between a power supply and an LED fixture.
Key Features
- Automatic Motion Sensing: Reliably detects motion to turn lights on and automatically turns them off after a preset time with no activity.
- Adjustable Controls: Features user-adjustable settings for both the time delay and ambient light sensitivity, allowing for customized operation.
- Wide Voltage Range: Compatible with DC power sources from 5V to 24V, making it suitable for a variety of LED strips and modules.
- Easy Installation: Equipped with standard 5.5mm x 2.1mm DC barrel jack connectors for simple, plug-and-play integration between a power supply and an LED fixture.
Operating voltage: DC 5-24V
Output voltage: Equal to input voltage
Maximum load current: 5A
Load power: 30W (5V), 72W (12V), 144W (24V)
Connector: 5.5*2.1mm DC
Detection range: 3-5 meters
Detection angle: 120°
Delay time: 30 seconds - 10 minutes (adjustable)
Output voltage: Equal to input voltage
Maximum load current: 5A
Load power: 30W (5V), 72W (12V), 144W (24V)
Connector: 5.5*2.1mm DC
Detection range: 3-5 meters
Detection angle: 120°
Delay time: 30 seconds - 10 minutes (adjustable)
-
