SKU:PITBULL PRO
Manufacturer:
Eldes

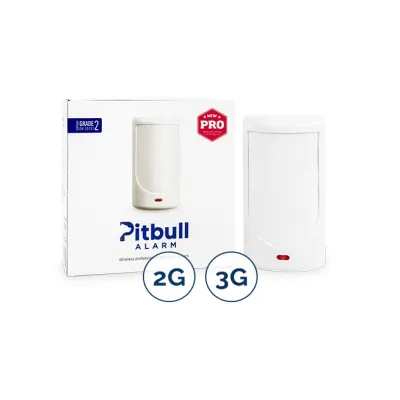

Image is for illustrative purposes only
Pitbull Alarm PRO is a unique security solution integrated into a motion sensor body, functioning as a standalone device or an intrusion alarm panel for up to 16 wireless devices. The system is designed for rapid installation, typically requiring less than 30 minutes for configuration via the intuitive ELDES Utility.
The device utilizes advanced wireless technology with a communication range of up to 3 km in open areas, ensuring reliable operation in large residences or commercial properties. It features encrypted two-way communication on the 868 MHz frequency for enhanced security against signal jamming.
Integrated IP camera support allows users to connect any RTSP-compatible camera to the ELDES Security App, combining video surveillance and intrusion alerts in a single interface. The system provides immediate notifications for unauthorized entry, power outages (supported by a 24-hour backup battery), and communication interference.
Connectivity to monitoring stations is supported via multiple protocols, including SIA IP, Kronos, Kortex SMS, EGR100, and Contact ID. Users can manage the system through a mobile application, physical keypads, keyfobs, or via SMS and voice calls.
The device utilizes advanced wireless technology with a communication range of up to 3 km in open areas, ensuring reliable operation in large residences or commercial properties. It features encrypted two-way communication on the 868 MHz frequency for enhanced security against signal jamming.
Integrated IP camera support allows users to connect any RTSP-compatible camera to the ELDES Security App, combining video surveillance and intrusion alerts in a single interface. The system provides immediate notifications for unauthorized entry, power outages (supported by a 24-hour backup battery), and communication interference.
Connectivity to monitoring stations is supported via multiple protocols, including SIA IP, Kronos, Kortex SMS, EGR100, and Contact ID. Users can manage the system through a mobile application, physical keypads, keyfobs, or via SMS and voice calls.
Supply voltage: 11-15V 500mA max
Current used in idle state: up to 50mA
Back-up battery voltage, capacity: 8.4V; 350mAh
Back-up battery type: Ni-Mh
SIM card type: Nano SIM (1 slot)
GSM modem frequency: 900/1800/2100MHz
Dimensions: 124x67x58mm
Operating temperature range: -10…+40 °C
Humidity: 0-90% RH @ 0… +40°C (0-90% RH @ +32… +104°F)
Back-up battery operating time: up to 24 hours (with ELDES Cloud Services and wireless module disabled)
Detection angle: 90°
Maximum motion detection range: 10m (32.81ft)
Wireless band: ISM868 for Region1 and ISM915 for Region2
Wireless communication range: up to 3000m (9842.5ft) in open areas
Maximum number of wireless devices: 16
Communications: SMS, GPRS Network, CSD
Supported protocols: EGR100, Kronos, Cortex SMS, SIA IP
BELL+ siren output commuted values: Current – 150mA max.; voltage – 15V (on external power) / 7V (on back-up battery)
Current used in idle state: up to 50mA
Back-up battery voltage, capacity: 8.4V; 350mAh
Back-up battery type: Ni-Mh
SIM card type: Nano SIM (1 slot)
GSM modem frequency: 900/1800/2100MHz
Dimensions: 124x67x58mm
Operating temperature range: -10…+40 °C
Humidity: 0-90% RH @ 0… +40°C (0-90% RH @ +32… +104°F)
Back-up battery operating time: up to 24 hours (with ELDES Cloud Services and wireless module disabled)
Detection angle: 90°
Maximum motion detection range: 10m (32.81ft)
Wireless band: ISM868 for Region1 and ISM915 for Region2
Wireless communication range: up to 3000m (9842.5ft) in open areas
Maximum number of wireless devices: 16
Communications: SMS, GPRS Network, CSD
Supported protocols: EGR100, Kronos, Cortex SMS, SIA IP
BELL+ siren output commuted values: Current – 150mA max.; voltage – 15V (on external power) / 7V (on back-up battery)
