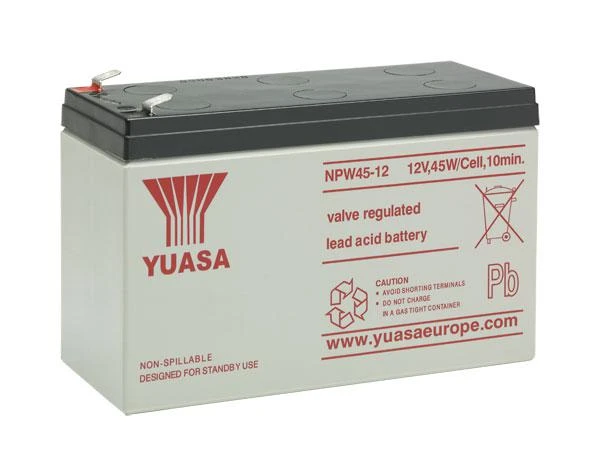

Yuasa NPW45-12 Industrial VRLA Battery
SKU:YU-NPW45-12
Manufacturer:Yuasa
New
Image is for illustrative purposes only
The Yuasa NPW45-12 is a sealed valve-regulated lead-acid (VRLA) battery designed for applications requiring high discharge current.
Key Features
- Sealed Valve-Regulated Lead-Acid (VRLA) design.
- Utilizes Absorbed Glass Mat (AGM) technology, holding electrolyte in a fiberglass separator to prevent acid leakage.
- Virtually maintenance-free operation due to gas recombination system.
- Excellent recovery performance after deep discharge.
- Can be operated in any orientation except continuous upside-down.
- Features lead-calcium grids for extended service life.
- EUROBAT design life of 3-5 years in buffer mode.
Applications
The NPW45-12 battery is suitable for systems requiring high output power for a short duration. This includes applications such as Uninterruptible Power Supply (UPS) systems, emergency lighting, and security systems.
10m rate Constant Power (Typ) to 1.6V/cell at 20°C: 42.8W/Cell
10m rate Constant Power (Typ) to 9.6V at 20°C: 256W/Block
Capacity (10-hr rate to 1.8V/Cell at 20°C): 6.6Ah
Capacity (20-hr rate to 1.75V/Cell at 20°C): 7.5Ah
Case Material: ABS (UL94:HB), FR version available (UL94:V0)
Cyclic (or Boost) charge Voltage at 20°C: 14.5V (±3%)
Design Life (EUROBAT Standard Commercial): 3-5 years
Float charge voltage at 20°C: 13.65V (±1%)
Height: 94mm (±1)
Height over terminals: 97.5mm (±2)
Internal Resistance (Measured at 1 kHz): 24 mΩ
Length: 151mm (±1)
Mass: 2.7Kg
Nominal voltage: 12V
Operating Temperature Range (Charge): 0°C to +40°C
Operating Temperature Range (Discharge): -15°C to +50°C
Operating Temperature Range (Storage in fully charged condition): -15°C to +40°C
Technology: VRLA, AGM
Terminal Type: FASTON - Quickfit / release 6.35mm (F2)
Width: 65mm (±1)
