MINI PIC-PLC APPLICATION MODULE

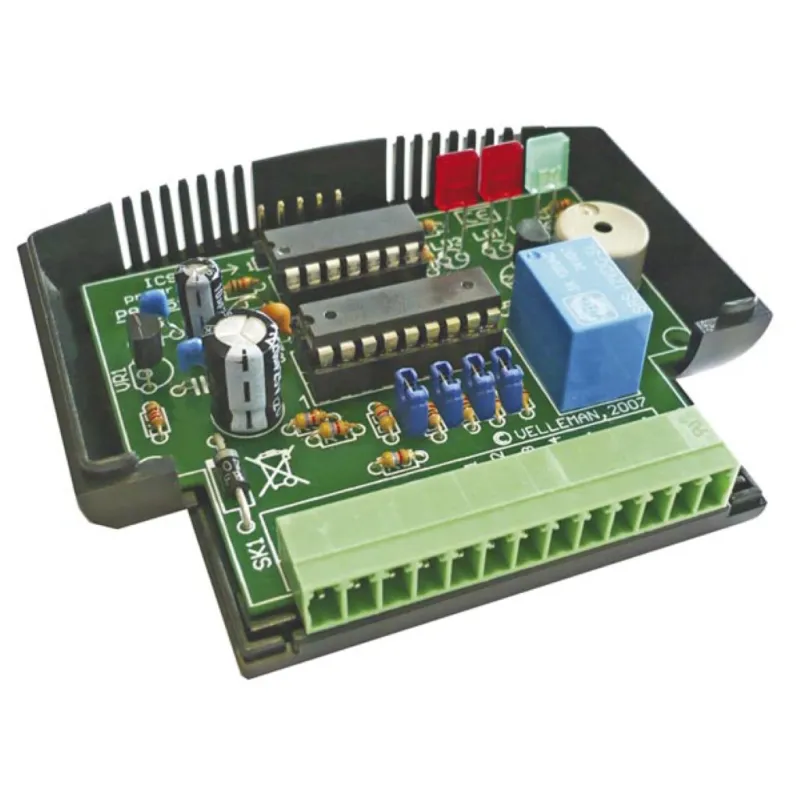

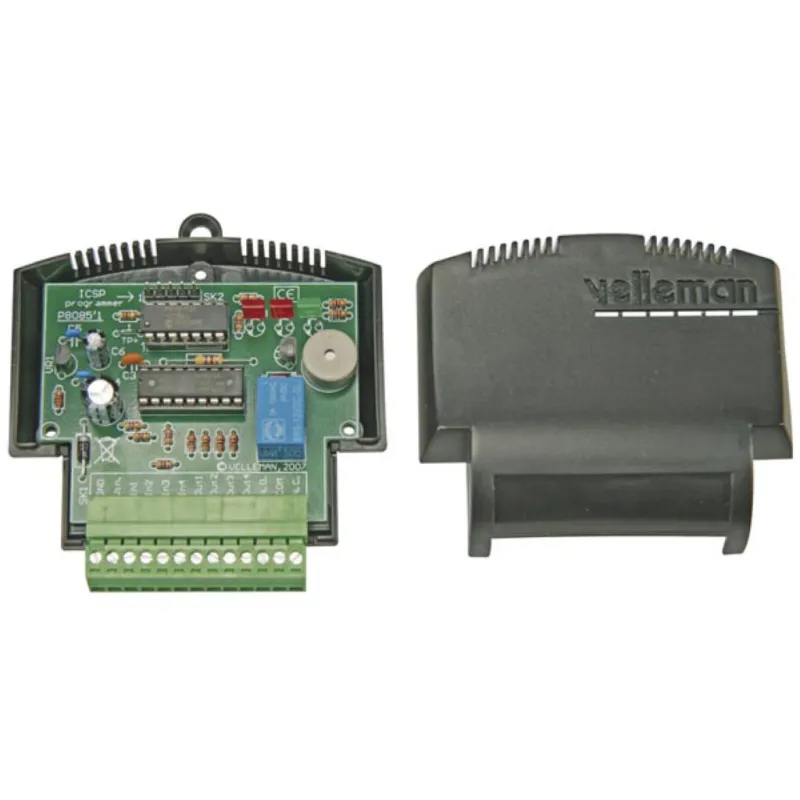

This application module may seem small but is big in performance - all depends on your programming skills. Now you can create your own custom application without the hassle of making the hardware. All the buffered inputs and outputs are ready-made for you. The module features on-board LED, a relay output and a buzzer. Make your own automation, controller, car application… All you need is one of our programmers like [product name=VM134]vm134[/product] or [product name=K8076]K8076[/product]
Features:

9 free programmable I/Os (4 in-, 5 outputs)
PIC16F630 microcontroller from Microchip® on-board
LED indication for power supply and relay output
1 free programmable LED indication
on-board mini buzzer for audible signals
on-board ICSP™ connector for programming
PIC™ programmer supports PIC16F630

Specifications:

power supply: 12V DC (unregulated) / 100mA
4 inputs (voltage sensing inputs)
input signal voltage: 5 - 24VDC, @ 4K7
4 NPN transistor outputs (open-collector, sink outputs).:
transistor output current: max. 100mA each
direct 12V relay drive possible (no need for protection diode)
1 relay output with NO/NC contact (2A)
MCU speed: fixed 4MHz internal oscillator
dimensions: 80 x70 x 25mm / 3.15 x 2.75 x 0.98"
