2,4 GHz NRF24L01 WIRELESS TRANCEIVER MODULE (2pcs)

SKU:WPI322
2,4 GHz NRF24L01 WIRELESS TRANCEIVER MODULE (2pcs)

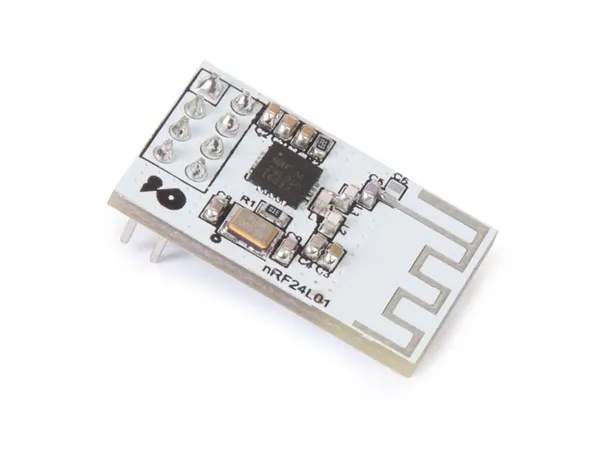

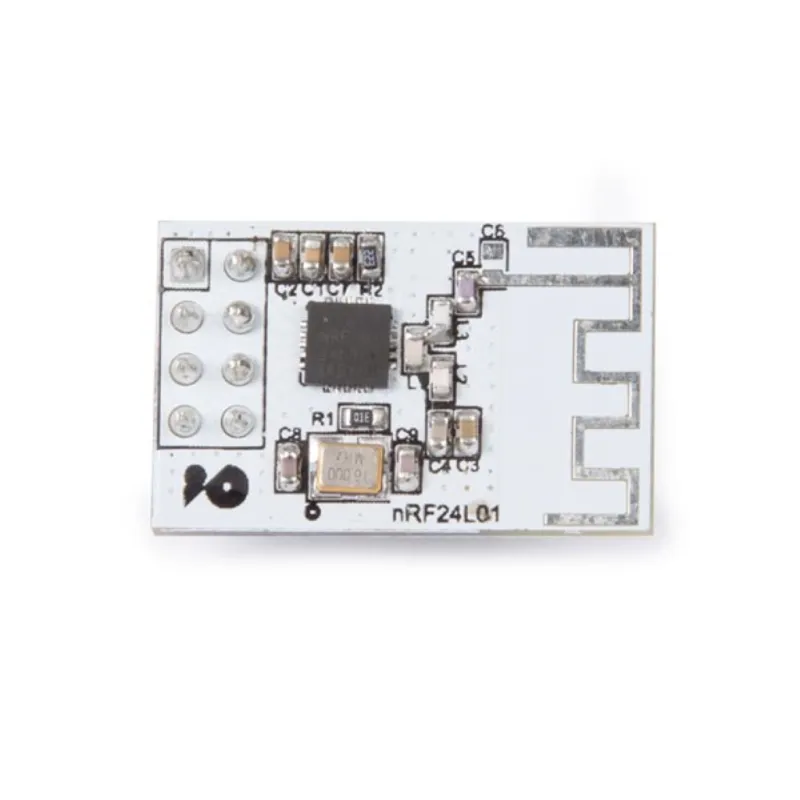

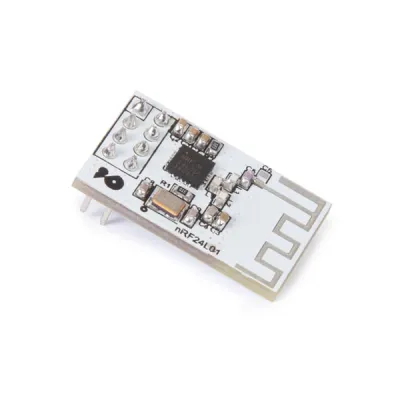

Image is for illustrative purposes only
This module based on Nordic nRF24L01, highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.
Features:
    worldwide license-free 2.4 GHz ISM band operation
    250 kbps, 1 Mbps and 2 Mbps on-air data-rate options
    enhanced ShockBurst™ hardware protocol accelerator
    ultra low power consumption - months to years of battery lifetime
Specifications:
    power supply: 1.9 - 3.6 V
    IO port working voltage: 0 - 3.3 V
    transmitting rate: +7 dB
    receiving sensitivity: < 90 dB
    transmission range: 250 m in open area
    dimensions: 15 x 29 mm
nrf24l01_datasheet.pdf
Download
vma322_scheme.pdf
Download
vma322_example.zip
Download
