SKU:PT1195-ET
Manufacturer:
PeakTech
Image is for illustrative purposes only

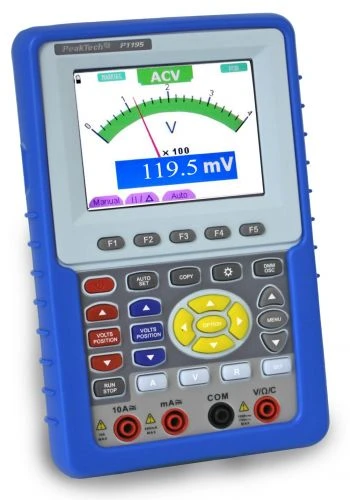

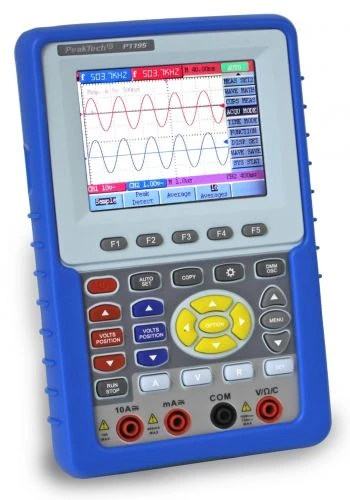

The **PeakTech 1195** is a combination of a **digital storage oscilloscope** with two channels via BNC sockets and **100 MHz bandwidth** and a digital multimeter with 4mm safety sockets for measurements of direct and alternating voltage, direct and alternating current, capacitance and resistance. The display of the multimeter shows **4000 digital digits** and has an additionally simulated analog scale with pointer, which switches automatically depending on the measuring function and range.
Measurement data from the oscilloscope and the multimeter can be recorded using a **USB stick** and can be evaluated on the PC using the **included software**. The control of all measurement functions is user-friendly via a **graphical user interface** and it is available in various system languages, which are shown on the large color display with **640x480 pixels**.
Measurement data from the oscilloscope and the multimeter can be recorded using a **USB stick** and can be evaluated on the PC using the **included software**. The control of all measurement functions is user-friendly via a **graphical user interface** and it is available in various system languages, which are shown on the large color display with **640x480 pixels**.
Sampling 1 CH:: 1 GS/s Sampling 2 CH:: 500 MS/s
USB:: ■
Bandwidth:: 100 MHz Battery:: Li-Po 7,4 V 3500 mAh
Channels:: 2 CH Display Type:: Color-TFT
Hor. scale max.:: 100 s/div
Hor. scale min.:: 5 ns/div
Mains voltage:: 110/240 V AC; 50/60 Hz
Memory depth:: 6.000 Points Resolution:: 640 x 480 Pixel Rise Time:: < 3.5 ns
Screen size (TFT):: 9,7cm (3,8") Vert. resolution:: 8 Bit
Vert. scale max.:: 5 V/div
Vert. scale min.:: 5 mV/div
Integr. DMM:: ■

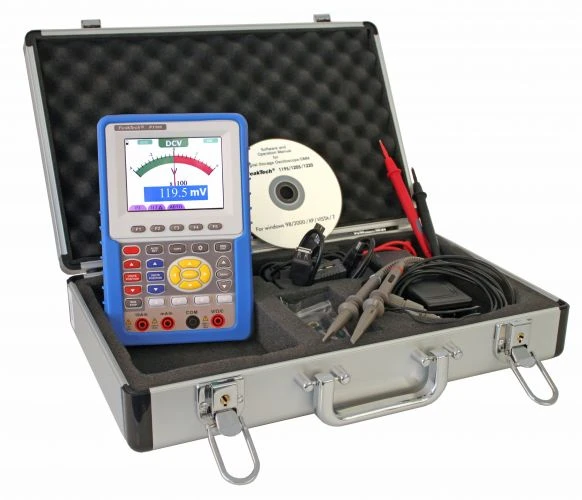

2-channel 100 MHz oscilloscope with 1 GS / s sampling rate 9.7 cm (3.8 ”) TFT color display (640x480) 65535 colors Automatic measurement modes (Freq., Mean, Vbase, Vrms ...) 100 MHz frequency counter with 6 digital digits Memory length of 6000 points per channel Auto set and auto scale function for waveforms XY mode and FFT function True RMS digital multimeter(4000 counts) Voltage, current, resistance and capacitance measurement Safety: EN 61010-1; CAT II 400 V Accessories: AC-DC adapter, probes, test leads, USB interface cable, software CD, carrying case and manual
2-channel 100 MHz oscilloscope with 1 GS / s sampling rate 9.7 cm (3.8 ”) TFT color display (640x480) 65535 colors Automatic measurement modes (Freq., Mean, Vbase, Vrms ...) 100 MHz frequency counter with 6 digital digits Memory length of 6000 points per channel Auto set and auto scale function for waveforms XY mode and FFT function True RMS digital multimeter(4000 counts) Voltage, current, resistance and capacitance measurement Safety: EN 61010-1; CAT II 400 V Accessories: AC-DC adapter, probes, test leads, USB interface cable, software CD, carrying case and manual
-
