Handheld oscilloscope 20 MHz / 1 CH, 100 MS / s

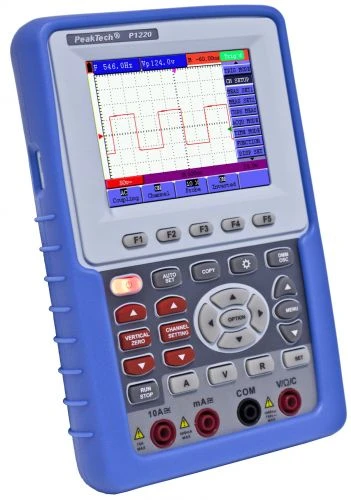

The **PeakTech 1220** is a combination out of a digital storage **oscilloscope** with one channel via BNC socket and **20 MHz** bandwidth and a digital **multimeter** with 4mm safety sockets for measurements of direct and alternating voltage, direct and alternating current, capacitance and resistance.

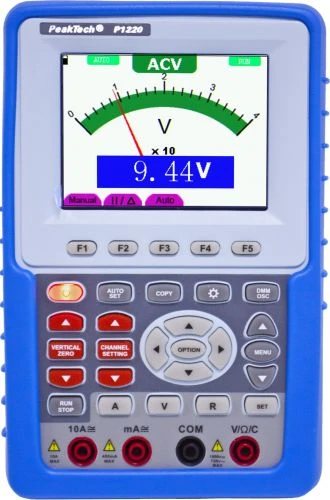

The display of the **True RMS** multimeter shows **4000 digits** and has an additionally simulated analog scale with pointer, which switches automatically depending on the measuring function and range.
Measurement data from the oscilloscope and the multimeter can be recorded using a **USB stick** and can be evaluated on the PC using the **included software**.
The control of all measurement functions is user-friendly via a **graphical interface** and it is available in various system languages, which are shown on the **color display** which owns a resolution of **640x480 pixels**.
