SKU:64695-GBY
Manufacturer:
Lapp Mobility

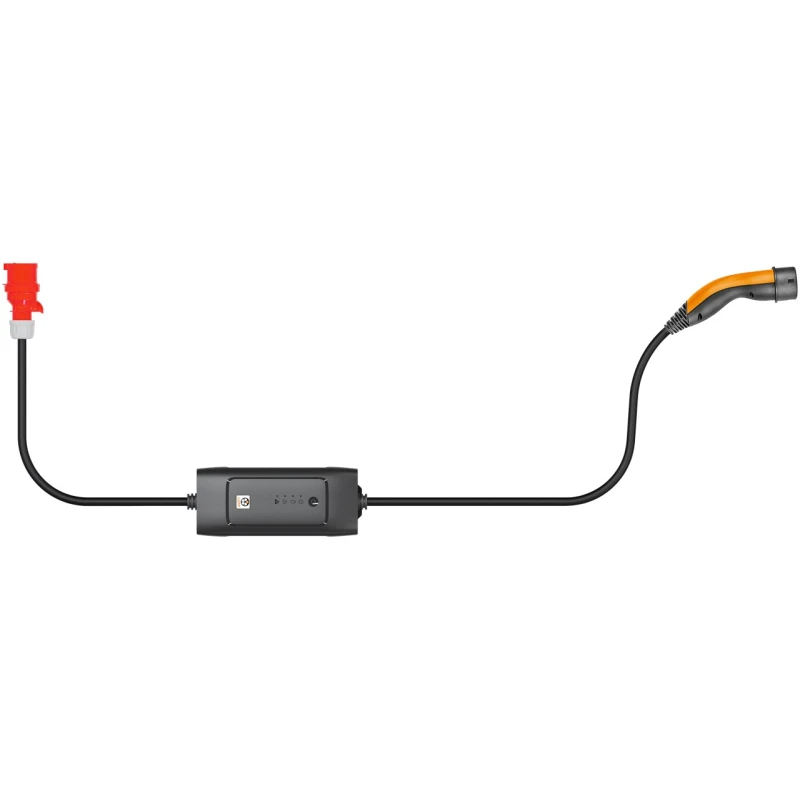

(5555921007) 16 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
The LAPP Mode 2 charger provides simple, mobile charging via CEE sockets and is ideal in the garage at home or on the road
Ideal for charging with up to 11 kW from 3-phase CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector
Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
Cover caps on the plug and coupling protect against the ingress of dust, dirt and water in between charges
Oil-resistant EV charging cable at a nominal voltage of 110-400 V (AC) and an operating temperature of -25 °C to 45 °C
The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.

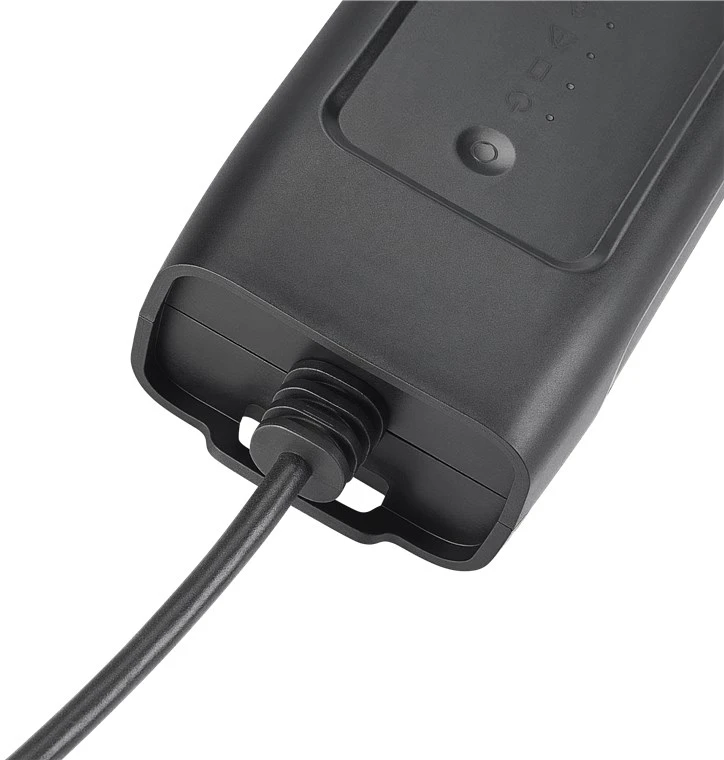

Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
The LAPP Charging Station Basic directly connects your EV to the power source - providing full flexibility via CEE plug.
Simply connect the Type 2 coupling of the cable to the car and the plug to the socket.
The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
The LAPP Mode 2 charger provides simple, mobile charging via CEE sockets and is ideal in the garage at home or on the road
Ideal for charging with up to 11 kW from 3-phase CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector
Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
Cover caps on the plug and coupling protect against the ingress of dust, dirt and water in between charges
Oil-resistant EV charging cable at a nominal voltage of 110-400 V (AC) and an operating temperature of -25 °C to 45 °C
The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
The LAPP Charging Station Basic directly connects your EV to the power source - providing full flexibility via CEE plug.
Simply connect the Type 2 coupling of the cable to the car and the plug to the socket.
The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Connection 2, type: CEE plug red, 5-pole, 3-phase/16 A
Cable type: smooth cable
Material cable sheath: ÖLFLEX®CHARGE
Connection, type: type 2 female plug
Color version: black
Color: black
Packaging type: Retail Box
Loading capacity up to: 11 kW
Charging mode: Mode 2
Rated voltage: 440 V (AC)
Number of phases: 3
Cable length: 6 m
Inner conductor cross-section: 2.5 mm²
max current capacity: 16 A
Markings: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
SCIP no.: 3a4e482d-e540-4f53-809f-2c47435e56ba
chemical substance: Pb, Dechlorane Plus
CAS no.: 7439-92-1 | 13560-89-9
Cable type: smooth cable
Material cable sheath: ÖLFLEX®CHARGE
Connection, type: type 2 female plug
Color version: black
Color: black
Packaging type: Retail Box
Loading capacity up to: 11 kW
Charging mode: Mode 2
Rated voltage: 440 V (AC)
Number of phases: 3
Cable length: 6 m
Inner conductor cross-section: 2.5 mm²
max current capacity: 16 A
Markings: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
SCIP no.: 3a4e482d-e540-4f53-809f-2c47435e56ba
chemical substance: Pb, Dechlorane Plus
CAS no.: 7439-92-1 | 13560-89-9
