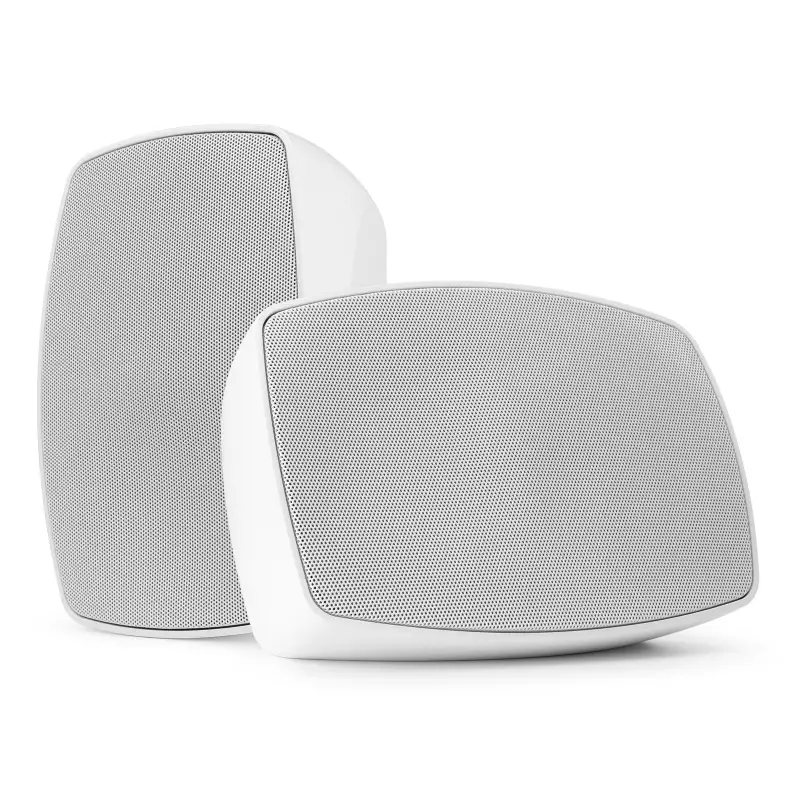

BHW50WH Speaker Set In/Outdoor 5" 80W 100V White
SKU:TR952.190OS
Image is for illustrative purposes only

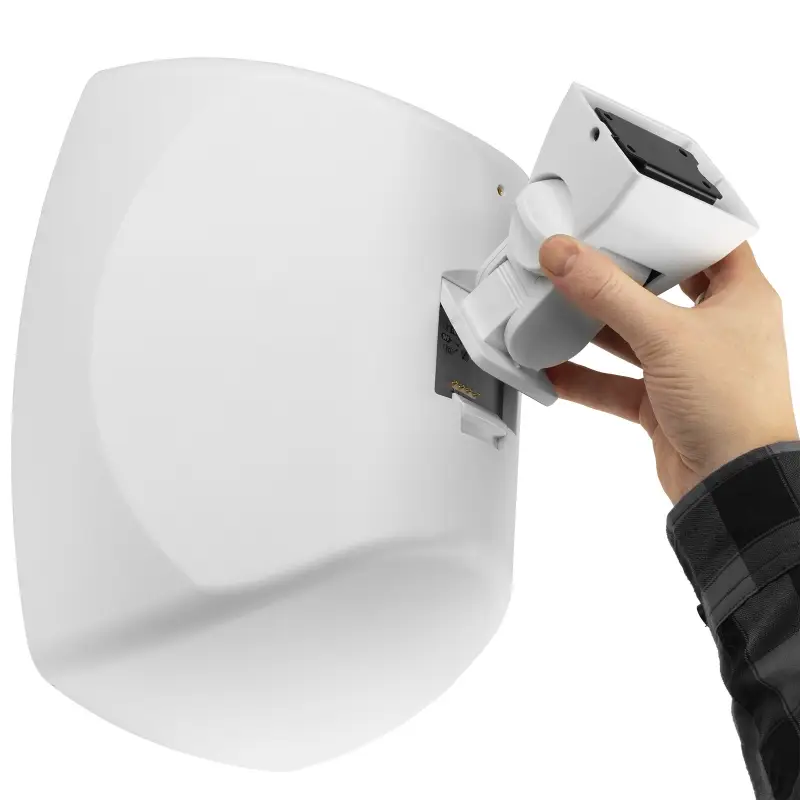

The BHW speaker series is designed for both residential and commercial use and is built to withstand exposure to water without compromising sound quality. The grille is constructed from marine grade aluminium and painted with long lasting industrial strength powder coat to withstand harsh environments. Thanks to the specially-designed bracket, you can easily adjust the speaker both horizontally and vertically, ensuring optimal sound projection in any environment. Ideal for outdoor events, swimming pools, terraces, garden areas and marine or boat use.
Brand: Power Dynamics
Speaker type: Passive (non-amplified)
Product colour: White
Output power: Max: 80W
Output power: RMS: 40W
Tweeter type: Dome
Diameter tweeter: 1/2"
Diameter woofer: 5.25"
Magnet type: Ferrite
Impedance: 8 Ohm, 70V, 100V
Tappings power (100V): 7.5W, 15W, 30W
Tappings power (70V): 3.75W, 7.5W, 15W, 30W
Frequency response (± 3dB): 85Hz - 20kHz
Frequency response (-10dB): 75Hz - 20kHz
SPL @ 1W/1m: 87dB
SPL max @ 8Ω: 103dB
SPL max @ 100V: 101dB
Dispersion: 120°
IP rating: IPX5
Operating temperature: -20 °C ~ 60 °C
Dimensions (L x W x H): 250 x 175 x 156mm
Weight (kg): 1.6

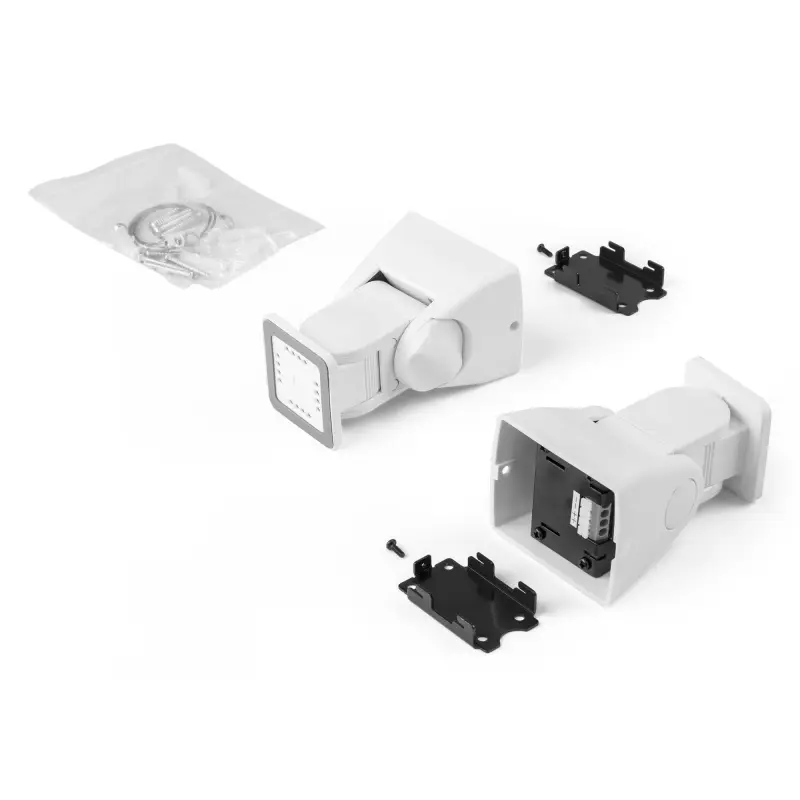

Included accessories: Mounting bracket
Speaker type: Passive (non-amplified)
Product colour: White
Output power: Max: 80W
Output power: RMS: 40W
Tweeter type: Dome
Diameter tweeter: 1/2"
Diameter woofer: 5.25"
Magnet type: Ferrite
Impedance: 8 Ohm, 70V, 100V
Tappings power (100V): 7.5W, 15W, 30W
Tappings power (70V): 3.75W, 7.5W, 15W, 30W
Frequency response (± 3dB): 85Hz - 20kHz
Frequency response (-10dB): 75Hz - 20kHz
SPL @ 1W/1m: 87dB
SPL max @ 8Ω: 103dB
SPL max @ 100V: 101dB
Dispersion: 120°
IP rating: IPX5
Operating temperature: -20 °C ~ 60 °C
Dimensions (L x W x H): 250 x 175 x 156mm
Weight (kg): 1.6
Included accessories: Mounting bracket
