SKU:PY0105P

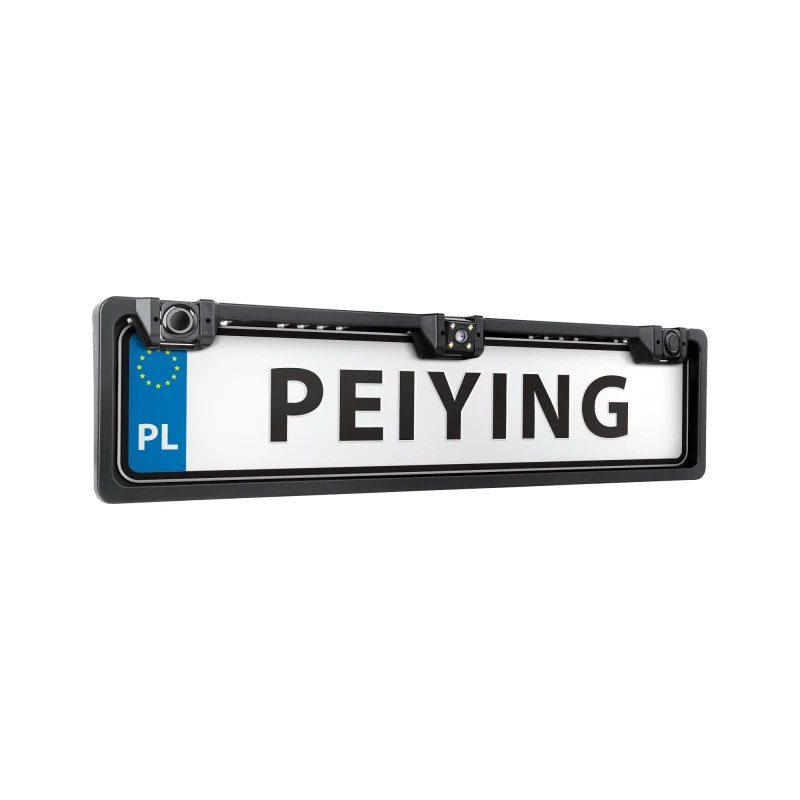

Peiying Car Reversing Camera with Parking Sensor in License Plate Frame
Image is for illustrative purposes only
Peiying Car Reversing Camera with Parking Sensor in License Plate FrameIntroduction: Comfort and safety during parking are crucial for every driver. The Peiying car reversing camera with parking sensor in the license plate frame is the perfect solution for those who want to increase the precision of maneuvers and avoid dangerous situations. High image qualityThe Peiying reversing camera is equipped with a CMOS sensor with a resolution of 648x488 px and a wide viewing angle of 140 degrees, which ensures excellent visibility and image detail. The minimum illumination level of 0.3 Lux allows for safe parking even in low light. The automatic camera activation system when reverse gear is engaged and the mirrored image make the device easy to use and improve user comfort.
Precise parking sensorsThe integrated parking sensors emit a sound signal of varying intensity, warning of obstacles near the vehicle. The sensors with a diameter of 22 mm have a range from 0.3 to 2 meters and allow the detection of obstacles vertically and horizontally, which increases the accuracy and efficiency of the parking system. The alarm sound level of 65 dB and the communication frequency of 40 kHz provide clear and effective warnings. Durability and easy installationThe camera and sensors have a high degree of protection IP67, which ensures their resistance to water and dust. The device operates in a wide temperature range from -20°C to 70°C, which guarantees reliability in various weather conditions. Dynamic guide lines and an alarm in the range of 0 to 2 meters facilitate precise parking.

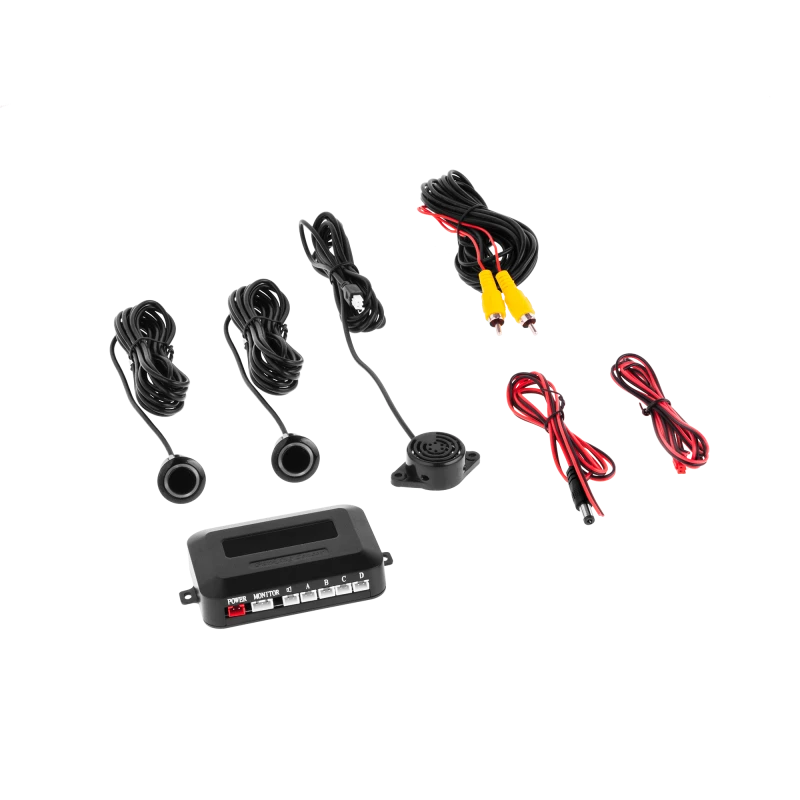

The set includes all the necessary accessories: camera in the license plate frame, two sensors, control unit, AV cables, power cables, buzzer and user manual, which ensures simple and quick installation.
Camera
Sensor: 1 CMOS (color)
Resolution: 648x488 px
Viewing angle: 140 degrees
Min. illumination: 0.3 Lux
Video output: CVBS 1.0 V (p-p) / 75 Ohm
Power consumption: < 1 W
Sensors
Audible signal with variable intensity
Alarm sound level: 65 dB
Sensor diameter: 22 mm
Sensor range: 0.3~2 m
Vertical detection: >70o
Horizontal detection: >80o
Communication frequency: 40 kHz
Max. power consumption: 0.5 W
Color: black
General

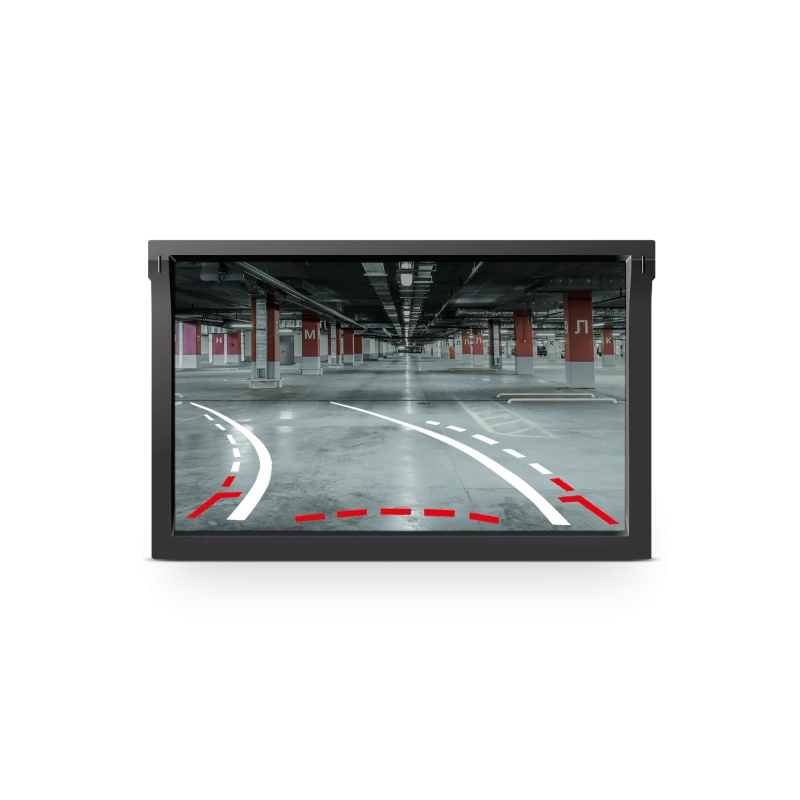

Movable guide lines
Line range: 0.4 – 2 m
Alarm range: 0 – 2 m
TV system: PAL
Mirrored image
Automatic activation in reverse gear
S/N ratio: 48 dB
Operating temperature: -20oC~70oC
Storage temperature: -30oC~80oC
Protection rating: IP67
Power supply: 9-15 V; 500 mA
Included: camera in license plate frame with two sensors, control unit, 2x AV cable, 2x power cable, buzzer, user manual
