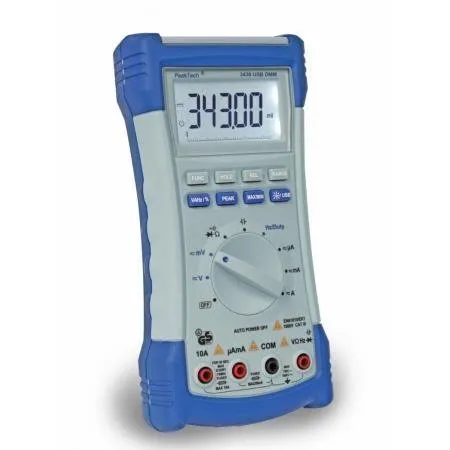

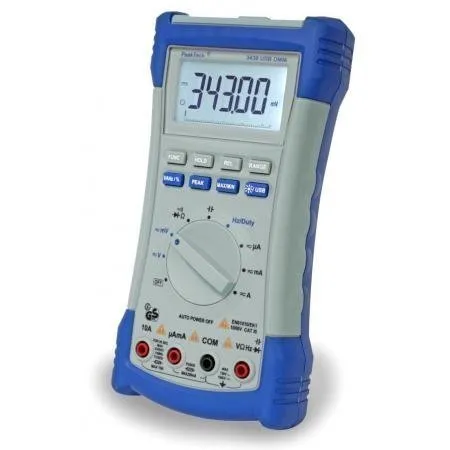

Multimeter PeakTech 3430 ACA/DCA/ACV/DCV/R/C/f USB CAT III 1000V

  • SKU: PT3430-ET
  • PeakTech
Pealadu
Tallinn, Peterburi tee 90F
0 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
0 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
0 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 pcs

New constructed high-class digital multimeter with 4 1/2-digit multifunction display (max. 22000), 46-segment analogue bargraph and integrated USB-interface for easy connection with computer to realize macro recording, monitoring and capture of transient dynamic data. Full input protection, backlight and easy operating for choosing several measurement functions with the help of the clear view pushbutton section. The True RMS AC voltage and current readings are other most important features of this new constructed multimeter.


21 mm, 4 1/2-digit LCD-display, backlight and 46-segment bargraph; max. display: 22000

Fully "PeakTech DMM Tool" compatible

True RMS measurement for ACV and ACA

USB 2.0- interface to transmit measuring data to the PC

Sampling Rate: ca. 4x/sec. (2x/sec. via USB)

Diode-, continuity-test

Peak detect

DATA-, MAX-, MIN-HOLD

Relative function

Auto and manual range selection

Auto power off and low battery indication

Safety: EN 61010-1, CAT III 1000V/ CAT IV 600V

DCV 220 mV/2,2/22/220/1000 V; 0,01 mV; +/- 0,05 % + 3 dgt.

ACV 220 mV/2,2/22/220/700 V; 0,01 mV; +/- 0,8 % + 4 dgt. / frequency range: 40 ... 400 Hz

DCA 220/2200 µA/22/220 mA/10 A; 0,01 µA; +/- 0,8 % + 4 dgt.

ACA 220/2200 µA/22/220 mA/10 A; 0,01 µA; +/- 1,0 % + 3 dgt. / frequency range: 40 ... 400 Hz

Ohm 200 Ω/2,2/22/220 kΩ/2,2/22/220 MΩ; 0,01 Ω; +/- 0,8 % + 2 dgt.

Capacitance 22/220 nF/2,2/22/220 µF/2,2/22/220 mF; 0,01 nF; +/- 2,5 % + 3 dgt.

Frequency 22/220 Hz/2,2/22/220 kHz/2,2/22/220 MHz; 0,01 Hz; +/- 0,2 % + 3 dgt.

Operation voltage 4 x 1,5 V (AA) batteries

Dimensions (WxHxD) 102 x 205 x 58 mm

Weight 390 g

PT3430 User Manual ENDownload
PT3430 User Manual ET198.98KBDownload
Kiirjuhis multimeetrite ja ampertangide kasutamiseks ET235.34KBDownload
