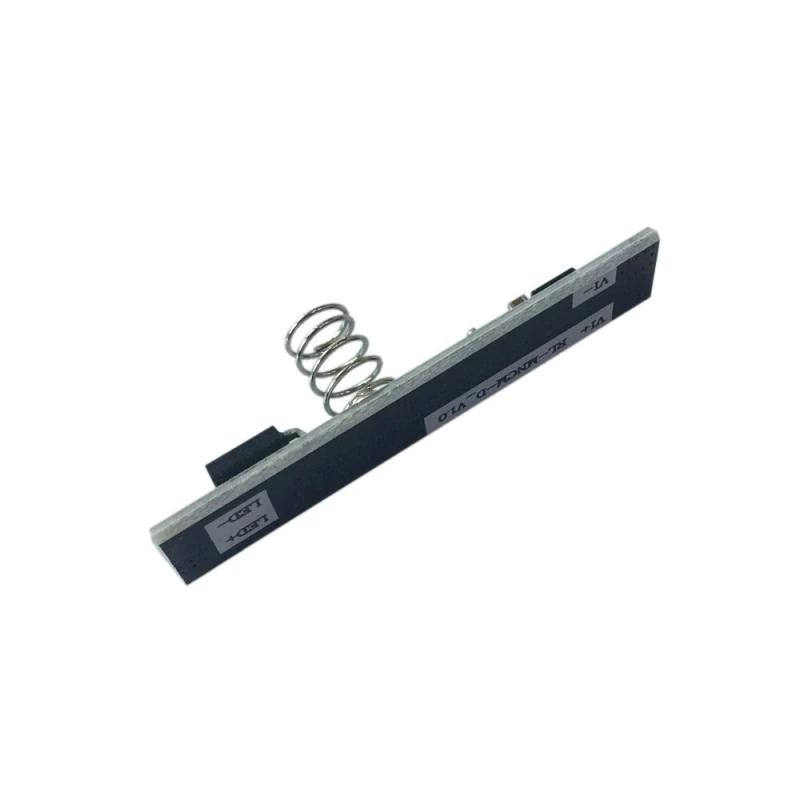

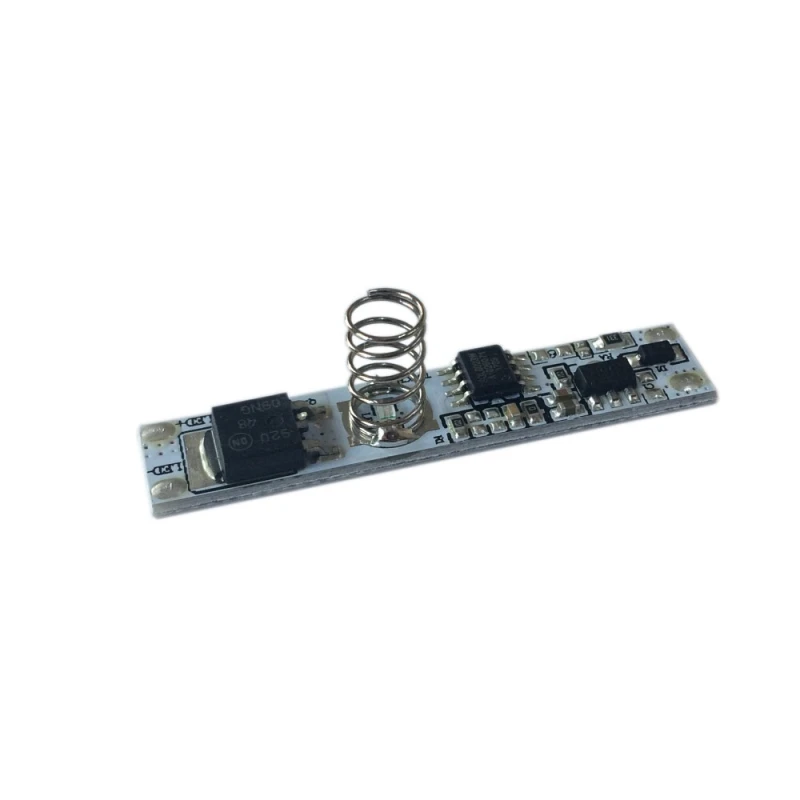

Touch switch 12-24V 6A, profile, solder terminals

Technical specifications:

Input Voltage: 12V-24V DC
Current: 6A
Power: 12V/72W, 24V/144W
Dimensions: 45x10x5-10mm (height adjustable by spring)
Weight: about 2g
Operating Temperature: -20...+40°C
Compatibility: Single-color LED strips

Installation:

The switch can be installed on any profile with an internal width of at least 10 mm.

It is best to solder the LED strip to one side and the power wires to the other side.

It is best if the LED profile has a glass diffuser, so that the switch is covered with the diffuser and the spring touches the diffuser.

The spring can be connected to a metal surface (profile). In this way, we can control the switch by touching the glass where the switch is, or the metal surface (if the spring is in contact with it).
