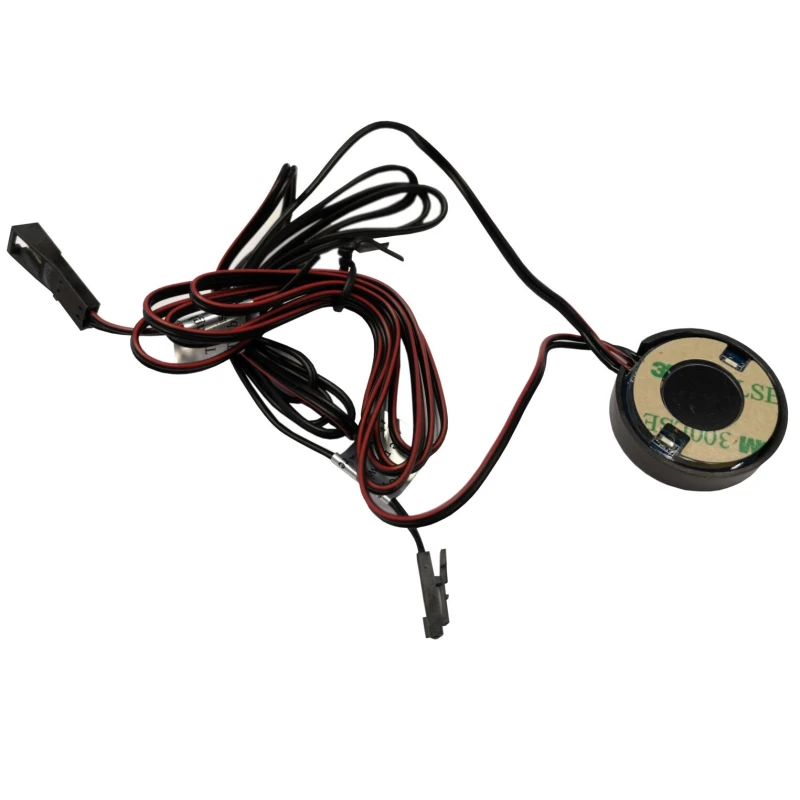

Touch switch for mirror 12-24V 4A up to 5mm 1m wire
SKU: S-MS001
- 18.00 €
-
- Customer price 17.10 € -5%
- Log in and get at least a 5% discount
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
4 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
2 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 pcs
The module is designed for switching on and off both LED and traditional 12V or 24V DC lighting, as well as adjusting brightness.

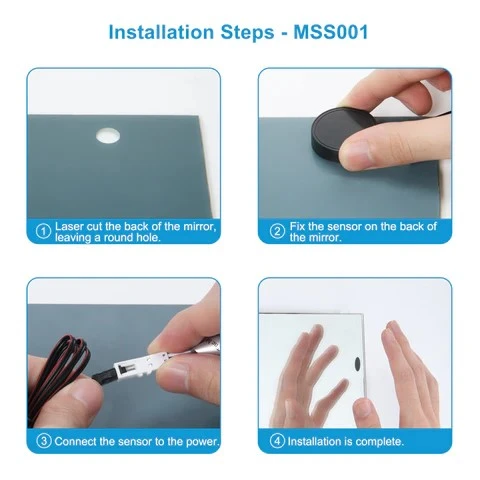

The device is designed to be installed on the back of a mirror up to 5 mm thick.
A short touch turns the lighting on and off.
It has a last brightness level memory. If the device is in the off position when power is applied, the first short touch turns the light on.

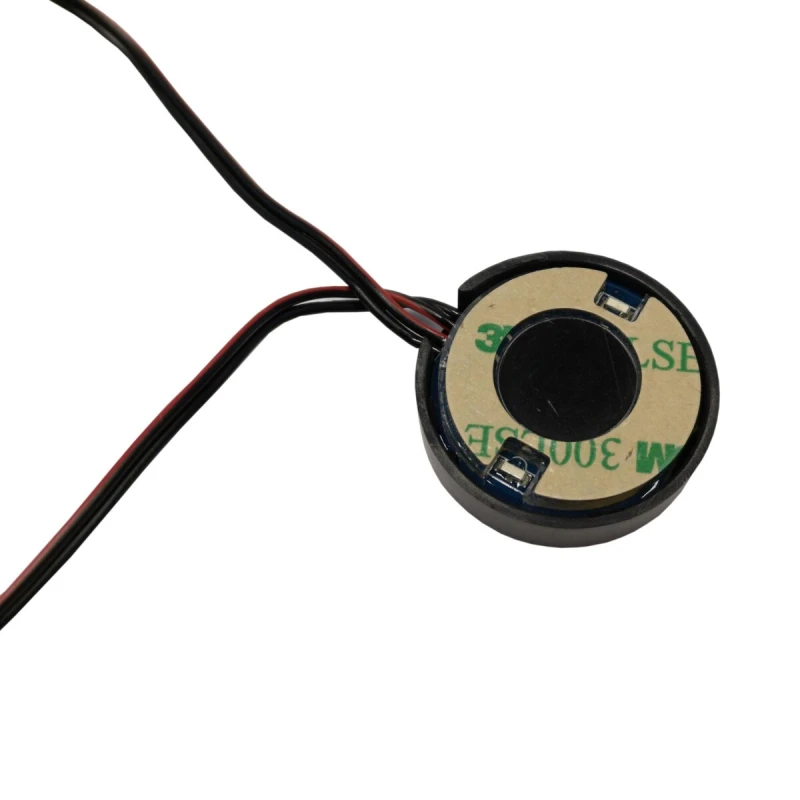

The switch has a blue ring-shaped illumination, assuming proper installation on the inside of the mirror.
Technical data:
Dimensions: 35x9mm
Permitted mirror thickness: up to 5mm
Maximum current: 4A
Maximum power: 12V/48W, 24V/96W
Input voltage: 12V...24V DC
Luminous intensity adjustment: 3% to 100%
Memory function when maintaining input voltage. Cable length: about 1m
Illumination: YES (blue/red)
Permitted mirror thickness: up to 5mm
Maximum current: 4A
Maximum power: 12V/48W, 24V/96W
Input voltage: 12V...24V DC
Luminous intensity adjustment: 3% to 100%
Memory function when maintaining input voltage. Cable length: about 1m
Illumination: YES (blue/red)
| Type | Puutelüliti |
