Rocker switch 2*ON-OFF-ON 250V 10A
SKU:R906C

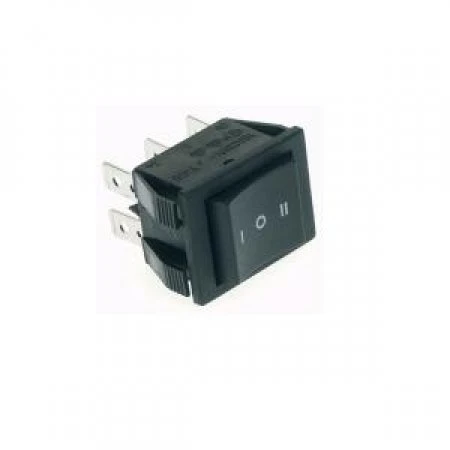

Image is for illustrative purposes only
This is a versatile rocker switch with two independent ON-OFF-ON DPDT functions.
Specifications type: ON-OFF-ON DPDT
Cap: black
Remark: I/O/II
Contact rating: 15A/250Vac, 16A/125Vac
Electrical life: 20000 cycles
Mechanical life: 50000 cycles
Contact resistance: 50mohm
Insulation resistance: min. 100Mohm at 500Vdc
Dielectric strength: 1500Vac / 1 minute
Materials:
Housing: 66 nylon (UL94V-2)
Actuator: 66 nylon (UL94V-2)
Movable contacts: copper, silver-plated
Stationary contacts: copper, silver-plated
Terminals: copper, silver-plated
Contact: spring-loaded
Specifications type: ON-OFF-ON DPDT
Cap: black
Remark: I/O/II
Contact rating: 15A/250Vac, 16A/125Vac
Electrical life: 20000 cycles
Mechanical life: 50000 cycles
Contact resistance: 50mohm
Insulation resistance: min. 100Mohm at 500Vdc
Dielectric strength: 1500Vac / 1 minute
Materials:
Housing: 66 nylon (UL94V-2)
Actuator: 66 nylon (UL94V-2)
Movable contacts: copper, silver-plated
Stationary contacts: copper, silver-plated
Terminals: copper, silver-plated
Contact: spring-loaded
Switch.method
2*ON-OFF-ON
Color
black
Contact current rating
10A/250V
Variant
Rocker switch
