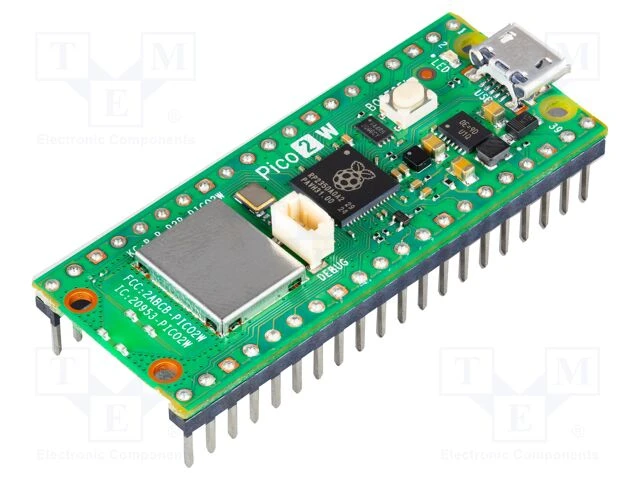

Raspberry Pi Pico 2 WH
SKU:SC1634
Manufacturer:Raspberry Pi
New
The Raspberry Pi Pico 2 WH (SC1634) is a high-performance microcontroller board built around the Raspberry Pi RP2350 chip, the successor to the popular RP2040. It offers enhanced performance and functionality while maintaining hardware and software compatibility with the Raspberry Pi Pico series.
Key Features
- **Processor:** Features a dual-core processor with selectable Arm Cortex-M33 or RISC-V Hazard3 cores, operating at speeds of up to 150 MHz.
- **Memory:** Includes integrated 520 KB SRAM and 4 MB QSPI flash memory for robust application development.
- **Wireless Connectivity:** Equipped with 2.4 GHz 802.11n Wi-Fi and Bluetooth 5.2 capabilities, powered by an onboard Infineon CYW43439 module.
- **Pre-soldered Headers:** This WH version comes with pre-soldered headers, simplifying integration with breadboards and other peripherals without the need for additional soldering.
Applications
The board is ideally suited for a wide range of projects, including Internet of Things (IoT) devices, smart home applications, robotics, educational initiatives, and embedded system development.
Key Features
- **Processor:** Features a dual-core processor with selectable Arm Cortex-M33 or RISC-V Hazard3 cores, operating at speeds of up to 150 MHz.
- **Memory:** Includes integrated 520 KB SRAM and 4 MB QSPI flash memory for robust application development.
- **Wireless Connectivity:** Equipped with 2.4 GHz 802.11n Wi-Fi and Bluetooth 5.2 capabilities, powered by an onboard Infineon CYW43439 module.
- **Pre-soldered Headers:** This WH version comes with pre-soldered headers, simplifying integration with breadboards and other peripherals without the need for additional soldering.
Applications
The board is ideally suited for a wide range of projects, including Internet of Things (IoT) devices, smart home applications, robotics, educational initiatives, and embedded system development.
CPU: Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @ 150 MHz
Connectivity: 2.4 GHz 802.11n wireless LAN and Bluetooth 5.2
Debug Port: 3-pin ARM serial wire debug (SWD) port
Form factor: 21 mm × 51 mm
GPIO Pins: 26 multi-purpose GPIO pins, including 3 ADC-capable pins
Headers: Pre-soldered headers
I2C controllers: 2
Input power: 1.8–5.5V DC
Memory: 520 KB on-chip SRAM; 4 MB on-board QSPI flash
Microcontroller: Raspberry Pi RP2350
Operating temperature: -20°C to +85°C
PIO state machines: 12
PWM channels: 24
SPI controllers: 2
UART: 2
USB 1.1 controller and PHY: 1 (with host and device support)
Wireless Chip: Infineon CYW43439
Connectivity: 2.4 GHz 802.11n wireless LAN and Bluetooth 5.2
Debug Port: 3-pin ARM serial wire debug (SWD) port
Form factor: 21 mm × 51 mm
GPIO Pins: 26 multi-purpose GPIO pins, including 3 ADC-capable pins
Headers: Pre-soldered headers
I2C controllers: 2
Input power: 1.8–5.5V DC
Memory: 520 KB on-chip SRAM; 4 MB on-board QSPI flash
Microcontroller: Raspberry Pi RP2350
Operating temperature: -20°C to +85°C
PIO state machines: 12
PWM channels: 24
SPI controllers: 2
UART: 2
USB 1.1 controller and PHY: 1 (with host and device support)
Wireless Chip: Infineon CYW43439
-
