Raspberry Pi Compute Module 5 (CM5004064) 4GB RAM 64GB eMMC
SKU:4575869
Manufacturer:Raspberry Pi
New

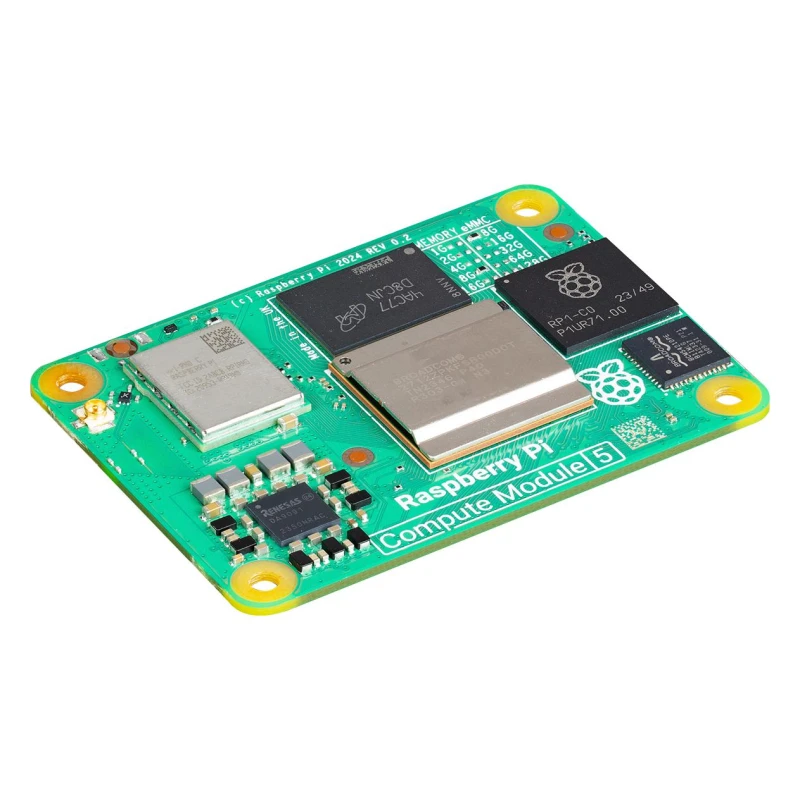

Image is for illustrative purposes only
The Raspberry Pi Compute Module 5 (CM5004064) is a compact System-on-Module (SoM) engineered to deliver the high computational performance of the Raspberry Pi 5 platform. This module is ideal for integration into custom embedded systems and demanding industrial hardware solutions. Key Specifications and Features
- Processor: High-performance Broadcom BCM2712 quad-core 64-bit CPU, clocked at 2.4 GHz.
- Memory: Features 4 GB LPDDR4 RAM.
- Storage: Integrated 64 GB eMMC flash memory.
- Video Output: Two HDMI 2.0 ports supporting up to 4Kp60 resolution.
- High-Speed I/O: Includes Gigabit Ethernet, a PCIe Gen 2 x1 interface, and dedicated USB 2.0 and USB 3.0 ports.
- Configuration Note: This specific SKU does not include the optional integrated Wi-Fi or Bluetooth wireless connectivity module.
Applications
The CM5004064 is designed for developers requiring significant computational power and flexibility in creating custom I/O systems and unique form factors, making it suitable for advanced embedded systems and industrial automation projects.
- Processor: High-performance Broadcom BCM2712 quad-core 64-bit CPU, clocked at 2.4 GHz.
- Memory: Features 4 GB LPDDR4 RAM.
- Storage: Integrated 64 GB eMMC flash memory.
- Video Output: Two HDMI 2.0 ports supporting up to 4Kp60 resolution.
- High-Speed I/O: Includes Gigabit Ethernet, a PCIe Gen 2 x1 interface, and dedicated USB 2.0 and USB 3.0 ports.
- Configuration Note: This specific SKU does not include the optional integrated Wi-Fi or Bluetooth wireless connectivity module.
Applications
The CM5004064 is designed for developers requiring significant computational power and flexibility in creating custom I/O systems and unique form factors, making it suitable for advanced embedded systems and industrial automation projects.
Camera/Display Interfaces: 2 × 4-lane MIPI ports (DSI/CSI-2)
Form Factor (Dimensions): 55 mm × 40 mm × 4.7 mm module
GPIO: Up to 30 × GPIO (1.8V or 3.3V signaling)
GPU: VideoCore VII (OpenGL ES 3.1, Vulkan 1.3 support)
Multimedia Decoder: 4Kp60 HEVC decoder
Operating Temperature: -20°C to +85°C
PCIe Interface: 1 × PCIe x1 root complex, Gen 2 (5Gbps)
RAM (Size/Type/Speed): 4GB LPDDR4-3200 SDRAM
SoC (Processor): Broadcom BCM2712, quad-core 64-bit Arm Cortex-A76 (Armv8) @ 2.4GHz
USB Ports: 1 × USB 2.0, 2 × USB 3.0 (5Gbps)
Video Outputs: 2 × HDMI 2.0 (up to 4Kp60 simultaneously)
Wired Network: Gigabit Ethernet PHY (IEEE 1588 support)
Wireless Connectivity: Absent (version without Wi-Fi/Bluetooth)
eMMC (Size): 64GB eMMC Flash
Form Factor (Dimensions): 55 mm × 40 mm × 4.7 mm module
GPIO: Up to 30 × GPIO (1.8V or 3.3V signaling)
GPU: VideoCore VII (OpenGL ES 3.1, Vulkan 1.3 support)
Multimedia Decoder: 4Kp60 HEVC decoder
Operating Temperature: -20°C to +85°C
PCIe Interface: 1 × PCIe x1 root complex, Gen 2 (5Gbps)
RAM (Size/Type/Speed): 4GB LPDDR4-3200 SDRAM
SoC (Processor): Broadcom BCM2712, quad-core 64-bit Arm Cortex-A76 (Armv8) @ 2.4GHz
USB Ports: 1 × USB 2.0, 2 × USB 3.0 (5Gbps)
Video Outputs: 2 × HDMI 2.0 (up to 4Kp60 simultaneously)
Wired Network: Gigabit Ethernet PHY (IEEE 1588 support)
Wireless Connectivity: Absent (version without Wi-Fi/Bluetooth)
eMMC (Size): 64GB eMMC Flash
-
