RPI CM5 IO BOARD
SKU:4575940
Manufacturer:Raspberry Pi
New
Image is for illustrative purposes only

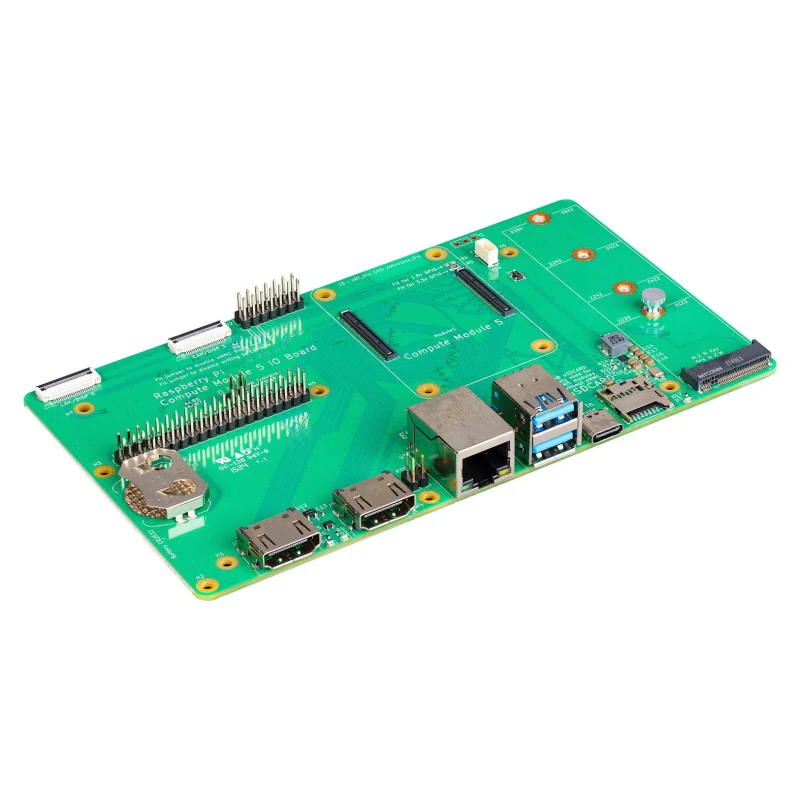

The Raspberry Pi Compute Module 5 IO Board (CM5IO) is a robust carrier board specifically designed for the Raspberry Pi Compute Module 5 (CM5). It serves as a critical tool for development, exposing the CM5's core signals through standard connectors to enable rapid prototyping and system integration.
Key Features
- Dedicated carrier board for all variants of the Raspberry Pi Compute Module 5 (CM5).
- High-speed storage expansion via an M.2 M key connector, supporting NVMe SSDs.
- Networking capabilities include Gigabit Ethernet with integrated support for PoE+.
- Video output provided by two full-size HDMI 2.0 ports.
- Peripheral connectivity includes two USB 3.0 ports.
- Standard 40-pin GPIO header ensures compatibility with Raspberry Pi HAT+ expansion boards.
- Compact form factor designed for streamlined embedded system development.
Applications
The CM5IO board is suitable for use as a reference design during product development or for direct, permanent embedding into final systems. Its comprehensive connectivity and standard interfaces make it ideal for rapidly creating prototypes and developing advanced embedded solutions based on the CM5 architecture.
Key Features
- Dedicated carrier board for all variants of the Raspberry Pi Compute Module 5 (CM5).
- High-speed storage expansion via an M.2 M key connector, supporting NVMe SSDs.
- Networking capabilities include Gigabit Ethernet with integrated support for PoE+.
- Video output provided by two full-size HDMI 2.0 ports.
- Peripheral connectivity includes two USB 3.0 ports.
- Standard 40-pin GPIO header ensures compatibility with Raspberry Pi HAT+ expansion boards.
- Compact form factor designed for streamlined embedded system development.
Applications
The CM5IO board is suitable for use as a reference design during product development or for direct, permanent embedding into final systems. Its comprehensive connectivity and standard interfaces make it ideal for rapidly creating prototypes and developing advanced embedded solutions based on the CM5 architecture.
Form Factor: 160 mm × 90 mm
Module Connector: For all Compute Module 5 variants (CM5/CM5Lite)
Video Outputs: 2 × full-size HDMI 2.0 (4K support)
MIPI Connectors: 2 × MIPI DSI/CSI-2 FPC (22-pin, 0.5 mm pitch)
Network: Gigabit Ethernet RJ45 with PoE+ support (requires separate HAT+)
USB Ports: 2 × USB 3.0 (Type-A), 1 × USB 2.0 (Type-C, for power/firmware)
PCIe Expansion Slot: M.2 M key (for NVMe SSD)
Storage Slot: microSD (for CM5 Lite)
GPIO Connector: Standard 40-pin (HAT+)
Fan Connector: 4-pin
Power: External +5V via USB-C PSU (supports up to 5A)
Additional Features: RTC battery connector, Power button
Production Lifespan: Until January 2036
Module Connector: For all Compute Module 5 variants (CM5/CM5Lite)
Video Outputs: 2 × full-size HDMI 2.0 (4K support)
MIPI Connectors: 2 × MIPI DSI/CSI-2 FPC (22-pin, 0.5 mm pitch)
Network: Gigabit Ethernet RJ45 with PoE+ support (requires separate HAT+)
USB Ports: 2 × USB 3.0 (Type-A), 1 × USB 2.0 (Type-C, for power/firmware)
PCIe Expansion Slot: M.2 M key (for NVMe SSD)
Storage Slot: microSD (for CM5 Lite)
GPIO Connector: Standard 40-pin (HAT+)
Fan Connector: 4-pin
Power: External +5V via USB-C PSU (supports up to 5A)
Additional Features: RTC battery connector, Power button
Production Lifespan: Until January 2036
