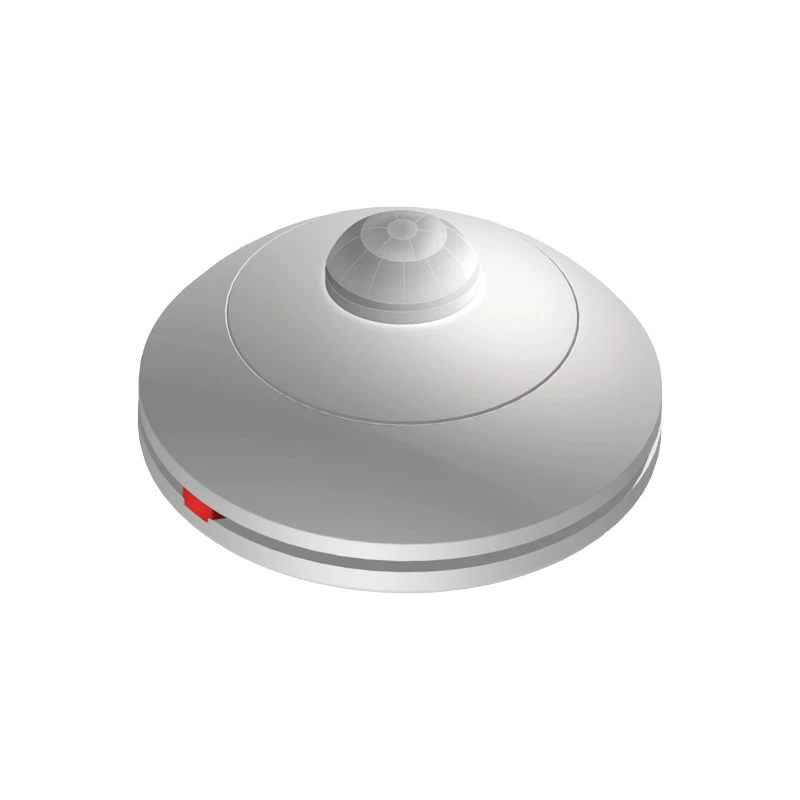

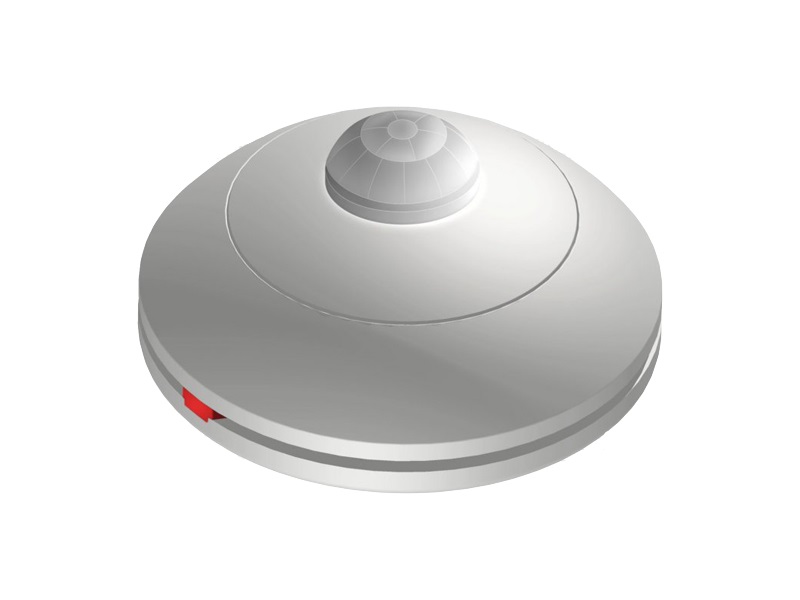

PIR motion sensor, Exta Free RF transmitter, White
Product is not available
The radio motion sensor is RCR-01 a self-contained battery-operated transmitter. The sensor detects changes in thermal radiation caused by the presence or movement of an object in the range.
When motion is detected, the sensor wirelessly transmits a signal to a receiver and a group of Exta Free receivers that can control lighting or other functions in the home.
The sensor is resistant to changes in ambient temperature and thermal movements of air.

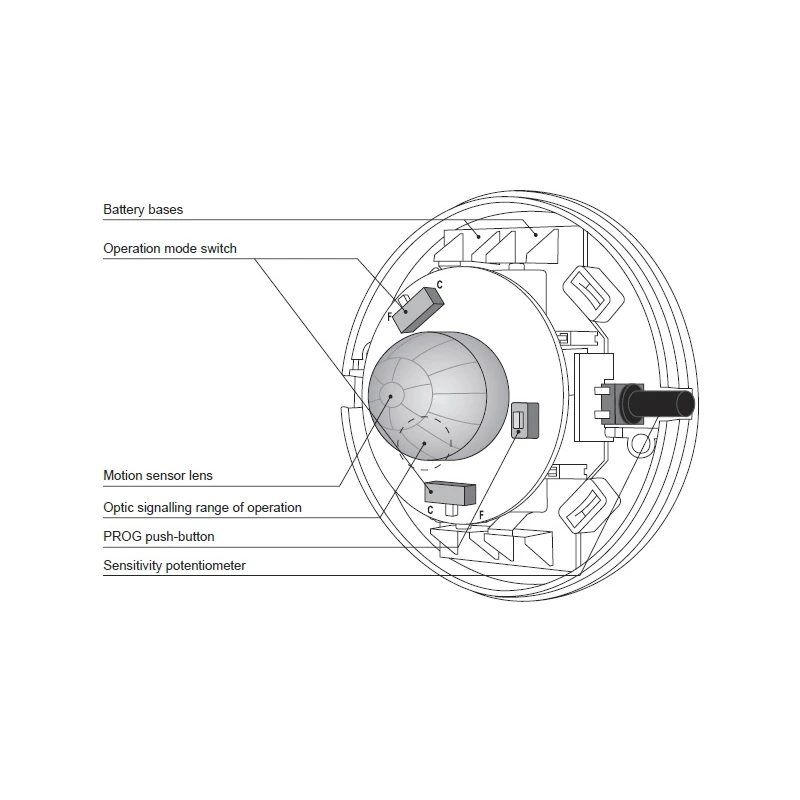

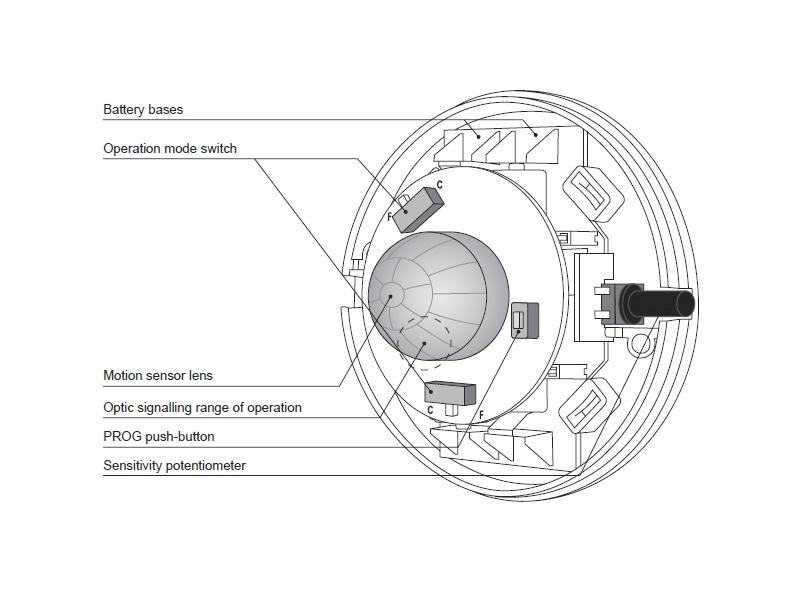

The motion sensor housing has a light sensitivity control knob to adjust the sensor during twilight.
motion sensor is compatible with all EXTA FREE series receivers,
light signalling of information transmission state and battery state,
simple installation and installation using double-sided scotch or self-cutters,
long range (up to 200 m),
the possibility of increasing the range by using a repeater RTN-01,
built-in twilight regulator,
possibility to work with unlimited number of EXTA FREE system receivers
RCR-01
Input rated voltage: 3 V DC
Battery type: 2x AAA / R03
Battery life: 1 year (depending on use)
Number of channels: 1
Twilight sensor adjustment range: 2 ÷ 20 lx
Transmission: radio 868,32 MHz
Coding way: unidirectional
Coding: addressing transmission
Range: up to 200 m in the open area
Optic signalling of transmitter’s operation: LED red diode
Ambient temperature range: -10 ÷ +55 oC
Operating position: free
Casing mounting: wall plugs, double-sided adhesive tape
Casing protection degree: IP20 (EN 60529)
Protection level: III
Pollution degree: 2
Dimensions: Ø70 x 40 mm
Weight: 0,07 kg
Reference standard: ETSI EN 300 220-1,
ETSI EN 300 220-2
