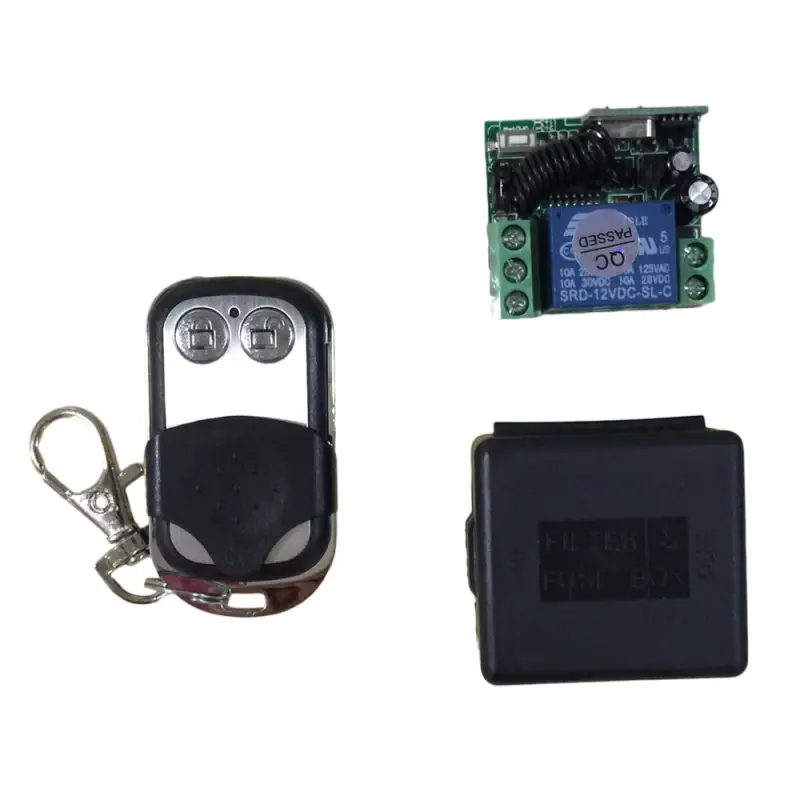

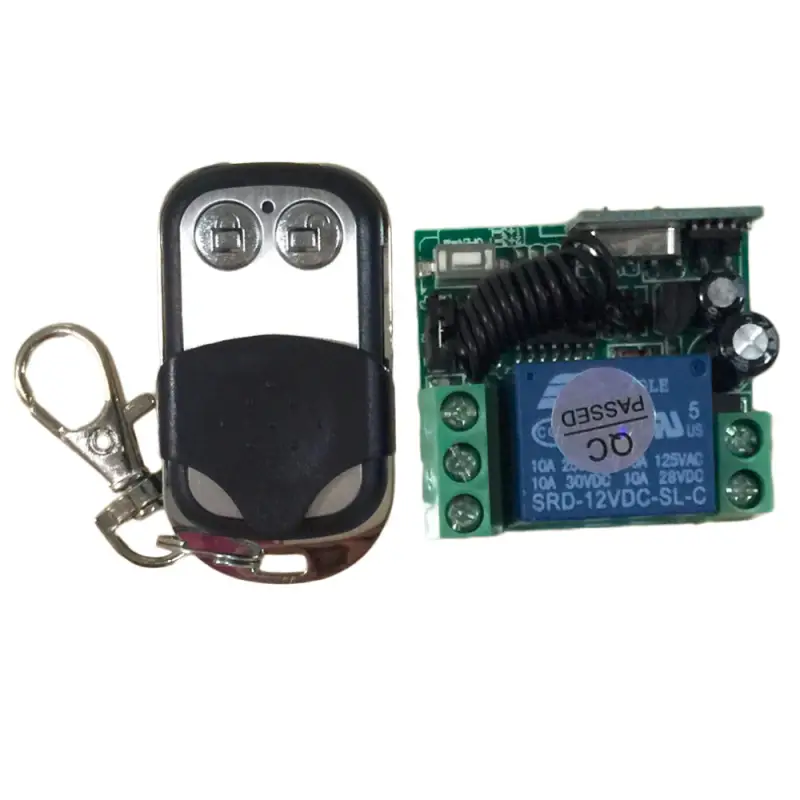

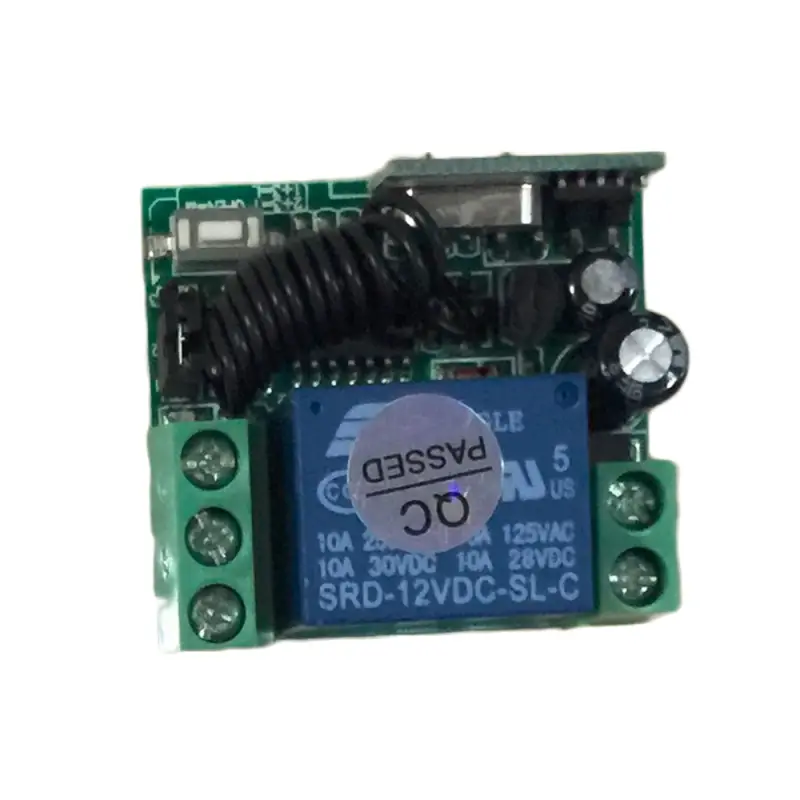

Wireless relay module 1channel

  • SKU: REB-1CH-REM
  • 25.00€

Working mode:

Momentary: Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle: Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Time delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically .

Clearing the code :
Push the learning button on the receivers for 8 times , the codes will be cleaned .
After clearning the code, all the remote control cannot work any more.
Learning the code : (momentary)
Push the learning key on the receiver once time , it comes into momentary setting mode .
Wait for a moment , the LED will be off , it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash then come off .
After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : ( Toggle )
Push the learning key on the receiver twice time , it comes into toggle setting mode
Wait for a moment , the LED will be off , it comes into learning state .
Push the remote button,LED indicator on the receiver board will flash then come off.
After 3 seconds , the LED indicator will be on again , learning successfully .

Learning the code : ( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for "ON", the second time learnt for "OFF".
For example : button A = ON , button B = OFF
Push the learning key on the receiver triple time , it comes into latching mode .
Wait for a moment , the LED indicator on the receiver board will flash then come off.
Push the remote button A .
LED flash for 5 times .
Push the remote button B .
Led flash for 5 times .
After 3 seconds , the LED indicator will be on again , learning successfully.
A = ON , B = OFF .

Learning the code : ( Time delay mode )
Push the learning key on the receiver forth time , the time dealy for 5 seconds .
Push the learning key on the receiver fifth time , the time delay for 10 seconds .
Push the learning key on the receiver sixth time , the time delay for 15 seconds .
The LED indicator will be off .
Push the remote button , LED flashes and off .
After 3 seconds , the LED indicator will be on again , learning successfully .

NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost or not working.

- Input Power:DC10V-14V
- Standby Current:<5MA
- RF Frequency:315M or 433M
- RF working mode:superheterodyne
- Receive sensitivity: >97dbm
- Transmitting distance: 20 meters above
- Decoding mode:MCU software decoding
- Support remote type: Learning code, Fixed code(Rolling code can be design)
- Working mode:Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
- Wiring type:fixed terminal
- Output Terminal :NO , NC , COM
- Dimension of PCB:35*30*18mm  (L,W,H)

Wiring diagram 1:

+V: 12V + input
-V: 12V - input
NO:  Output, normal open
COM: Output, common
NC:  Output, normal close
