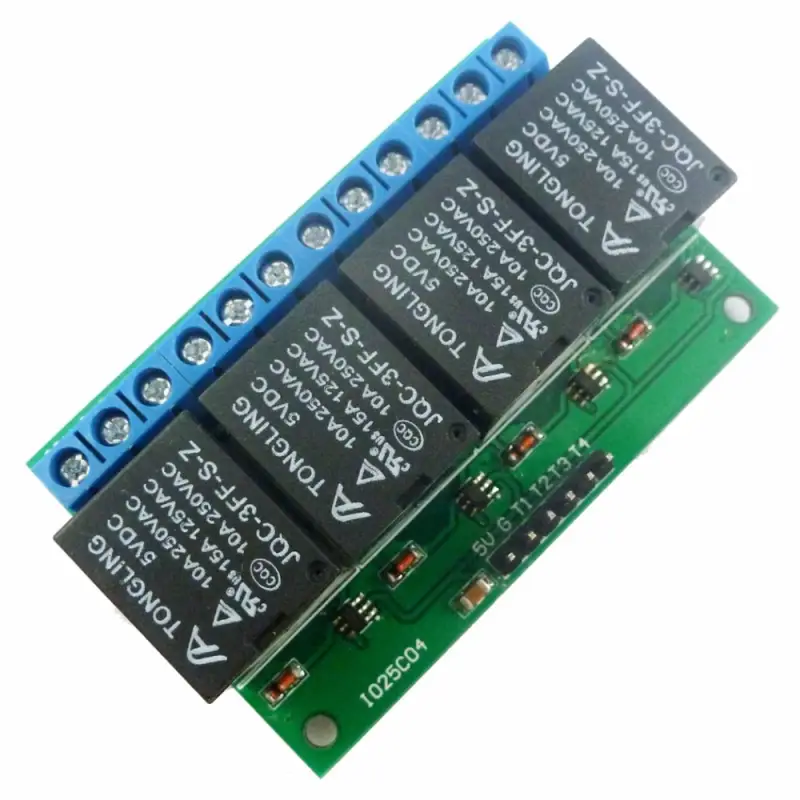

Releemoodul 4 kanaliga Flip-Flop 5VDC

  • SKU: REL-TRIG2-4

 Püsikliendi hind

3+ 20.32€
1+ 23.75€



Pealadu, Peterburi tee 90F, Tallinn 5
Peterburi tee Oomipood, Peterburi tee 90F, Tallinn 1
Järve keskuse Oomipood, Pärnu mnt. 238, Tallinn 2
Releemoodul 4 kanaliga Flip-Flop 5VDC

- Working voltage: DC 5V
- Working current: 1 relay 70MA;2  relay  140MA; 3  relay  210MA; 4  relay  280MA
- Standby current: 4UA
- Load current: AC 250V / 10A, DC 30V / 10A
- Trigger mode: Low pulse trigger
- Size: 65mm * 42mm  * 19mm (L * W * H)
- Weight: 52 g
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. 5V: positive power supply (VCC)
2. G:  negative power supply (GND)
3. T1  : Trigger port 1
4. T2  : Trigger port 2
5. T3  : Trigger port 3
6. T4  : Trigger port 4
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

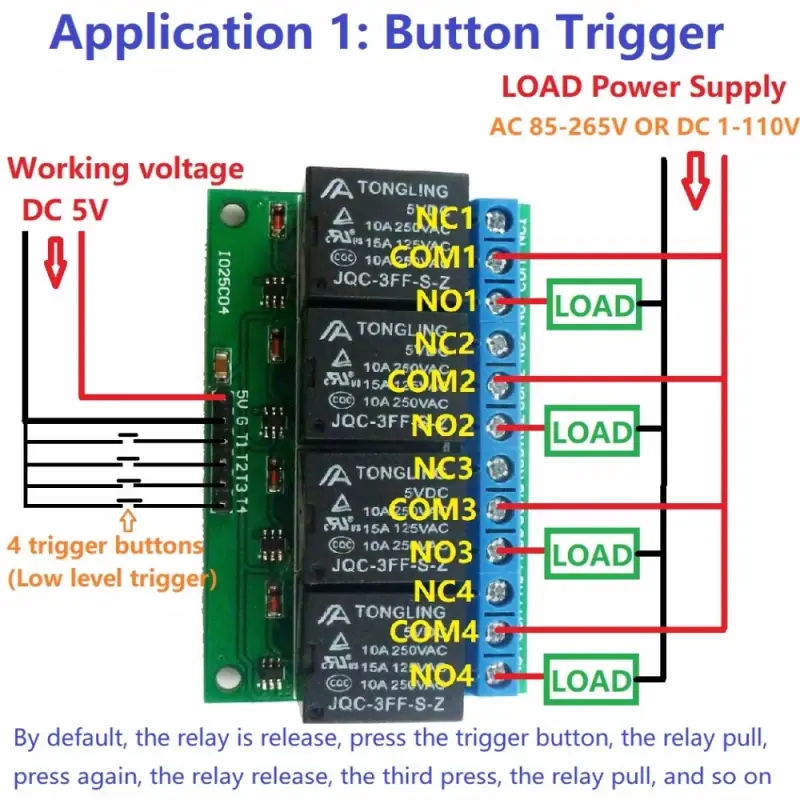

USE 1:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

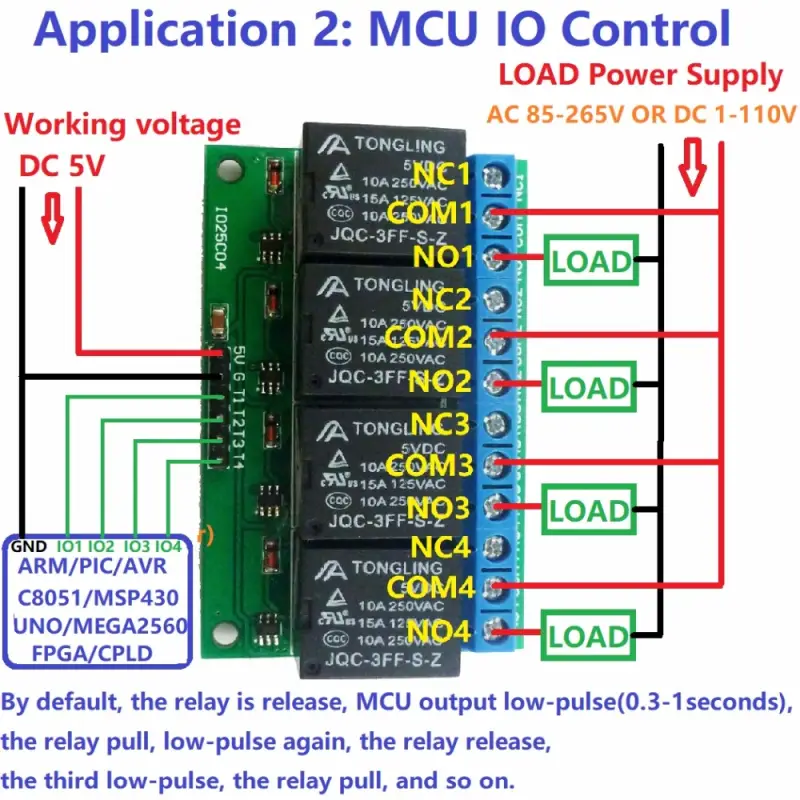

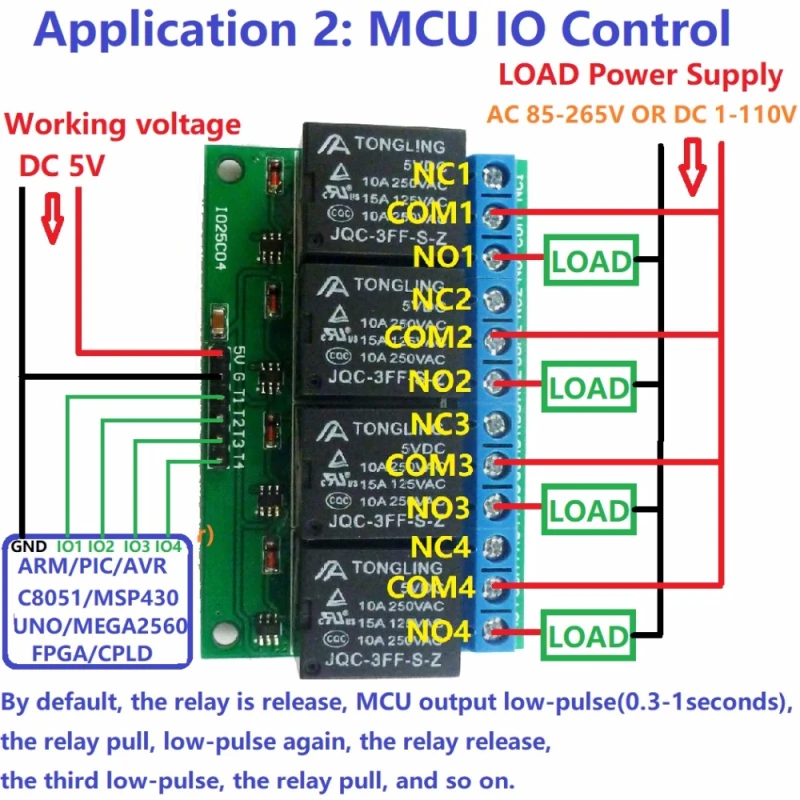

USE 2:
By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the  third low-pulse, the relay pull, and so on.
Typical applications: Automotive electronics, Motor, LED, Smart Home, Emergency lighting, MCU development board, Toy car
