SKU:HF18FF/A220-4Z1
New

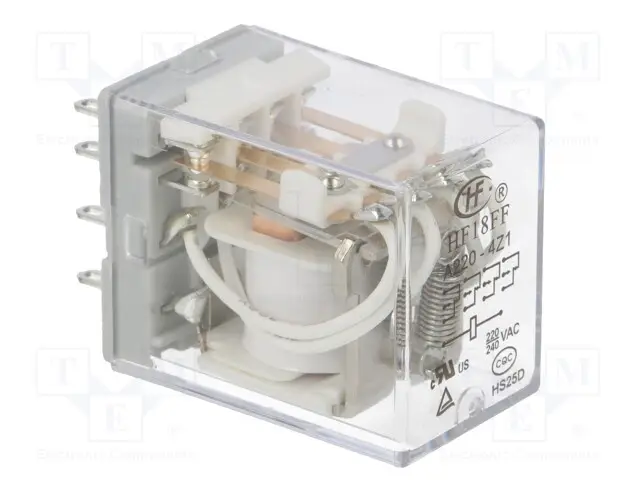

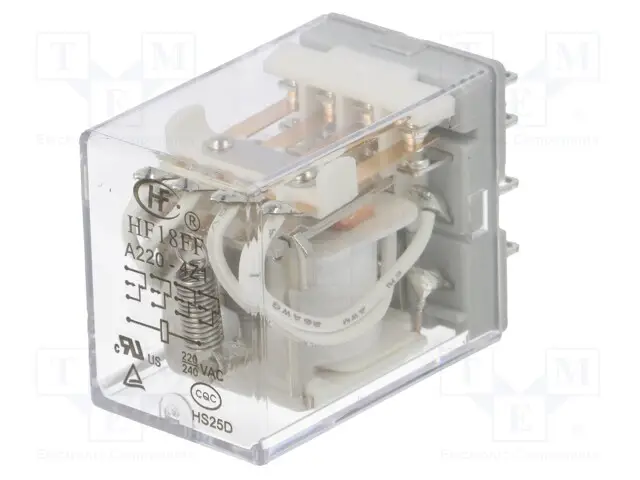

Image is for illustrative purposes only
HONGFA RELAY electromagnetic relay is an industrial-grade component designed for socket mounting. It features a 4PDT contact configuration and supports switched voltages up to 250V AC or 30V DC.
The relay operates with a 220V AC coil voltage and has a maximum contact current of 5A. The operating temperature range spans from -40 to 70°C, making it suitable for demanding industrial environments with 14-pin connection capability.
The relay operates with a 220V AC coil voltage and has a maximum contact current of 5A. The operating temperature range spans from -40 to 70°C, making it suitable for demanding industrial environments with 14-pin connection capability.
Manufacturer code: HF18FF/A220-4Z1
Mounting: socket
Operating temperature: -40...70°C
Number of pins: 14
Contact material: AgCe
Body dimensions: 28x21.5x35mm
Switched voltage: max. 30V DC, max. 250V AC
Coil resistance: 14.4kΩ
Contacts configuration: 4PDT
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 250V AC
Contact current max.: 5A
Relay variant: industrial
Type of relay: electromagnetic
Mounting: socket
Operating temperature: -40...70°C
Number of pins: 14
Contact material: AgCe
Body dimensions: 28x21.5x35mm
Switched voltage: max. 30V DC, max. 250V AC
Coil resistance: 14.4kΩ
Contacts configuration: 4PDT
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 250V AC
Contact current max.: 5A
Relay variant: industrial
Type of relay: electromagnetic
-
