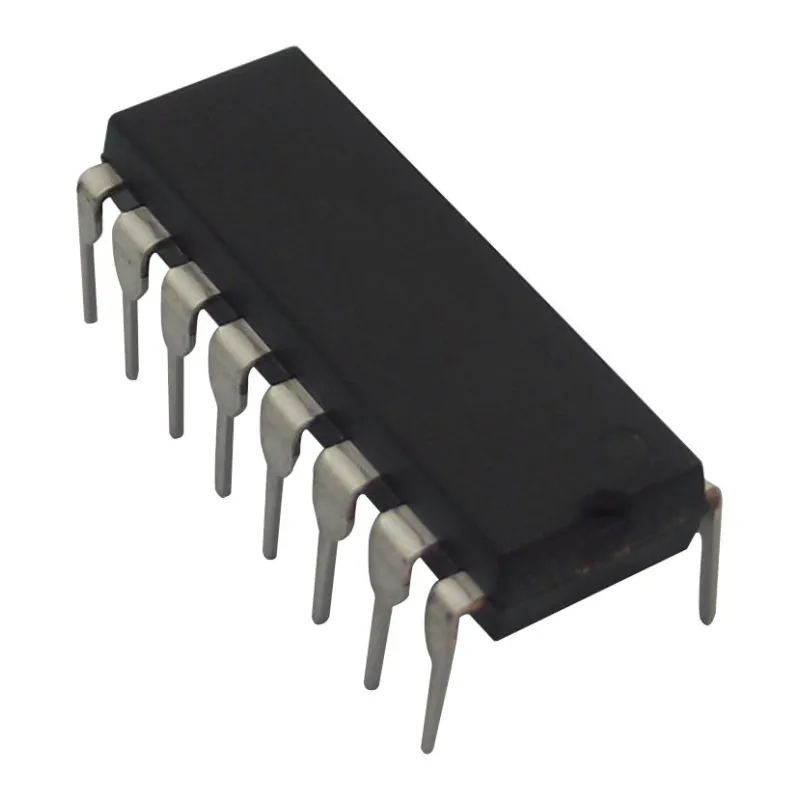

Image is for illustrative purposes only
The Renesas HIN232ACPZ is a high-speed RS-232 transmitter/receiver designed for robust data communication in electronic systems. This integrated circuit features two drivers and two receivers, providing a reliable interface that meets all RS-232E and V.28 specifications. It is optimized for systems where ±12V power is unavailable, operating efficiently on a single +5V supply.
Key Features
The device includes an integrated charge pump with an on-board voltage doubler and inverter, requiring only four 0.1µF or larger external capacitors for operation. It supports high-speed data transfer rates up to 230kbit/s while maintaining a low typical power consumption of 5mA. The receivers are designed with ±30V input voltage handling and 0.5V hysteresis to ensure superior noise rejection during data exchange.
Applications
Housed in a 16-lead PDIP package, the HIN232ACPZ is well-suited for portable computing, peripheral devices such as printers and terminals, industrial instrumentation, UPS systems, and modems.
Key Features
The device includes an integrated charge pump with an on-board voltage doubler and inverter, requiring only four 0.1µF or larger external capacitors for operation. It supports high-speed data transfer rates up to 230kbit/s while maintaining a low typical power consumption of 5mA. The receivers are designed with ±30V input voltage handling and 0.5V hysteresis to ensure superior noise rejection during data exchange.
Applications
Housed in a 16-lead PDIP package, the HIN232ACPZ is well-suited for portable computing, peripheral devices such as printers and terminals, industrial instrumentation, UPS systems, and modems.
Communication Mode: Full Duplex
Data Rate Max: 230Kbps
ESD Protection: ±8 kV (Contact), ±15 kV (Air Gap), ±15 kV (HBM)
IC Case / Package: DIP
IC Type: RS232 Transceiver
No. of Pins: 16 Pins
No. of Receivers: 2 Receivers
No. of Transmitters: 2
Operating Temperature Max: 70°C
Operating Temperature Min: 0°C
Supply Voltage Max: 5.5V
Supply Voltage Min: 4.5V
Data Rate Max: 230Kbps
ESD Protection: ±8 kV (Contact), ±15 kV (Air Gap), ±15 kV (HBM)
IC Case / Package: DIP
IC Type: RS232 Transceiver
No. of Pins: 16 Pins
No. of Receivers: 2 Receivers
No. of Transmitters: 2
Operating Temperature Max: 70°C
Operating Temperature Min: 0°C
Supply Voltage Max: 5.5V
Supply Voltage Min: 4.5V
