8-1625971-2TE Resistor: wire-wound;,with heatsink, screw, 220mΩ, 25W, ±5%, 550V

SKU:AX25WR-0R22
8-1625971-2TE Resistor: wire-wound;,with heatsink, screw, 220mΩ, 25W, ±5%, 550V
Image is for illustrative purposes only
8-1625971-2TE Resistor: wire-wound;,with heatsink, screw, 220mΩ, 25W, ±5%, 550V
8-1625971-2TE Resistor: wire-wound;,with heatsink, screw, 220mΩ, 25W, ±5%, 550V

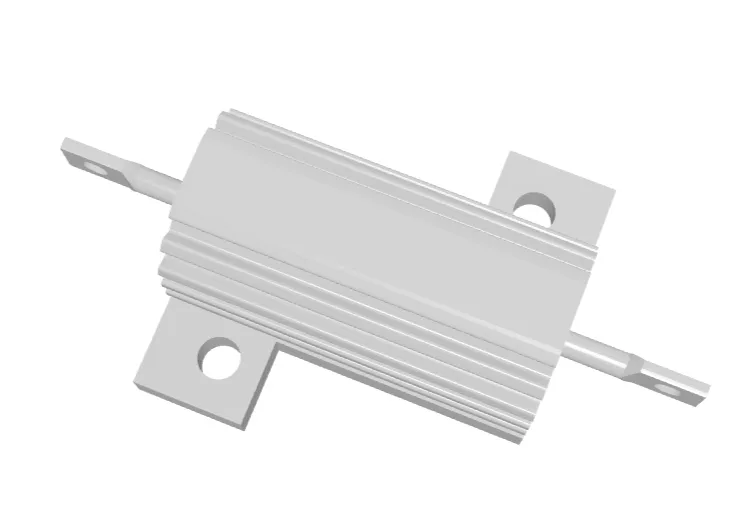

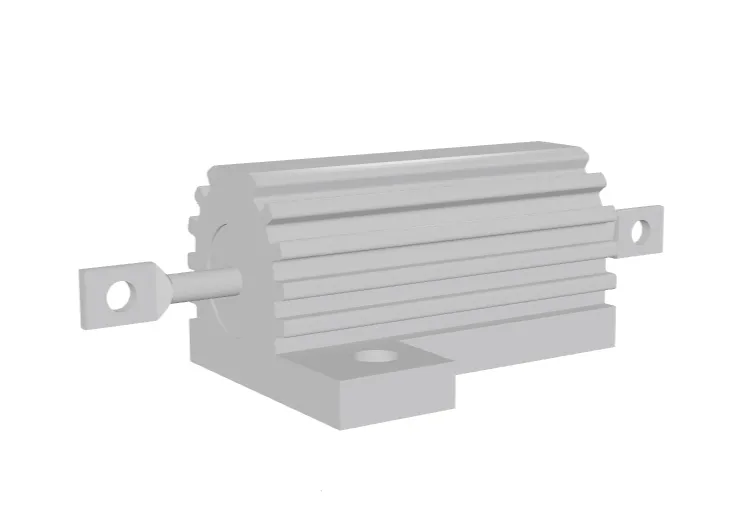

Resistor: wire-wound; with heatsink; screw; 220mΩ; 25W; ±5%; 550V

Manufacturer: TE Connectivity Series: HS (HSA25) Resistance: 0.22 Ohm Power Rating (with heatsink): 25 W Power Rating (without heatsink): 12.5 W Tolerance: ±5% Maximum Operating Voltage: 550 V Temperature Coefficient: ±50 ppm/°C Resistor Technology: Wirewound Termination Style: Solder Lug Mounting Type: Chassis Mount (Screw) Body Dimensions: 29 x 28 x 15 mm Mounting Hole Pitch: 19.8 x 18.3 mm Operating Temperature Range: -55°C to +200°C
AX25WR-0R22 Datasheet EN125.24KB
Download
Regular price
9.00 €
Customer price8.55 €-5%
Availability in stores
Tallinn
Peterburi tee
1 pcs
Pealadu
1 pcs
Kauplus
0 pcs
Järve keskus
0 pcs
Tartu
Lõunakeskus
0 pcs
Rakvere
Põhjakeskus
0 pcs
Pärnu
Kaubamajakas
0 pcs
