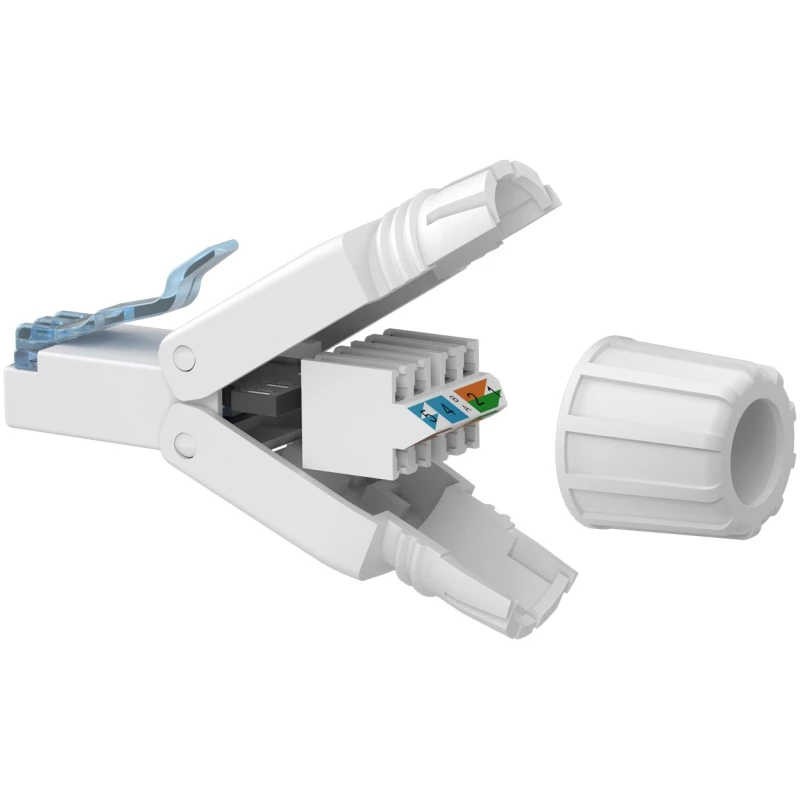

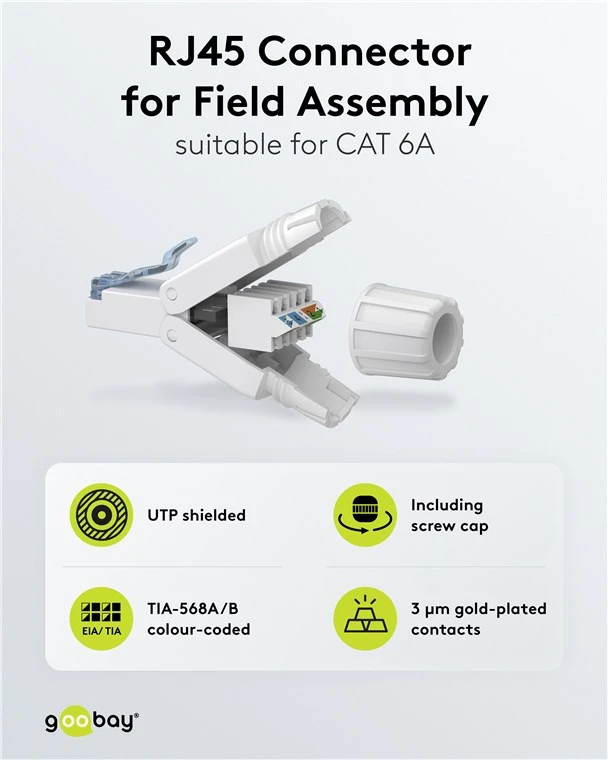

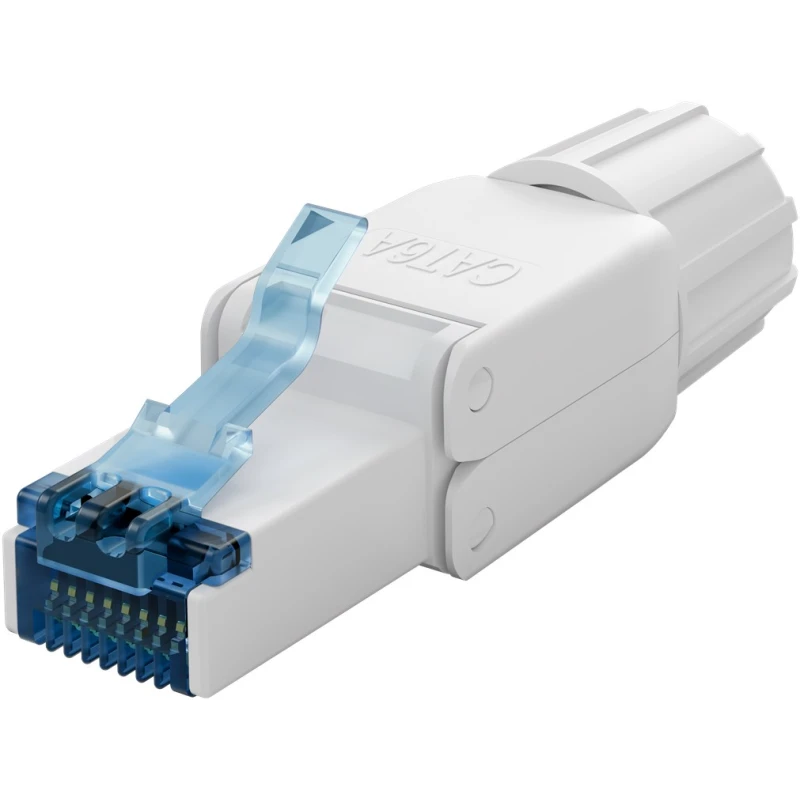

CAT 6A UTP Unshielded RJ45 Connector for Field Assembly
SKU:65941-GBY
Manufacturer:Goobay
New
Image is for illustrative purposes only
These Goobay RJ45 connectors are engineered for reliable, high-performance network connections.
Key Features
- Supports cable conductor cross-sections 22/1-24/1 AWG (solid) and 22/7-24/7 AWG (stranded).

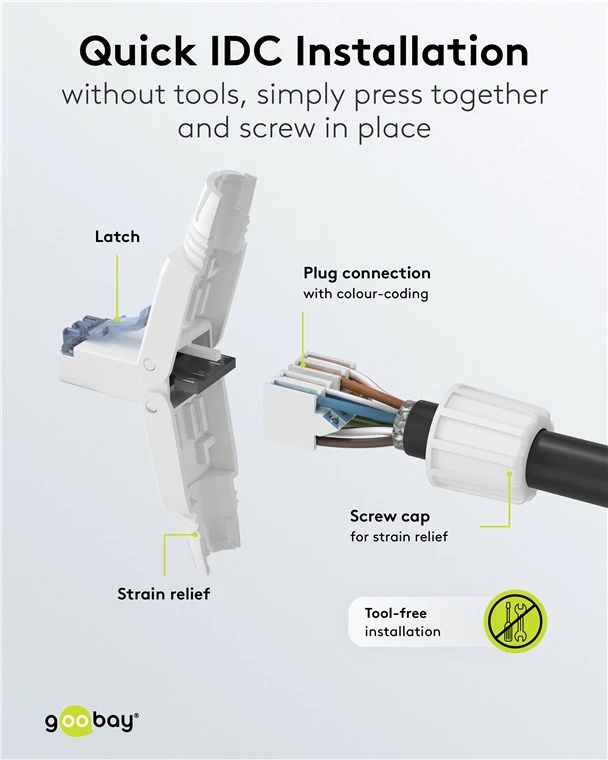

- Features a tool-free design for simple and rapid assembly.
- Fully compatible with Power over Ethernet (PoE) applications, including PoE++, 4PPoE, and Ultra PoE.
- Equipped with 3 µm gold-plated contacts for enhanced durability and optimal signal transmission.

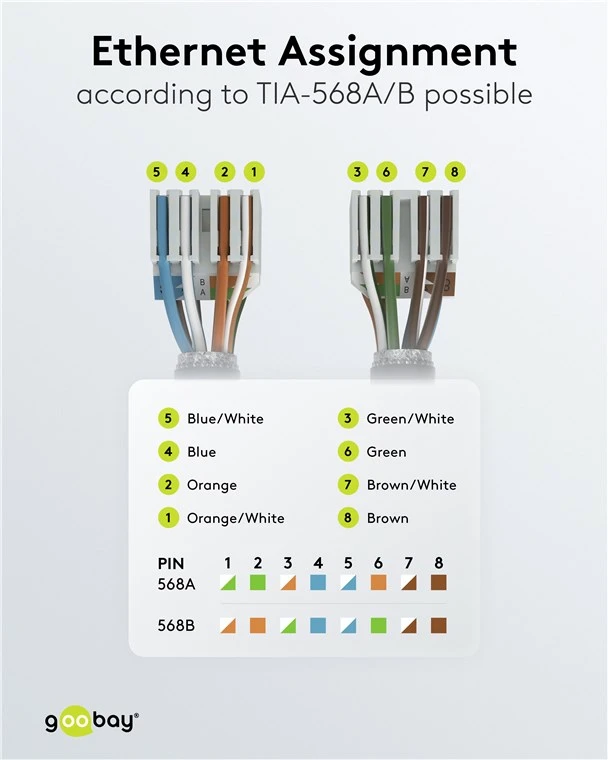

- Includes RJ45 TIA-568A/B color coding for standardized wiring.
Key Features
- Supports cable conductor cross-sections 22/1-24/1 AWG (solid) and 22/7-24/7 AWG (stranded).
- Features a tool-free design for simple and rapid assembly.
- Fully compatible with Power over Ethernet (PoE) applications, including PoE++, 4PPoE, and Ultra PoE.
- Equipped with 3 µm gold-plated contacts for enhanced durability and optimal signal transmission.
- Includes RJ45 TIA-568A/B color coding for standardized wiring.

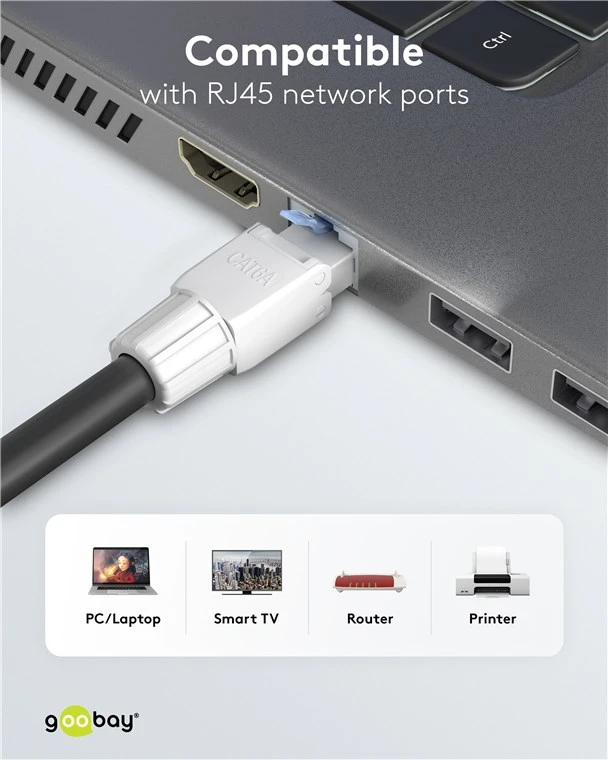

Connection Type: RJ45 male (8P8C)
Connection 2 Type: For IDC connectors (tool-less)
AWG: 24 - 22
Solid conductors: 1/22 AWG (0.65mm) - 1/24 AWG (0.5mm)
Insulated conductor diameter: Φ 1.0mm - 1.5mm
Stranded conductors: 7/22 AWG - 7/24 AWG
Insulated conductor diameter: Φ 1.0mm - 1.5mm
Outer cable diameter: Φ 5.0mm - 8.5mm
Connection Contact Material: Gold-plated 3µm
Contacting: 8 Pin
Specification: CAT 6A
Shielding class: UTP
Max Bandwidth: 500 MHz

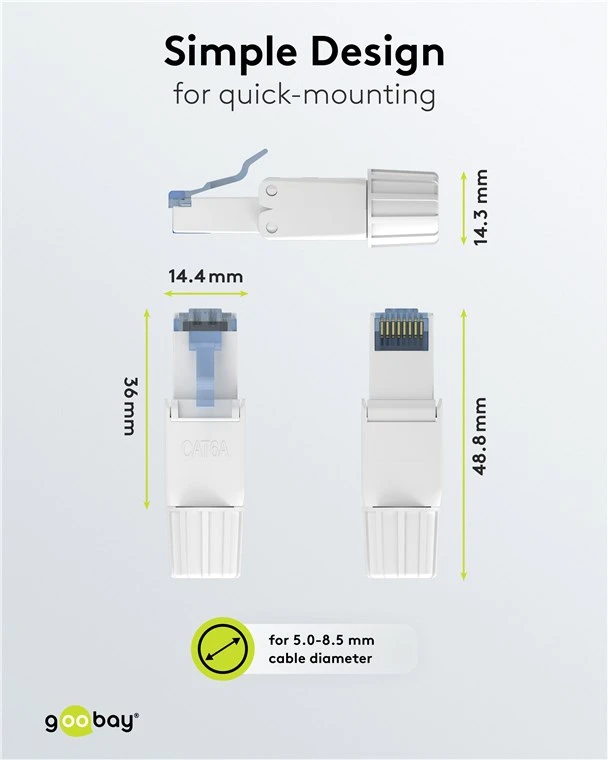

Dimensions: Length: 48.8, Width: 14.4mm
Connection 2 Type: For IDC connectors (tool-less)
AWG: 24 - 22
Solid conductors: 1/22 AWG (0.65mm) - 1/24 AWG (0.5mm)
Insulated conductor diameter: Φ 1.0mm - 1.5mm
Stranded conductors: 7/22 AWG - 7/24 AWG
Insulated conductor diameter: Φ 1.0mm - 1.5mm
Outer cable diameter: Φ 5.0mm - 8.5mm
Connection Contact Material: Gold-plated 3µm
Contacting: 8 Pin
Specification: CAT 6A
Shielding class: UTP
Max Bandwidth: 500 MHz
Dimensions: Length: 48.8, Width: 14.4mm
-
