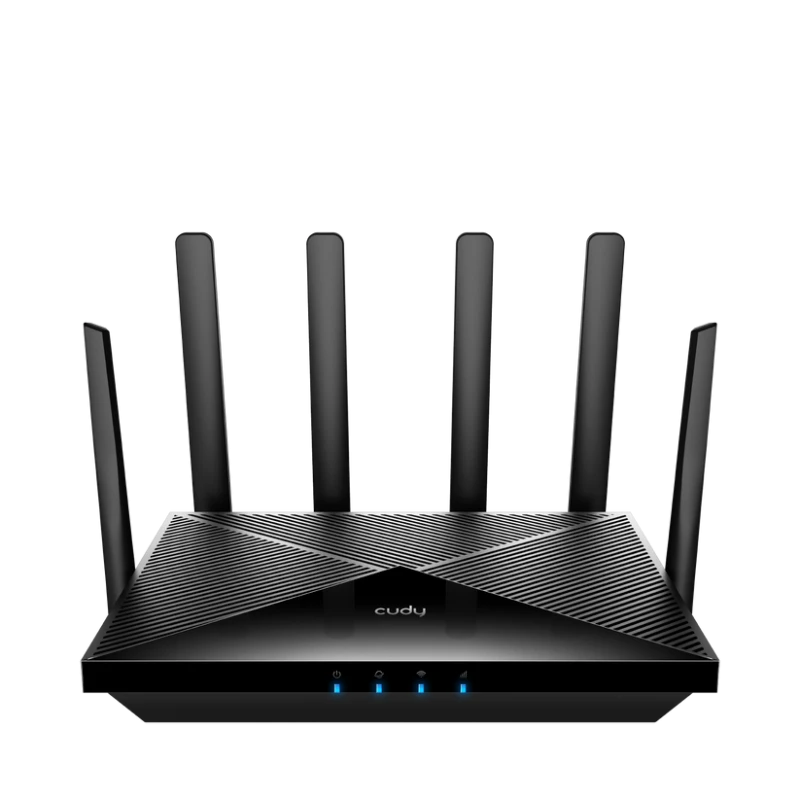

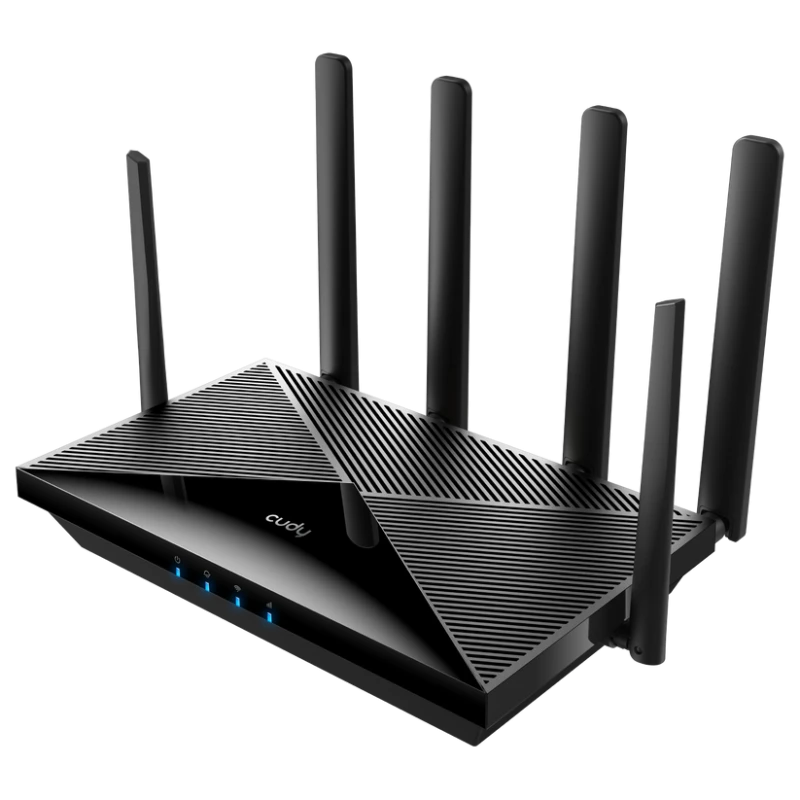

5G SA/NSA AX3000 Wi-Fi 6 Router

SKU:CUDY-P5
New 5G SA/NSA AX3000 Wi-Fi 6 Router
Image is for illustrative purposes only
The Cudy P5 is a high-performance 5G SA/NSA AX3000 Wi-Fi 6 CPE router designed to deliver reliable, high-speed internet connectivity using the advanced Qualcomm X62 5G modem and 3GPP Rel. 16 standard.



Key Features

- Supports 5G NSA and SA modes, providing maximum download speeds up to 3.4 Gbps.

- Utilizes the Qualcomm X62 5G modem and updated 3GPP Rel. 16 standard.

- Dual-band AX3000 Wi-Fi 6 connectivity.

- High-speed Wi-Fi performance: 2402 Mbps on the 5 GHz band (with 160 MHz channel width) and 574 Mbps on the 2.4 GHz band.

- Equipped with four Gigabit Ethernet ports, supporting WAN/Cellular failover redundancy.

- Features two Nano SIM slots for ensuring continuous connectivity.

- Supports Cudy Mesh for expanded network coverage.

- Advanced security features including DNS over TLS and comprehensive VPN support (PPTP, L2TP, OpenVPN, WireGuard, IPSec, ZeroTier).
Model: CUDY-P5 (P5 1.0)
Category: 5G SA/NSA AX3000 Wi-Fi 6 CPE
5G Modem: Qualcomm Snapdragon X62
5G Standard: 3GPP Rel. 16
Max DL Speed (5G): Up to 3.4 Gbit/s
Max UL Speed (5G): 900 Mbit/s (SA)
Carrier Aggregation (CA): UL/DL 4CA
MIMO: 4×4 MIMO
Wi-Fi Standard: AX3000 Dual-Band Wi-Fi 6 (802.11ax)
Wi-Fi Speed (5 GHz): 2402 Mbit/s (160 MHz)
Wi-Fi Speed (2.4 GHz): 574 Mbit/s
Processor: Dual-Core Qualcomm

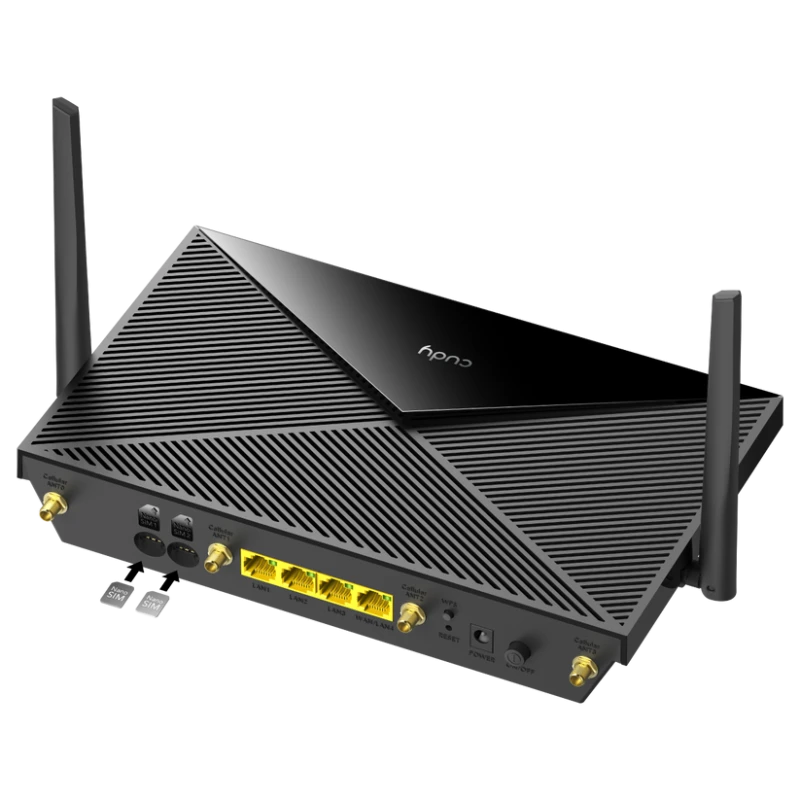

Ethernet Ports: 4× Gigabit Ethernet (1x WAN/LAN Failover, 3x LAN)
SIM Slots: 2× Nano SIM (with redundancy)
Antennas: 4× detachable cellular antennas, 2× fixed Wi-Fi antennas
VPN Features: PPTP/L2TP/OpenVPN/WireGuard/IPSec/ZeroTier (Server/Client)
Additional Features: Cudy Mesh, Band Lock, DNS over TLS, Cudy App, Cloud Control
CUDY-P5 Datasheet EN847.93KB
Download
