SKU:64708-GBY
Image is for illustrative purposes only

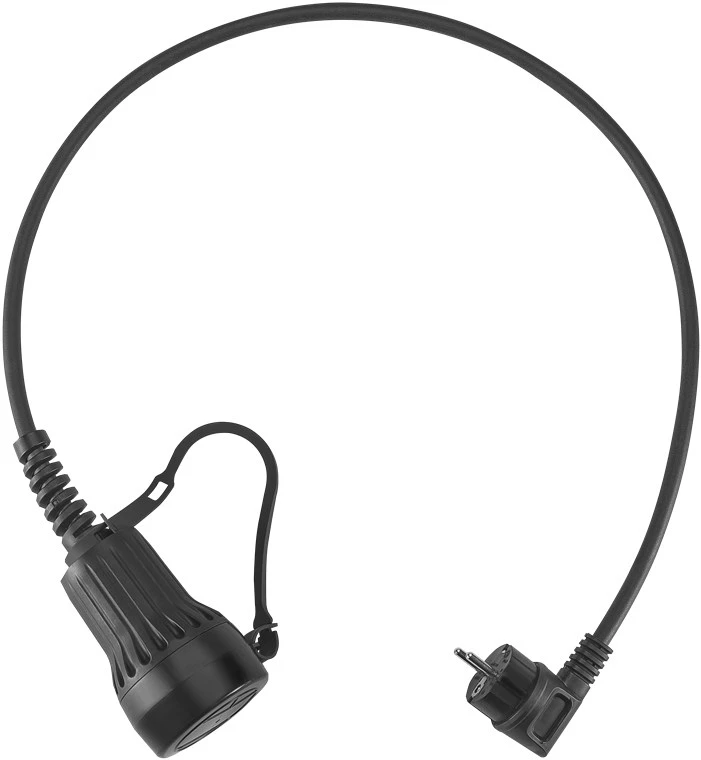

The LAPP Universal charging station adapter offers a seamless way to connect your electric vehicle charger to a standard domestic safety socket. Designed for both plug-in hybrids (PHEV) and battery electric vehicles (BEV), this adapter cable bridges the gap between the LAPP Separation point and a common household outlet, making it an essential tool for charging at home or during your travels.
Charging is simplified through on-board electronics that manage the start and stop of the process automatically. With a capacity of up to 2.3 kW, it serves as a highly reliable solution for daily use in a garage or as a crucial backup for emergency charging on the road. By using this adapter with your Universal charging station, you achieve maximum flexibility without the need for additional Type 2 cables.

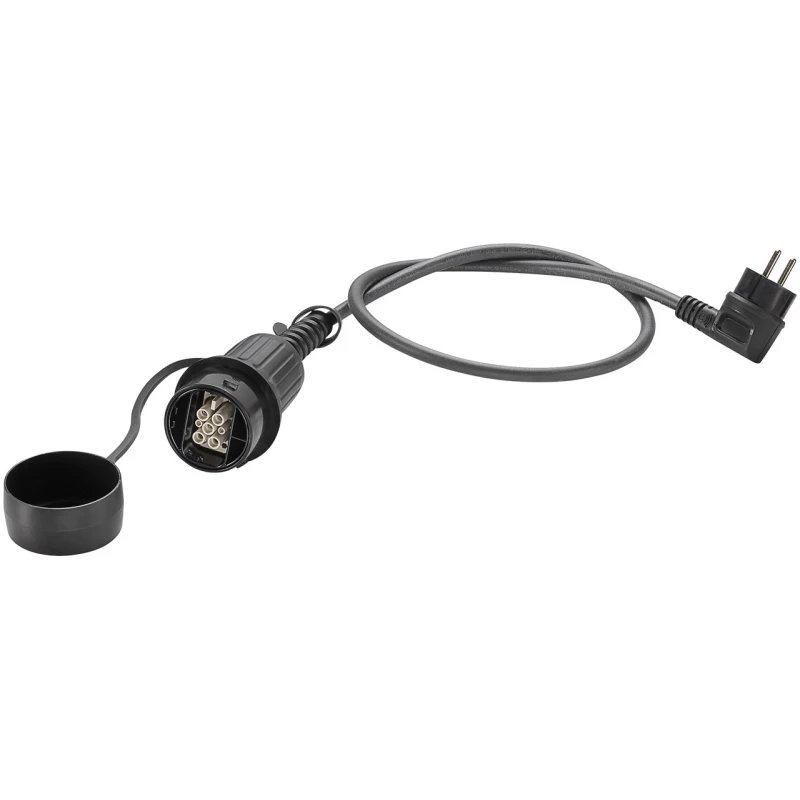

Built for longevity, the adapter features robust, vehicle-resistant cabling and silver-plated contacts to ensure stable energy transfer. Its design includes a protective cover cap for the female plug, shielding it from dust, dirt, and moisture when not in use.
Charging is simplified through on-board electronics that manage the start and stop of the process automatically. With a capacity of up to 2.3 kW, it serves as a highly reliable solution for daily use in a garage or as a crucial backup for emergency charging on the road. By using this adapter with your Universal charging station, you achieve maximum flexibility without the need for additional Type 2 cables.
Built for longevity, the adapter features robust, vehicle-resistant cabling and silver-plated contacts to ensure stable energy transfer. Its design includes a protective cover cap for the female plug, shielding it from dust, dirt, and moisture when not in use.
Connection, type: safety plug hybrid (type E/F, CEE 7/7)
Connection 2, type: LAPP Separation point
Loading capacity up to: 2.3 kW
Rated voltage: 230 V (AC)
max current capacity: 10 A
Cable length: 0.96 m
Number of phases: 1
Material cable sheath: ÖLFLEX®CHARGE
Inner conductor cross-section: 2.5 mm²
Cable type: smooth cable
Color: black
Markings: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
protection class: IP44
Packaging type: Retail Box
Article: 64708
EAN: 4056158850925
Connection 2, type: LAPP Separation point
Loading capacity up to: 2.3 kW
Rated voltage: 230 V (AC)
max current capacity: 10 A
Cable length: 0.96 m
Number of phases: 1
Material cable sheath: ÖLFLEX®CHARGE
Inner conductor cross-section: 2.5 mm²
Cable type: smooth cable
Color: black
Markings: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
protection class: IP44
Packaging type: Retail Box
Article: 64708
EAN: 4056158850925
-
