Samsung INR21700-50E
SKU:SL-353908
New

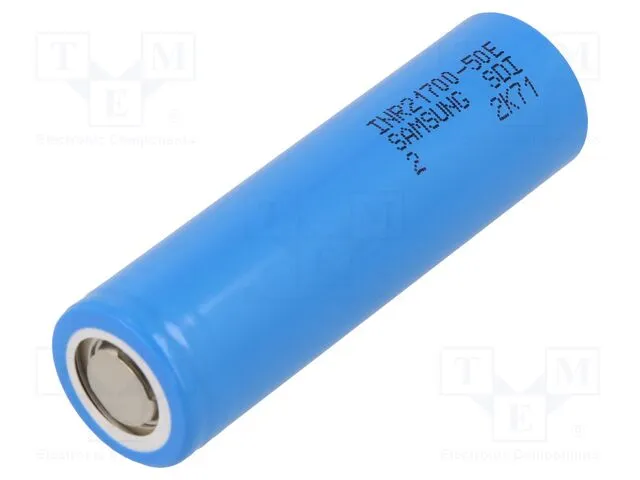

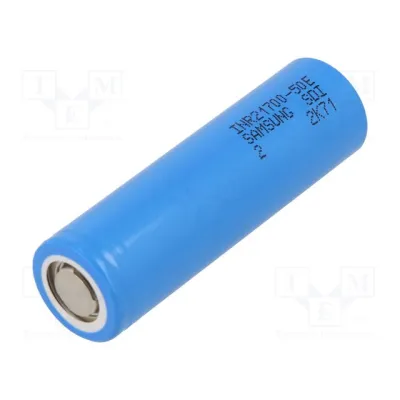

Image is for illustrative purposes only
The Samsung INR21700-50E is a high-performance 21700 format Lithium-ion cell manufactured by Samsung SDI. It is specifically engineered for applications requiring a balance of high energy density and moderate continuous current output.
Key Specifications
- High standard capacity of 4900 mAh
- Nominal voltage: 3.6 V
- Capable of providing a maximum continuous discharge current up to 9.8 A
- High-performance 21700 cell format
Integration Note
This cell is supplied without a built-in protection board and is designed exclusively for integration into battery packs that utilize an external Battery Management System (BMS).
Applications
The INR21700-50E is an ideal choice for specialized battery assemblies, portable power tools, energy storage systems (ESS), and e-mobility applications such as e-bikes and e-scooters.
Key Specifications
- High standard capacity of 4900 mAh
- Nominal voltage: 3.6 V
- Capable of providing a maximum continuous discharge current up to 9.8 A
- High-performance 21700 cell format
Integration Note
This cell is supplied without a built-in protection board and is designed exclusively for integration into battery packs that utilize an external Battery Management System (BMS).
Applications
The INR21700-50E is an ideal choice for specialized battery assemblies, portable power tools, energy storage systems (ESS), and e-mobility applications such as e-bikes and e-scooters.
Model: INR21700-50E
Cell Type: Литий-ионная (Li-ion) перезаряжаемая ячейка
Format: 21700
Nominal Voltage: 3.6V
Charge Voltage: 4.2V
Standard Discharge Capacity (0.2C): Мин. 4,900mAh
Nominal Discharge Capacity (1C): Мин. 4,753mAh
Max. Continuous Discharge Current: 9,800mA (9.8A)
Max. Pulse Discharge Current: 14,700mA
Standard Charge Current: 2,450mA (0.5C)
Max. Charge Current: 4,900mA
Discharge Cut-off Voltage: 2.5V
Internal Resistance (Initial, AC 1kHz): ≤ 35mΩ
Cycle Life (up to 80% capacity): ≥ 3,802mAh после 500 циклов
Dimensions (Max.): Диаметр 21.25mm, Высота 70.80mm
Weight (Max.): 69g
Operating Temperature (Discharge): -20°C до 60°C
Cell Type: Литий-ионная (Li-ion) перезаряжаемая ячейка
Format: 21700
Nominal Voltage: 3.6V
Charge Voltage: 4.2V
Standard Discharge Capacity (0.2C): Мин. 4,900mAh
Nominal Discharge Capacity (1C): Мин. 4,753mAh
Max. Continuous Discharge Current: 9,800mA (9.8A)
Max. Pulse Discharge Current: 14,700mA
Standard Charge Current: 2,450mA (0.5C)
Max. Charge Current: 4,900mA
Discharge Cut-off Voltage: 2.5V
Internal Resistance (Initial, AC 1kHz): ≤ 35mΩ
Cycle Life (up to 80% capacity): ≥ 3,802mAh после 500 циклов
Dimensions (Max.): Диаметр 21.25mm, Высота 70.80mm
Weight (Max.): 69g
Operating Temperature (Discharge): -20°C до 60°C
-
