Kommutaator DISEqC 2.0 2/1 WP korpus

Tootja: König

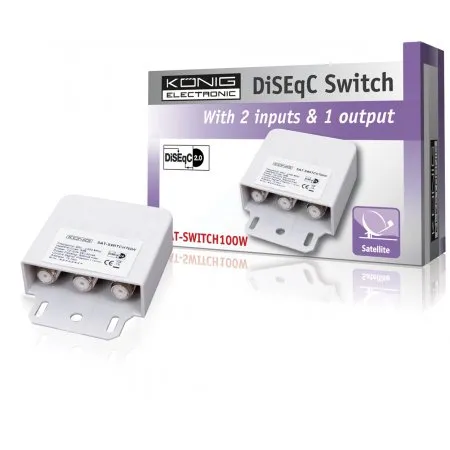

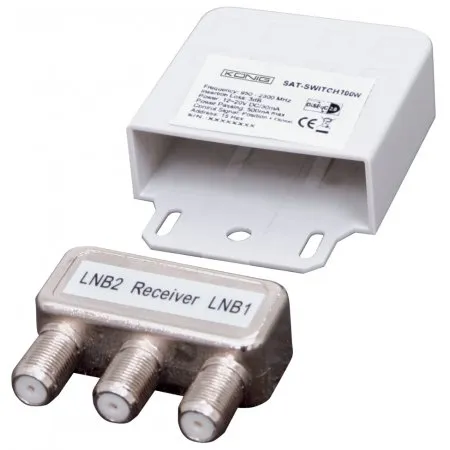

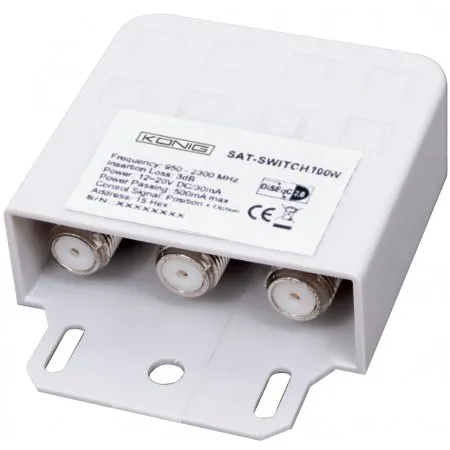

This DiSEqC switch has a low insertion loss and is very well protected against rain and extreme weather conditions. The switch has 2 inputs and 1 output for the reception of 2 satellites on 1 satellite receiver.
• DiSEqC Version: 2.0
• Type: 2-way (A/B)
• Frequency range: 950 - 2300 MHz
• Isolation input: >35 dB
• Operating voltage: 12 - 20 V
• Power consumption: 10 mA
• Insertion loss: 3 dB
• Switching signal: 22 kHz
• Max. DC power passing: 500 mA to LNB port
• Outdoor operating temperature: -30 ºC ~ +60 ºC
