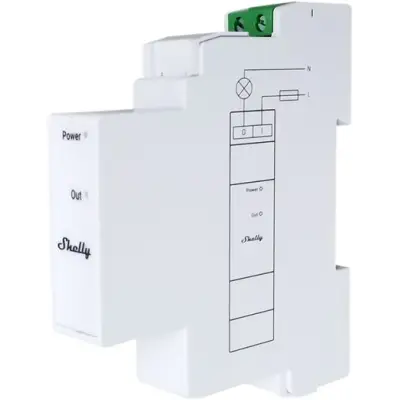

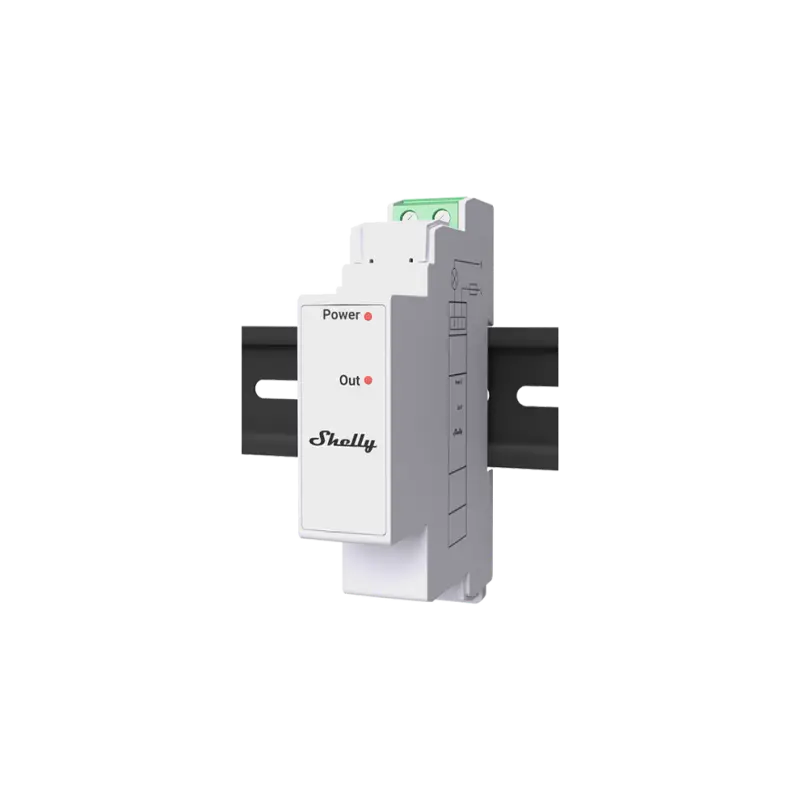

Shelly Pro 3EM Switch Add-on
SKU:SH-PRO3EM-ADDON
Manufacturer:Shelly
Image is for illustrative purposes only
Shelly Pro 3EM is a switch add-on module that extends the features of the Shelly Pro 3EM series devices, allowing the control of contactors or other electrical appliances.
Size (H x W x D): 94 × 19 × 69 ±0.5 mm
Weight: 20 ±1 g
Mounting: DIN rail, attached to Shelly Pro 3EM
Screw terminals max. torque: 0.4 Nm
Conductor cross-section: 0.5 to 2.5 mm² (solid, stranded, and bootlace lugs)
Conductor stripped length: 6 to 7 mm
Shell material: Plastic
Ambient temperature: -20 °C to 40 °C
Humidity: 30% to 70% RH
Max. altitude: 2000 m
Power supply voltage (DC): 3.3 V and 12 V (powered by Shelly Pro 3EM)
Power consumption: < 1 W
Internal temperature sensor: Yes
Max switching voltage (AC): 240 V
Max switching voltage (DC): 30 V
Max switching current (AC): 2 A
Max switching current (DC): 2 A
Weight: 20 ±1 g
Mounting: DIN rail, attached to Shelly Pro 3EM
Screw terminals max. torque: 0.4 Nm
Conductor cross-section: 0.5 to 2.5 mm² (solid, stranded, and bootlace lugs)
Conductor stripped length: 6 to 7 mm
Shell material: Plastic
Ambient temperature: -20 °C to 40 °C
Humidity: 30% to 70% RH
Max. altitude: 2000 m
Power supply voltage (DC): 3.3 V and 12 V (powered by Shelly Pro 3EM)
Power consumption: < 1 W
Internal temperature sensor: Yes
Max switching voltage (AC): 240 V
Max switching voltage (DC): 30 V
Max switching current (AC): 2 A
Max switching current (DC): 2 A
