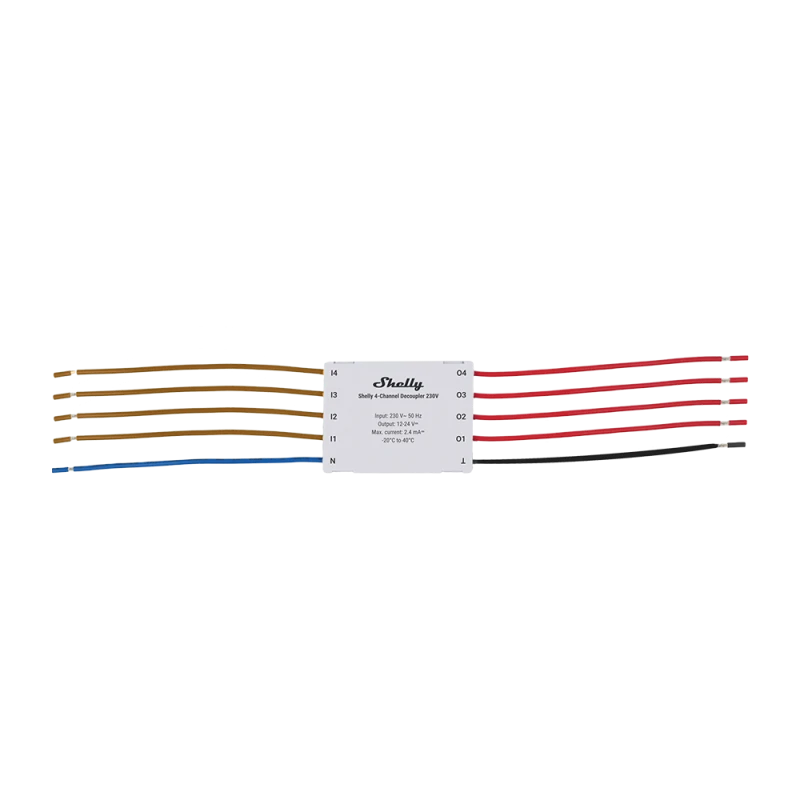

Shelly 4-Channel Decoupler 230V
SKU:SH-4CH-DECOUPLER
Manufacturer:Shelly
Image is for illustrative purposes only
The Shelly 4-Channel Decoupler 230V (SH-4CH-DECOUPLER) is a compact module designed for the safe and reliable interfacing of traditional 230V AC switches with modern DC-powered smart devices. It utilizes an optocoupler to provide essential galvanic isolation, converting high-voltage AC signals into reliable DC triggers.
Key Features
- Provides safe electrical isolation between AC and DC circuits.
- Converts 230V~ AC switch signals into reliable DC triggers.
- Features four independent channels, ideal for managing multiple inputs.
- Supports connection to various external control mechanisms, including buttons, relays, and potentiometers.
- Compact form factor for easy integration into existing setups.
Applications

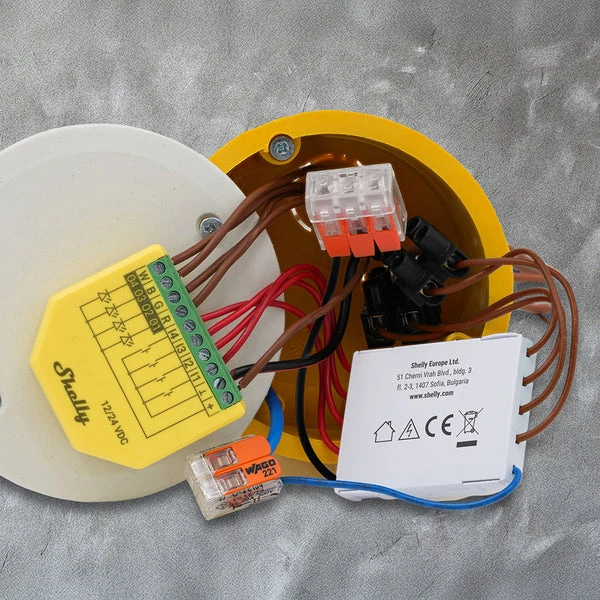

This module is essential for complex smart home systems, allowing existing AC wall switches to safely control DC inputs on smart devices without the risk of high-voltage exposure. It is specifically designed for use with DC input modules such as the Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, and Shelly Plus Add-On.
Key Features
- Provides safe electrical isolation between AC and DC circuits.
- Converts 230V~ AC switch signals into reliable DC triggers.
- Features four independent channels, ideal for managing multiple inputs.
- Supports connection to various external control mechanisms, including buttons, relays, and potentiometers.
- Compact form factor for easy integration into existing setups.
Applications
This module is essential for complex smart home systems, allowing existing AC wall switches to safely control DC inputs on smart devices without the risk of high-voltage exposure. It is specifically designed for use with DC input modules such as the Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, and Shelly Plus Add-On.
Cable Length: 80 mm
Channels: 4
Dimensions (HxWxD): 44 × 34 × 7 mm
Humidity: 30% to 70% RH
Input Voltage: 230V~ 50 Hz
Maximum Altitude: 2000 m
Maximum Output Current: 2.4 mA DC
Operating Temperature: 0 to 40 °C
Power Consumption: < 0.6 W
Storage Temperature: -20 °C to 40 °C
Stripped Wire Length: 5 mm
Weight: 25 g
Wire Colors: Brown (I1–I4), Blue (N), Red (O1–O4), Black (⏙)
Channels: 4
Dimensions (HxWxD): 44 × 34 × 7 mm
Humidity: 30% to 70% RH
Input Voltage: 230V~ 50 Hz
Maximum Altitude: 2000 m
Maximum Output Current: 2.4 mA DC
Operating Temperature: 0 to 40 °C
Power Consumption: < 0.6 W
Storage Temperature: -20 °C to 40 °C
Stripped Wire Length: 5 mm
Weight: 25 g
Wire Colors: Brown (I1–I4), Blue (N), Red (O1–O4), Black (⏙)
