SKU:SH-DIMMERGEN3
Manufacturer:
Shelly

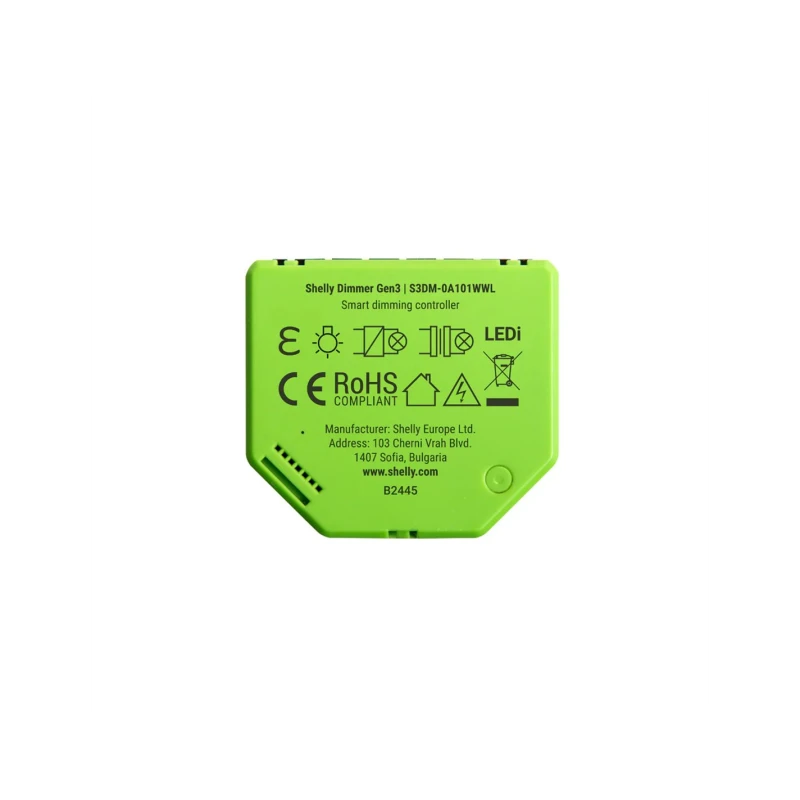

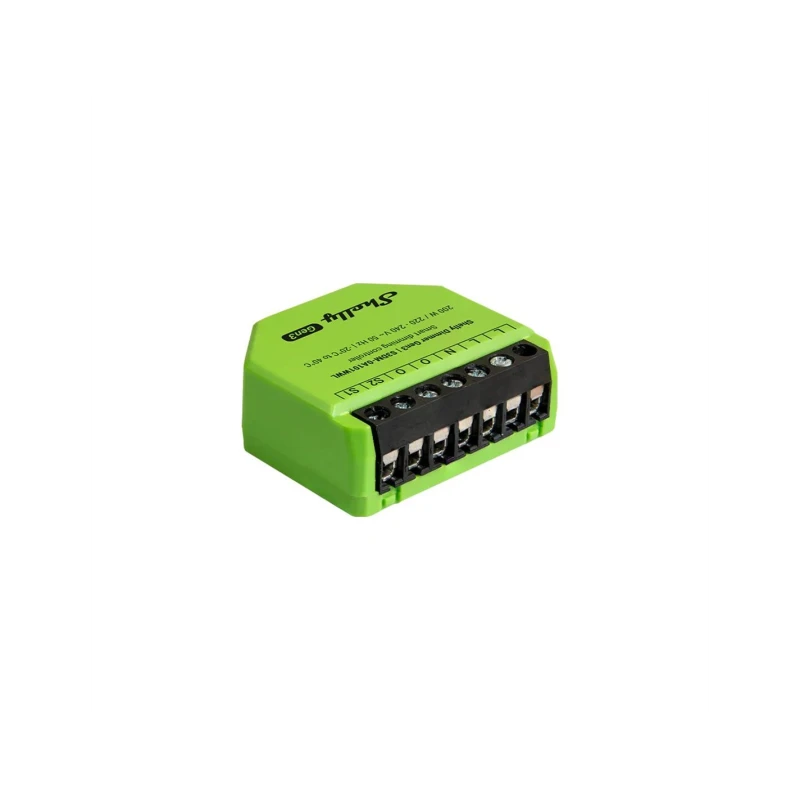

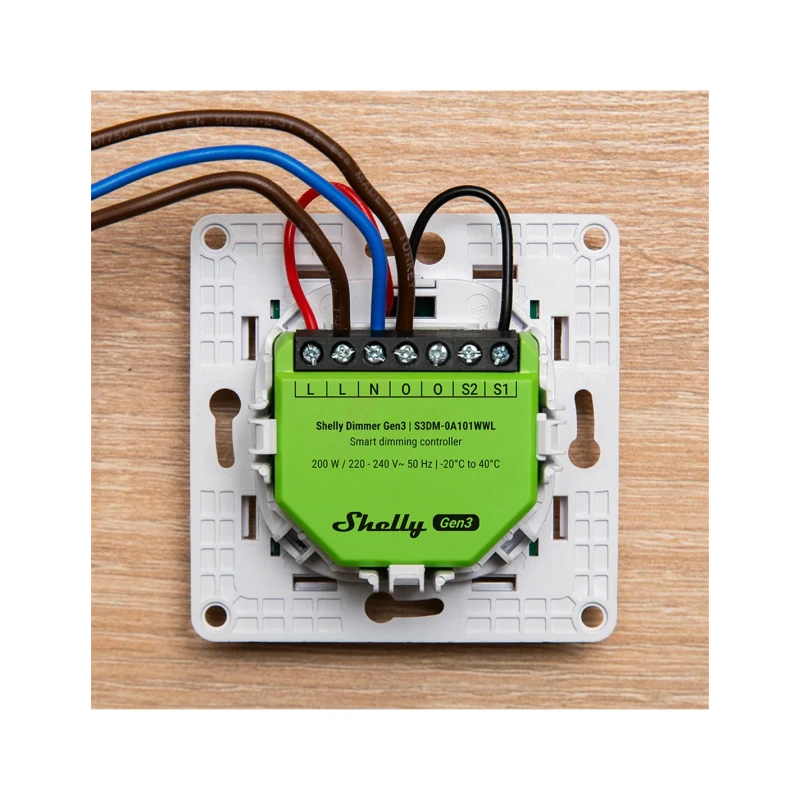

Image is for illustrative purposes only
The Shelly Dimmer Gen3 is a Wi-Fi-operated smart dimming controller designed for the seamless remote control of dimmable lights and drivers. This advanced device offers exceptional flexibility and can be installed in configurations with or without a neutral wire, making it suitable for a wide range of electrical setups.
Powered by Shelly's proprietary chip, it ensures reliable and responsive performance. As a 1-channel dimmer, it allows you to precisely adjust the brightness of various light sources, including dimmable LEDs, incandescent bulbs, and halogen lights. Integrated features such as a temperature sensor, overload protection, and power measurement provide enhanced safety and energy efficiency monitoring.
With support for both Wi-Fi and Bluetooth, you gain powerful local and remote control capabilities. Set up weekly schedules, create sunrise/sunset automations, and integrate it into your smart home ecosystem with support for MQTT, scripting, and webhooks. The Shelly Dimmer Gen3 is the ultimate solution for intelligent and adaptable lighting control in any home.
Powered by Shelly's proprietary chip, it ensures reliable and responsive performance. As a 1-channel dimmer, it allows you to precisely adjust the brightness of various light sources, including dimmable LEDs, incandescent bulbs, and halogen lights. Integrated features such as a temperature sensor, overload protection, and power measurement provide enhanced safety and energy efficiency monitoring.
With support for both Wi-Fi and Bluetooth, you gain powerful local and remote control capabilities. Set up weekly schedules, create sunrise/sunset automations, and integrate it into your smart home ecosystem with support for MQTT, scripting, and webhooks. The Shelly Dimmer Gen3 is the ultimate solution for intelligent and adaptable lighting control in any home.
Humidity: 30 % to 70 % RH
Altitude: Up to 2000 m
Power supply AC: 220-240 V~ 50 Hz
Temperature sensor: Yes
Voltmeter: Yes, 180 V - 240 V, ± 5 % (when used with neutral)
Ammeter: Yes, 0 A - 3 A, +/- 5%
Dimming: Yes
Scripting: Yes
Color changing: Yes
MQTT: Yes
Dimmable LED: 50-200VA / 1W – 200W
Incandescent and halogen light sources: 1-220W
Resistive-inductive loads ferromagnetic transformers: 50-150VA
CPU: ESP32 C3 STM32 G051
Memory: 8 MB
Warranty: 36 months
Output: Up to 200 W
Weight: 24.3 g
Bluetooth: 4.2
HTTP/HTTPS webhooks: 20 with 5 URLs per hook
Device temperature protection: Yes
Overload protection: Yes
Power measurement: Yes
Working without neutral line: Yes
Channels: 1 Channel
Operational temperature: -20ºC to +40ºC
Device power consumption: < 1.5 W
Intelligent On/Off: Yes
Local and remote control: Yes
Sunrise/Sunset: Yes
Weekly Schedule: 20
UL Listed option: No
Wireless/WiFi Protocol: 802.11 b/g/n
Radio frequency: 2400 – 2500 MHz
Radio signal power: 1mW
WiFi Range: Up to 30 m indoors and 50 m outdoors (depends on local condition)
Bluetooth Range: Up to 10 m indoors and 30 m outdoors (depends on local condition)
Size: 38x42.5x16.5 mm
Bluetooth RF band: 2402 - 2480 MHz
Bluetooth max. RF power: < 4 dBm
WiFi Max. RF power: < 20 dBm
WiFi RF band: 2412 - 2472 MHz
Shell material: Plastic
KVS (Key-Value Store): Yes
Clock frequency: ESP32 C3: 40 Mhz
Min. load without neutral and without a Bypass: 20 W
Reference: ATSHELLYDG3
EAN13: 3800238070526
