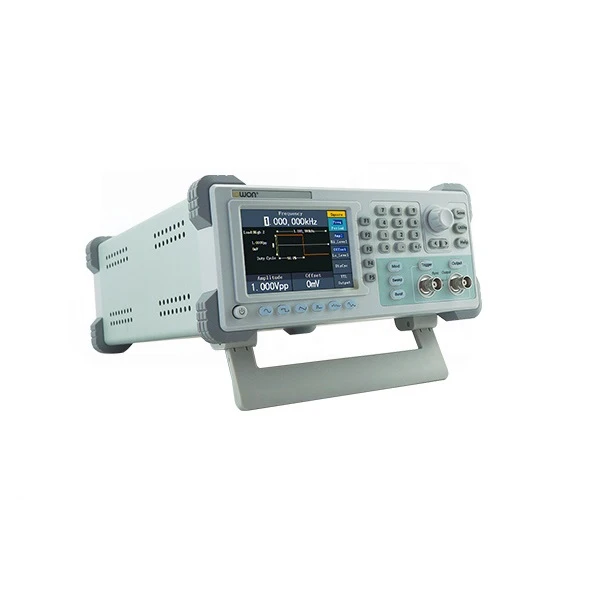

Signal Generator 1ch 1uHz-5MHz LCD AM FM PM FSK SWE
SKU:AG051-TT
Manufacturer:OWON
Image is for illustrative purposes only

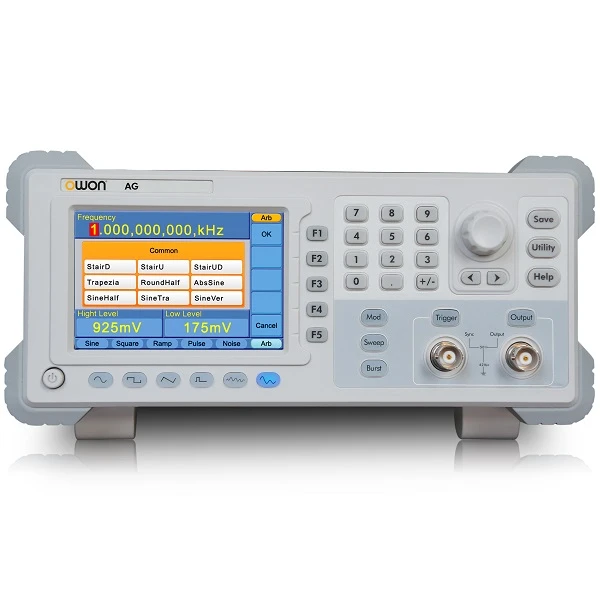

This high-performance signal generator utilizes advanced Direct Digital Synthesis (DDS) technology to provide stable, low-distortion waveforms up to 10MHz. It is designed for precise signal simulation in laboratory and educational environments, offering a high 125MS/s sampling rate and 14-bit vertical resolution for accurate signal reproduction.
Key Features
- Advanced DDS technology with 10MHz frequency output and 1μHz resolution.
- High-speed 125MS/s sampling rate and 8K arbitrary waveform length.
- Extensive library including 5 basic waveforms and 45 built-in arbitrary waveforms.
- Comprehensive modulation functions: AM, FM, PM, FSK, Sweep, and Burst.
- Integrated 4-inch LCD with 480 x 320 pixel resolution for clear data visualization.
- Remote control and automation support via SCPI and LabVIEW.
Compatibility
This unit is designed to integrate smoothly with OWON SDS Series Digital Storage Oscilloscopes (DSO), allowing for streamlined testing and measurement workflows.
Key Features
- Advanced DDS technology with 10MHz frequency output and 1μHz resolution.
- High-speed 125MS/s sampling rate and 8K arbitrary waveform length.
- Extensive library including 5 basic waveforms and 45 built-in arbitrary waveforms.
- Comprehensive modulation functions: AM, FM, PM, FSK, Sweep, and Burst.
- Integrated 4-inch LCD with 480 x 320 pixel resolution for clear data visualization.
- Remote control and automation support via SCPI and LabVIEW.
Compatibility
This unit is designed to integrate smoothly with OWON SDS Series Digital Storage Oscilloscopes (DSO), allowing for streamlined testing and measurement workflows.

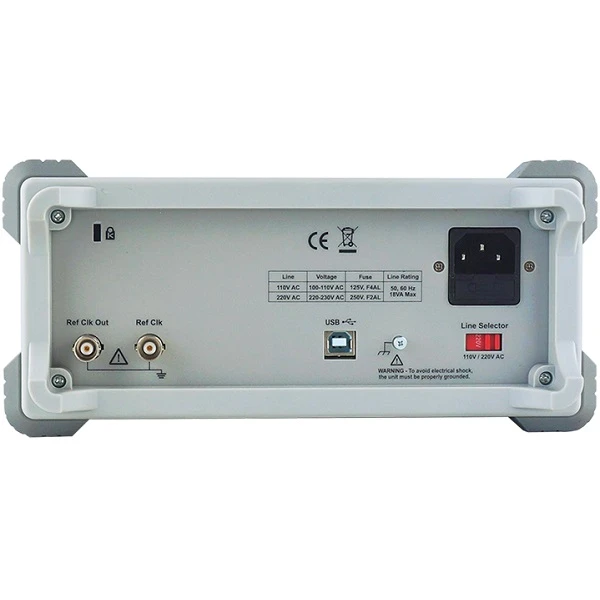

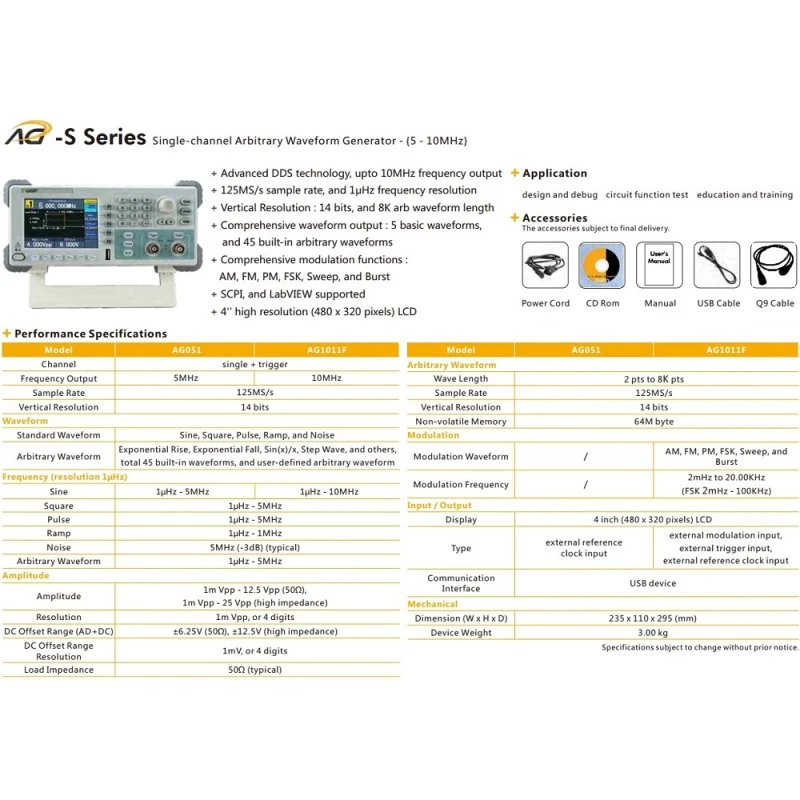

Amplitude: 1mVpp - 12.5Vpp (50Ω), 1mVpp - 25Vpp (high impedance)
Amplitude Resolution: 1mVpp or 4 digits
Arb: 1μHz - 5MHz
Arbitrary Waveform: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform
Channel: single + trigger
DC Offset Range (AD+DC): ±6.25V (50Ω), ±12.5V (high impedance)
DC Offset Range Resolution: 1mV or 4 digits
Frequency Output: 5MHz
Input Impedance: 50 kΩ
Load Impedance: 50Ω (typical)
Modulation Frequency: 2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Modulation Waveform: AM, FM, PM, FSK, Sweep, and Burst
Noise: 5MHz (-3dB) (typical)
Non-volatile Memory: 64M bytes
Pulse: 1μHz - 5MHz
Ramp: 1μHz - 1MHz
Sample Rate: 125MS/s
Sine: 1μHz - 5MHz
Square: 1μHz - 5MHz
Standard Waveform: Sine, Square, Pulse, Ramp, and Noise
Vertical Resolution: 14 bits
Wave Length: 2 pts to 8K pts
Amplitude Resolution: 1mVpp or 4 digits
Arb: 1μHz - 5MHz
Arbitrary Waveform: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform
Channel: single + trigger
DC Offset Range (AD+DC): ±6.25V (50Ω), ±12.5V (high impedance)
DC Offset Range Resolution: 1mV or 4 digits
Frequency Output: 5MHz
Input Impedance: 50 kΩ
Load Impedance: 50Ω (typical)
Modulation Frequency: 2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Modulation Waveform: AM, FM, PM, FSK, Sweep, and Burst
Noise: 5MHz (-3dB) (typical)
Non-volatile Memory: 64M bytes
Pulse: 1μHz - 5MHz
Ramp: 1μHz - 1MHz
Sample Rate: 125MS/s
Sine: 1μHz - 5MHz
Square: 1μHz - 5MHz
Standard Waveform: Sine, Square, Pulse, Ramp, and Noise
Vertical Resolution: 14 bits
Wave Length: 2 pts to 8K pts
-
