SKU:53851
New
Image is for illustrative purposes only
To ensure the maximum efficiency and longevity of your solar energy system, it is essential to use high-quality components designed for harsh environments. This Qoltec photovoltaic cable is specifically engineered to connect PV panels and inverters, providing a reliable energy transfer for your entire installation. Built to withstand intense sunlight, UV radiation, and fluctuating weather conditions, this cable is a long-term investment in your green energy setup.

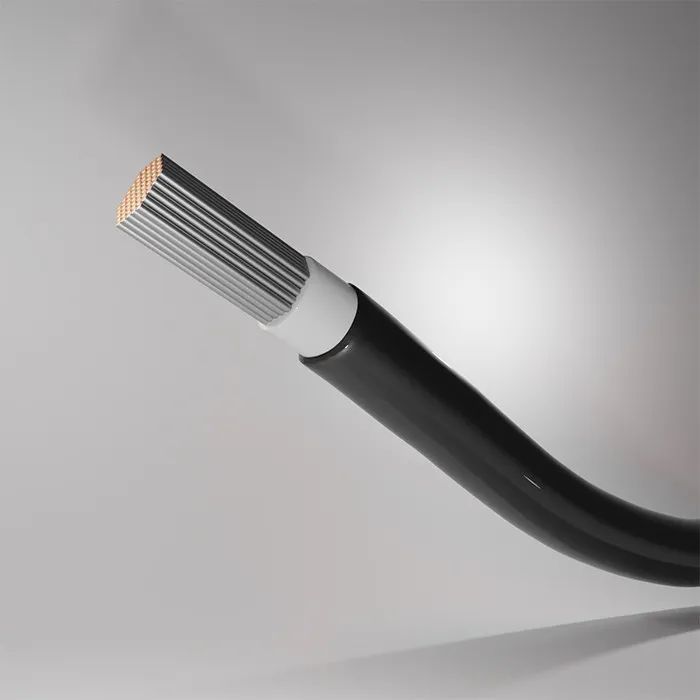

The cable features a durable and flexible design, utilizing multi-stranded tinned copper wires for superior conductivity. Its insulation and outer coating are made from cross-linked halogen-free materials, ensuring safety and environmental compliance. Designed for both indoor and outdoor use, this single-core cable meets the stringent EN 50618 and IEC 62930 standards, offering a guaranteed service life of at least 25 years. With fire resistance class Eca and high thermal tolerance, it provides peace of mind and safety for your photovoltaic project.
The cable features a durable and flexible design, utilizing multi-stranded tinned copper wires for superior conductivity. Its insulation and outer coating are made from cross-linked halogen-free materials, ensuring safety and environmental compliance. Designed for both indoor and outdoor use, this single-core cable meets the stringent EN 50618 and IEC 62930 standards, offering a guaranteed service life of at least 25 years. With fire resistance class Eca and high thermal tolerance, it provides peace of mind and safety for your photovoltaic project.
Producer: Qoltec

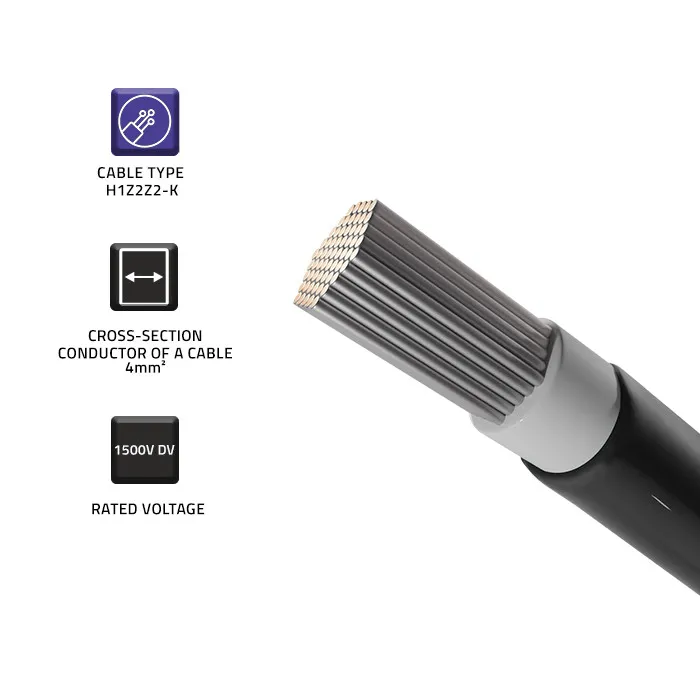

Type: H1Z2Z2-K
Standard: EN 50618/IEC62930
Power: 82.5 kW
Rated voltage: 1500 V
Rated current: 55 A

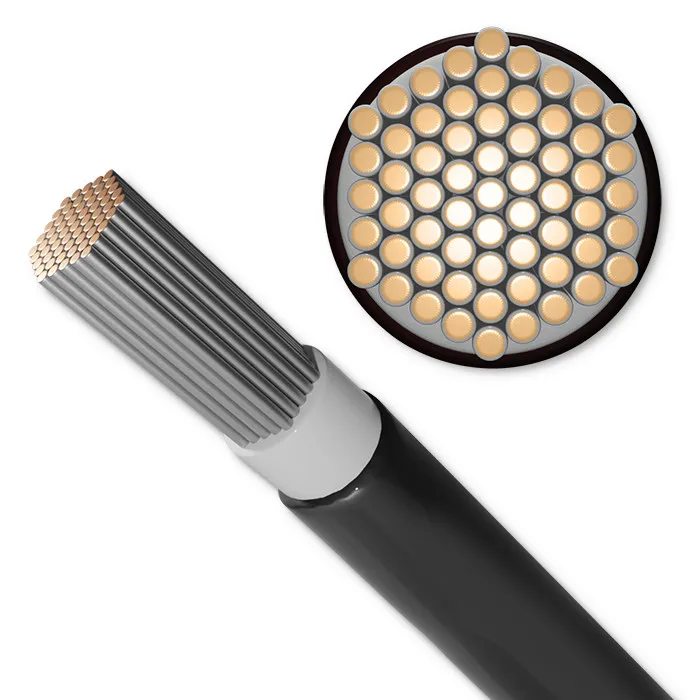

Structure of the conductor: single wire made of tinned soft copper wires
Conductor cross-sectional area: 4mm²
Insulating material: Irradiation cross-linked polyolefin, Halogen-free
Coating: Irradiation cross-linked polyolefin, Halogen-free
Conductor thickness: 2.58 mm
Thickness of the insulation coating: 0.7 mm
External shell thickness: 0.8 mm
Resistance to pressure: AC-6.5KV/5min
Fire resistance class: Eca
Flame resistance: IEC 60332-1-2
Ozone resistance: IEC 60811-403
UV resistance: 720h
Temperature resistance: -40˚C ~ +90˚C
Maximum conductor temperature: 120°C
Designed lifespan: 25 years

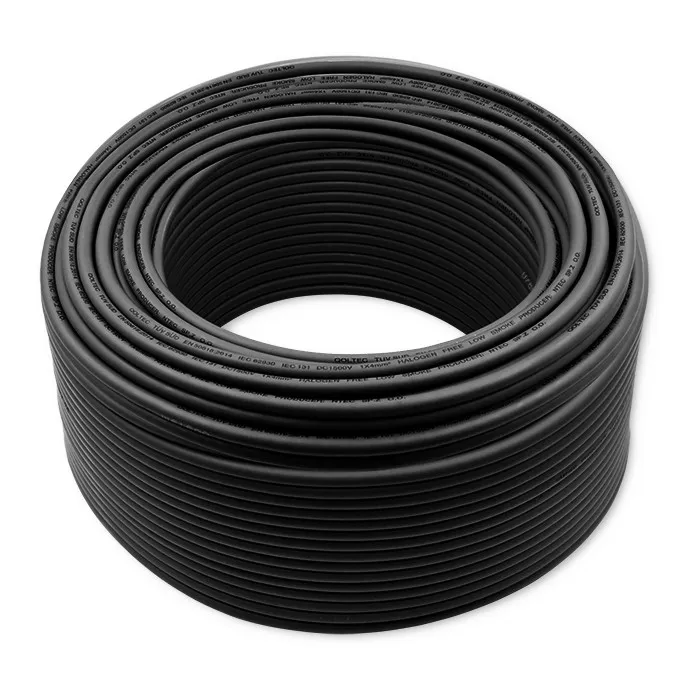

Cable length: 100 m
Colour: Black
Type: H1Z2Z2-K
Standard: EN 50618/IEC62930
Power: 82.5 kW
Rated voltage: 1500 V
Rated current: 55 A
Structure of the conductor: single wire made of tinned soft copper wires
Conductor cross-sectional area: 4mm²
Insulating material: Irradiation cross-linked polyolefin, Halogen-free
Coating: Irradiation cross-linked polyolefin, Halogen-free
Conductor thickness: 2.58 mm
Thickness of the insulation coating: 0.7 mm
External shell thickness: 0.8 mm
Resistance to pressure: AC-6.5KV/5min
Fire resistance class: Eca
Flame resistance: IEC 60332-1-2
Ozone resistance: IEC 60811-403
UV resistance: 720h
Temperature resistance: -40˚C ~ +90˚C
Maximum conductor temperature: 120°C
Designed lifespan: 25 years
Cable length: 100 m
Colour: Black
-
