SONOFF MINI Extreme Matter Over WiFi Dimmer Switch
SKU:MINI-DIM
Manufacturer:SONOFF
New
The SONOFF MINI-DIM (MINI Extreme series) is an ultra-compact Wi-Fi smart dimmer designed for hidden installation within standard mounting boxes. This device transforms traditional light switches into smart controllers, enabling smooth brightness adjustment and modern automation without changing your existing hardware.
Key Features

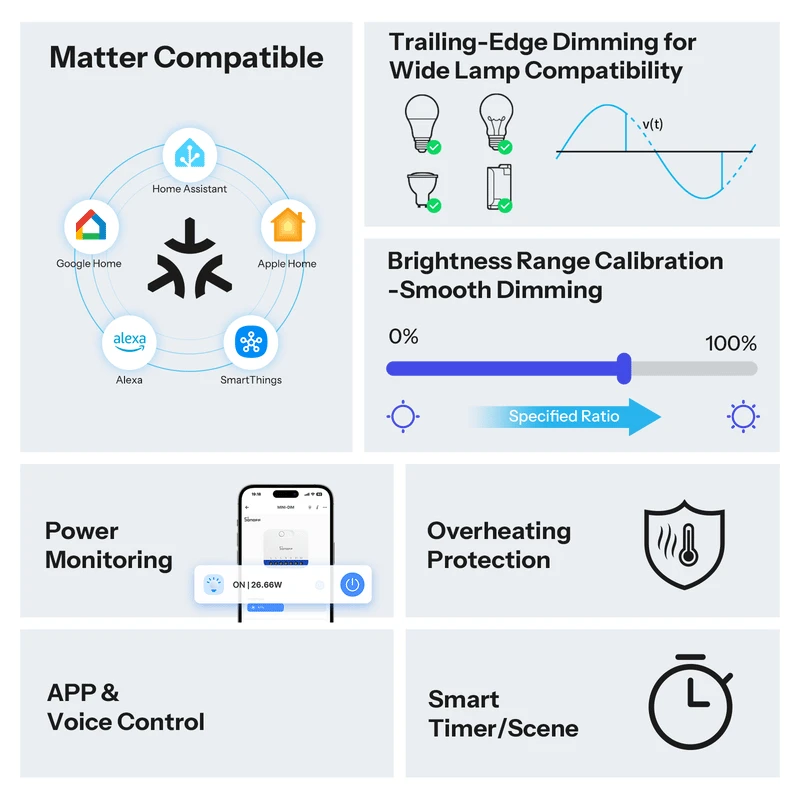

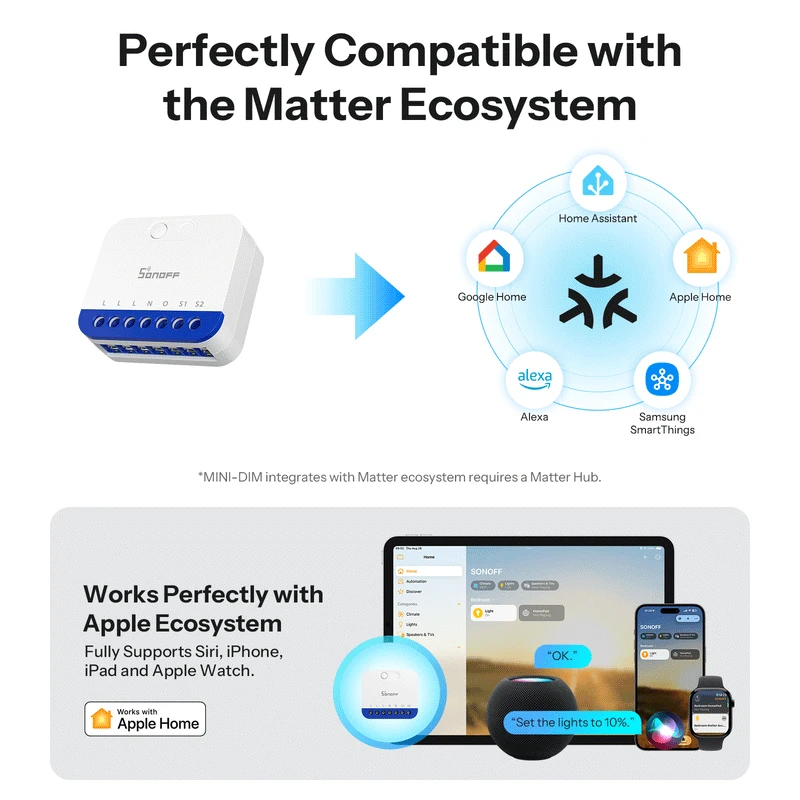

- Matter Protocol Support: Ensures seamless, local integration and cross-platform automation with major ecosystems, including Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings.
- Versatile Load Compatibility: Supports dimmable LED lamps up to 200 VA and incandescent bulbs up to 400 W.
- Optimized Performance: Features automatic calibration to prevent flickering and ensure smooth dimming transitions.
- Energy Management: Provides real-time power monitoring to track electricity usage accurately.
- Integrated Safety: Equipped with built-in overheat protection to ensure reliable operation in confined spaces.
Applications

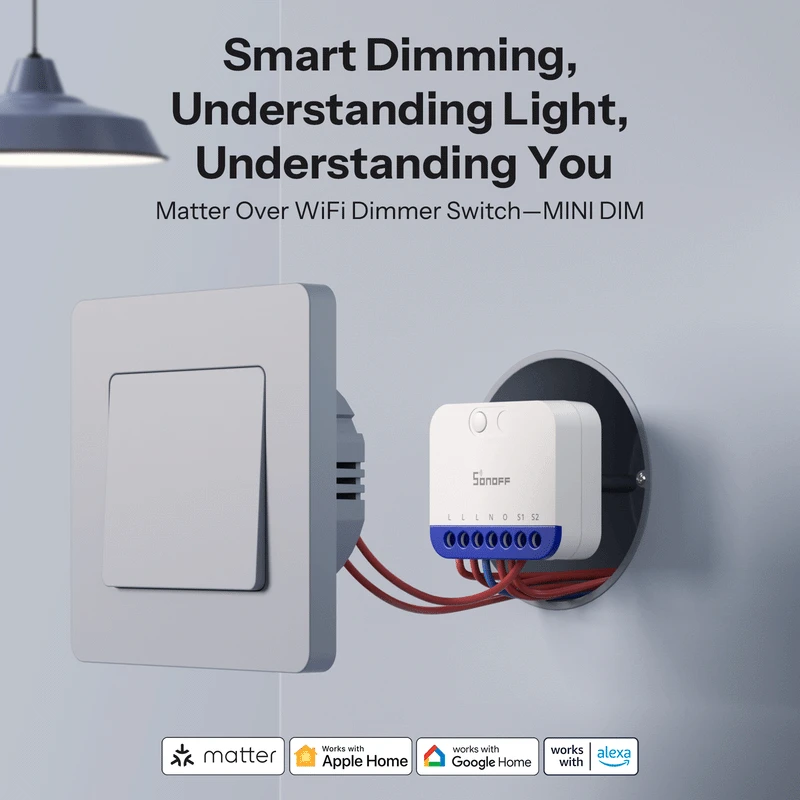

Its miniature form factor makes it ideal for retrofitting existing home lighting systems. By installing the module behind standard wall switches, users can maintain their interior aesthetic while gaining advanced smart home functionality and remote control via Wi-Fi.
Key Features
- Matter Protocol Support: Ensures seamless, local integration and cross-platform automation with major ecosystems, including Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings.
- Versatile Load Compatibility: Supports dimmable LED lamps up to 200 VA and incandescent bulbs up to 400 W.
- Optimized Performance: Features automatic calibration to prevent flickering and ensure smooth dimming transitions.
- Energy Management: Provides real-time power monitoring to track electricity usage accurately.
- Integrated Safety: Equipped with built-in overheat protection to ensure reliable operation in confined spaces.
Applications
Its miniature form factor makes it ideal for retrofitting existing home lighting systems. By installing the module behind standard wall switches, users can maintain their interior aesthetic while gaining advanced smart home functionality and remote control via Wi-Fi.
Casing Material: PC V0 (Flame-retardant)
Certifications: CE, RoHS, FCC
Dimensions: 45 x 39.4 x 16.8 mm
Dimming Type: Trailing-edge

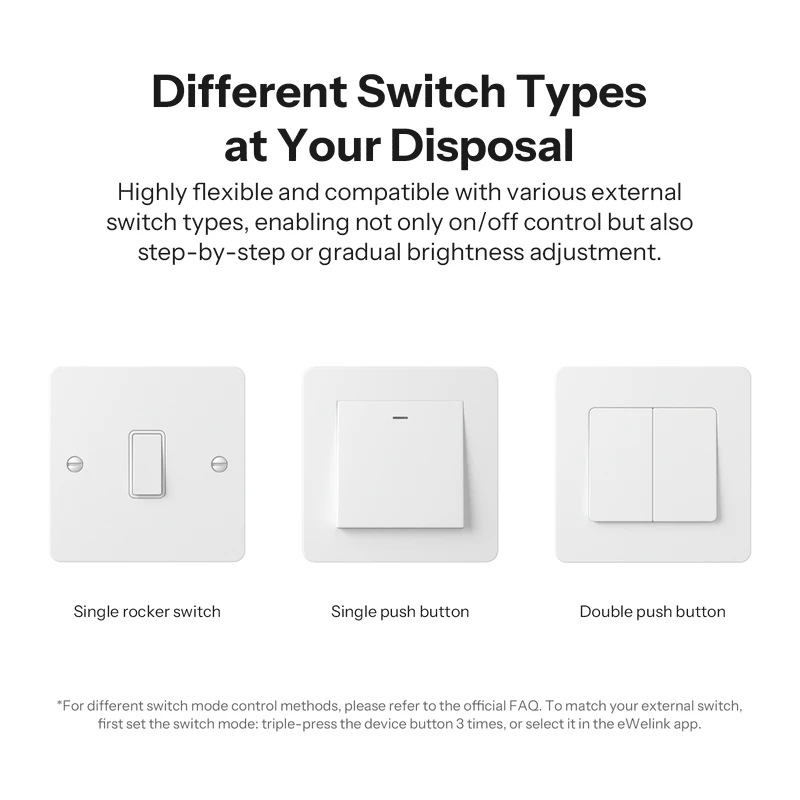

External Switch Support: Rocker switch, Push-button (Momentary)
Features: Overheat protection, Power monitoring, Auto/Manual brightness calibration
Input Voltage: 220-240V~ 50Hz
MCU: ESP32-C3
Model: MINI-DIM
Net Weight: 24.5g
Operating Humidity: 5-95% RH (Non-condensing)
Operating Temperature: -10°C to 40°C
Product Series: MINI Extreme
Product Type: Matter Over WiFi Dimmer Switch
Protocol Support: Matter, eWeLink
Rated Load: 400W Max (Resistive), 200VA (LED)
Wireless Connectivity: Wi-Fi IEEE 802.11b/g/n 2.4GHz
Certifications: CE, RoHS, FCC
Dimensions: 45 x 39.4 x 16.8 mm
Dimming Type: Trailing-edge
External Switch Support: Rocker switch, Push-button (Momentary)
Features: Overheat protection, Power monitoring, Auto/Manual brightness calibration
Input Voltage: 220-240V~ 50Hz
MCU: ESP32-C3
Model: MINI-DIM
Net Weight: 24.5g
Operating Humidity: 5-95% RH (Non-condensing)
Operating Temperature: -10°C to 40°C
Product Series: MINI Extreme
Product Type: Matter Over WiFi Dimmer Switch
Protocol Support: Matter, eWeLink
Rated Load: 400W Max (Resistive), 200VA (LED)
Wireless Connectivity: Wi-Fi IEEE 802.11b/g/n 2.4GHz
-
